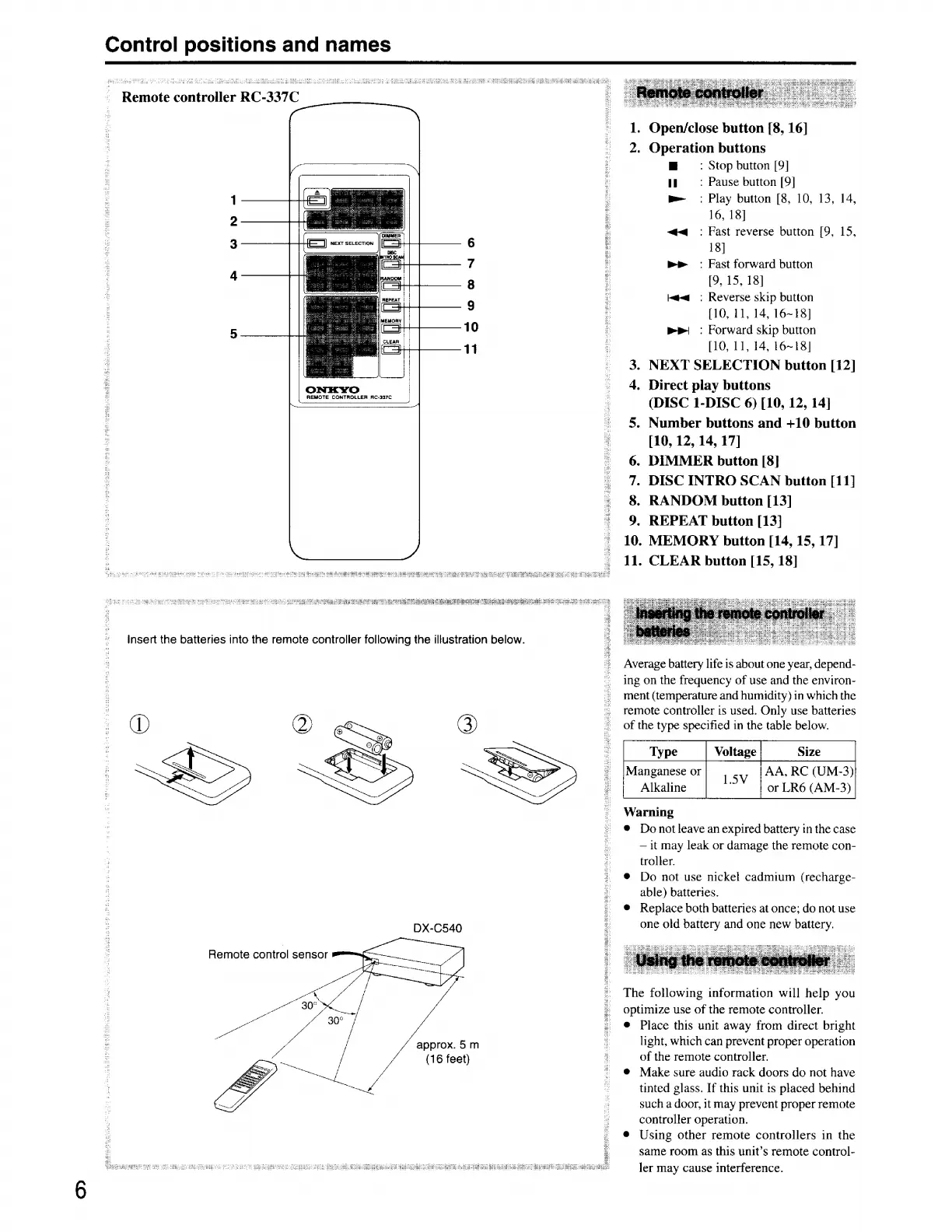

Control positions and names
Remote c
1. Open/close button [8, 16]
2. Operation buttons
| : Stop button [9]
TT - Pause button [9]
me = Play button [8, 10, 13, 14,
16, 18]
~<@<q ;: Fast reverse button [9, 15,
18]
be - Fast forward button
~1}-—af
DIMMER
i] NEXT SELECTION
[9, 15, 18]
: Reverse skip button
(10, 11, 14, 16~18]
mei. Forward skip button
11 : [10, 11, 14, 16~18]
3. NEXT SELECTION button [12]
4. Direct play buttons
(DISC 1-DISC 6) [10, 12, 14]
Number buttons and +10 button
[10, 12, 14, 17]
DIMMER button [8]
DISC INTRO SCAN button [11]
RANDOM button [13]
REPEAT button [13]
MEMORY button [14, 15, 17]
CLEAR button [15, 18]
ONEHK YO
REMOTE CONTROLLER AC-337C
insert the batteries into the remote controller following the illustration below.
Average battery life is about one year, depend-
ing on the frequency of use and the environ-
ment (temperature and humidity) in which the
remote controller is used. Only use batteries
of the type specified in the table below.
Manganese or AA, RC (UM-3)
Alkaline or LR6 (AM-3)
Warning
® Do not leave an expired battery in the case
— it may leak or damage the remote con-
troller.
® Do not use nickel cadmium (recharge-
able) batteries.
® Replace both batteries at once; do not use
one old battery and one new battery.
DX-C540
Remote control sensor
The following information will help you
optimize use of the remote controller.
@ Place this unit away from direct bright
approx. 5m light, which can prevent proper operation
(16 feet) ' of the remote controller.
' @ Make sure audio rack doors do not have
tinted glass. If this unit ts placed behind
such a door, it may prevent proper remote
controller operation.
e Using other remote controllers in the
same room as this unit’s remote control-
ler may cause interference.

Onkyo DX-C540 Specifications

Audio Specifications

sampling frequency	352.8 kHz
number of channels	2 (stereo)
frequency response	5 Hz - 20 kHz
total harmonic distortion	0.005% (at 1 kHz)
dynamic range	96 dB
signal to noise ratio	92 dB
channel separation	92 dB (at 1 kHz)
output level	2 volts r.m.s.

Power

power consumption	1 watts
power supply	120 V, 60 Hz, 230 V, 50 Hz

Weight and Dimensions

dimensions	435 x 131 x 433 mm (17-1/8" x 5-3/16" x 17-1/16")
weight	6.9 kg (15.2 lbs.)
