Onkyo HT-R500 Service Manual

S7616 S7615
S7614
JL7501B
STANDBY
SPA SPB
NCSW-7404
25137404
0
P251
P251
P253BP261B
P254
NCETC-7406
25137406
0
2
2
2
NASW-7404,Standby switch PC board
NAETC-7406,Front video PC board
U4
U6

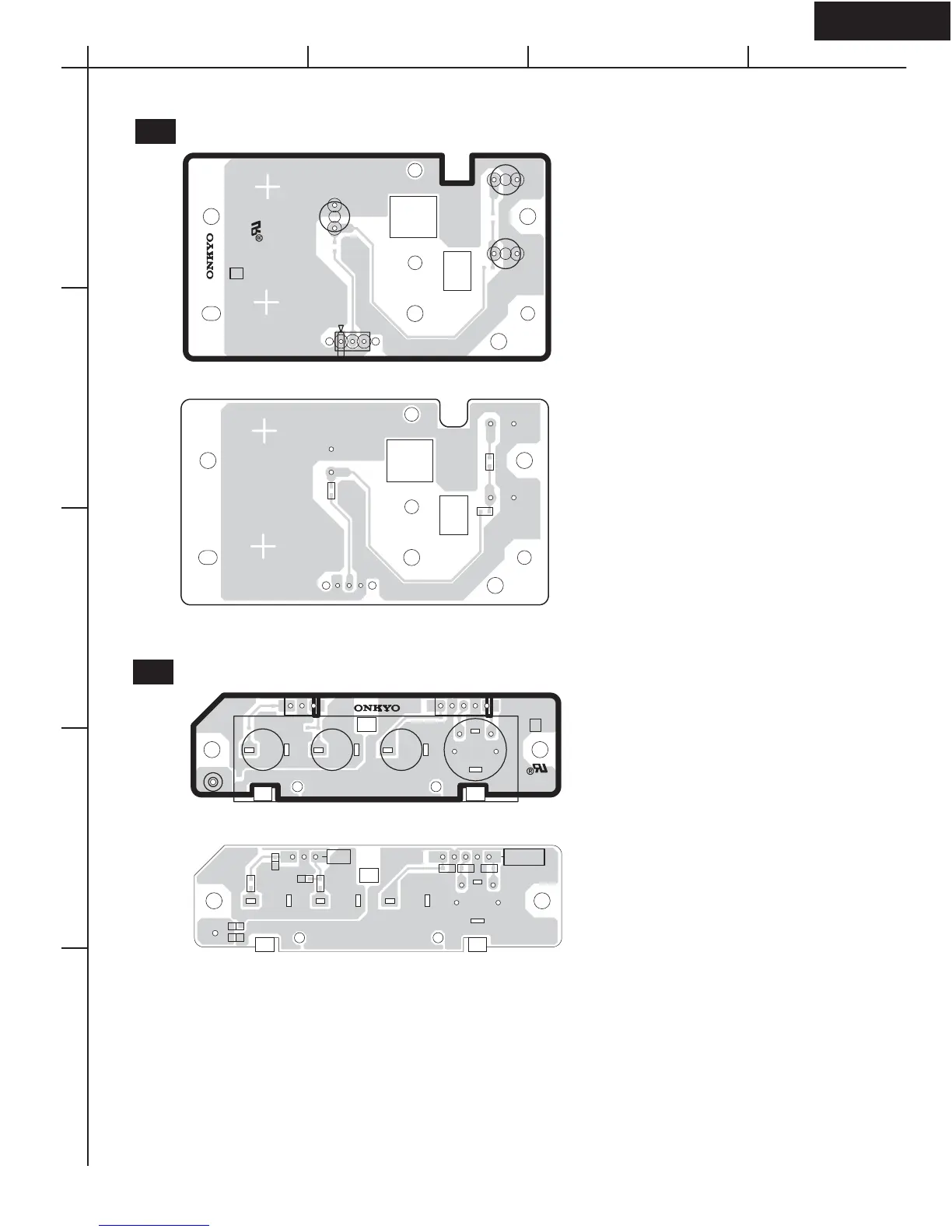

PRINTED CIRCUIT BOARD VIEW 6 FROM SOLDERING SIDE
Component side
Component side
Soldering side
Sodlering side
R251
R253
R252
R261 R262
C262
C261
C263
C253
V4C
GND GND
V4Y
V4
V4L
V4R
GND
R7613
R7614
R7615
HT-R500
A
1
2
3
4
5
BCD

Onkyo HT-R500 Specifications

Amplifier Section

continuous average power output (FTC)	100 watts per channel at 8 ohms
dynamic power output at 3 ohms	230 watts × 2
dynamic power output at 4 ohms	170 watts × 2
dynamic power output at 8 ohms	115 watts × 2
total harmonic distortion	0.08% at rated power
damping factor	60 at 8 ohms

Input and Output Impedance

digital input (optical 1, 2)	0.5 Vp-p, 75 ohms
digital input (coaxial)	0.5 Vp-p, 75 ohms
line (CD, VIDEO 1, 2, 3, TAPE)	200 mV, 50 kohms
multichannel input (DVD FRONT L/C/R, SURR L/R)	200 mV, 50 kohms
subwoofer input	36 mV, 50 kohms
rec out (TAPE, VIDEO 1)	200 mV, 470 ohms
pre out (subwoofer)	1 V, 470 ohms

Tuner Section

FM tuning range	87.5-108.0 MHz
FM usable sensitivity (mono)	11.2 dBf, 1.0 µV (75 ohms, IHF)
FM usable sensitivity (stereo)	17.2 dBf, 2.0 µV (75 ohms, IHF)
FM signal-to-noise ratio (mono)	76 dB, IHF
FM signal-to-noise ratio (stereo)	70 dB, IHF
AM tuning range	530-1, 710 kHz
AM usable sensitivity	30 µV
AM signal-to-noise ratio	40 dB

General

power supply	AC 120 V, 60 Hz
power consumption	5.5 A
dimensions (W × H × D)	17-1/8” × 5-7/8” × 14-13/16”
dimensions in mm (W × H × D)	435 × 150 × 376 mm
weight	21.4 lbs.
weight in kg	9.7 kg
