Onkyo HT-R540

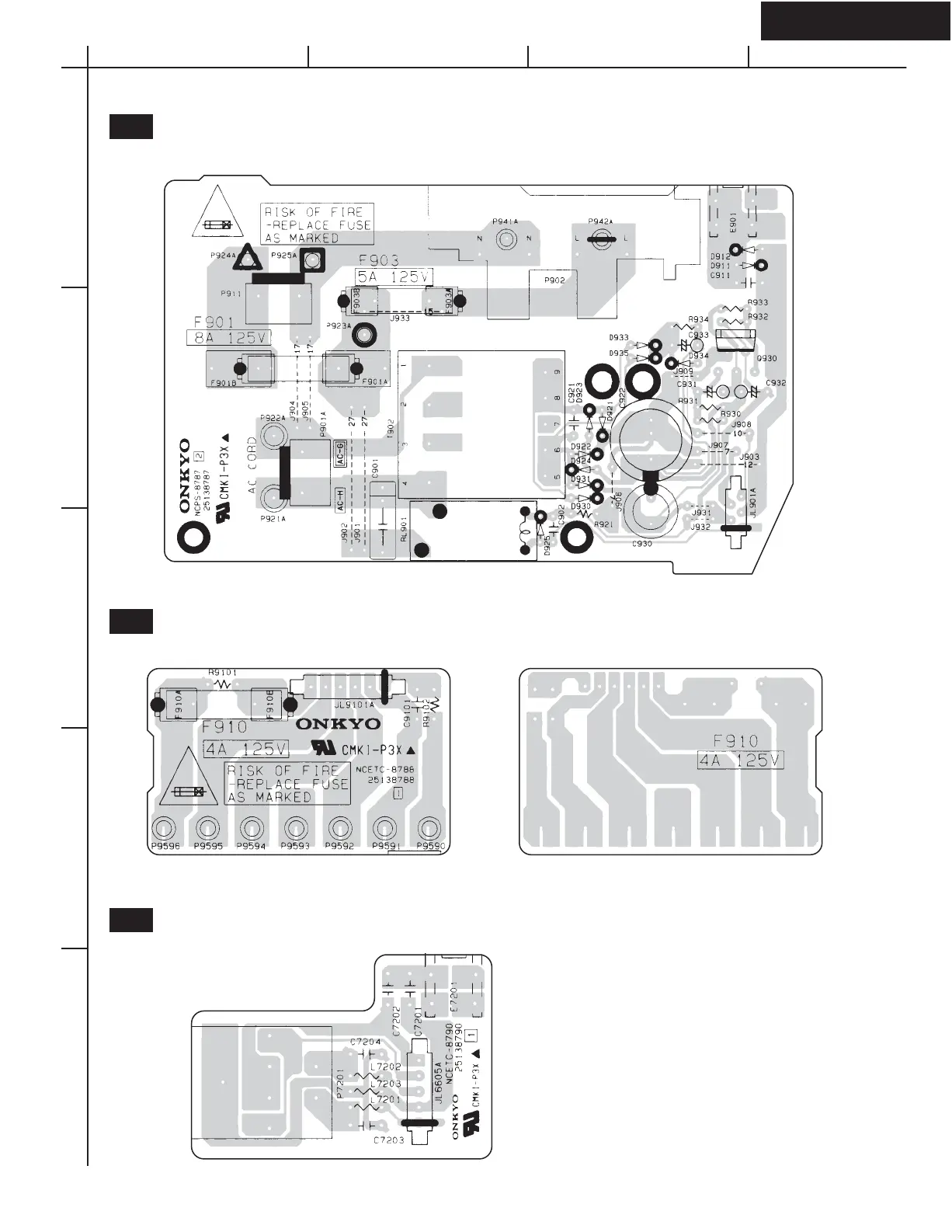

PRINTED CIRCUIT BOARD VIEWS-7
TX-SR504/504E/8450
U07
POWER SUPPLY PC BOARD (NAPS-8787)
Component side
U08
TRANS SEC. TERMINAL PC BOARD (NAETC-8788)
Component side Soldering side
U10
HEADPHONE JACK PC BOARD (NAETC-8790)
Component side
A
1
2
3
4
5
BCD
