Getting to Know the AV Receiver —Continued
A
DIGITAL IN OPTICAL 1, 2 and COAXIAL 1, 2
These optical and coaxial digital audio inputs are
for connecting components with optical or coaxial
digital audio outputs, such as CD and DVD players.
B
HDMI IN 1, 2, and OUT
These jacks are for connecting HDMI-compatible
components. Audio and video signals received by
the HDMI IN jacks pass through to the HDMI OUT
jack.
C
COMPONENT VIDEO
A DVD player, TV, or other component that sup-
ports component video can be connected here.
D
AM ANTENNA
These push terminals are for connecting an AM
antenna.
E
FM ANTENNA
This jack is for connecting an FM antenna.
F
MONITOR OUT
The S-Video or composite video output should be
connected to a video input on your TV or projector.
G
SIRIUS antenna (North American models
only)
This jack is for connecting a SIRIUS Satellite Radio
antenna (see the separate SIRIUS instructions).
H
XM antenna (North American models only)
This jack is for connecting an XM Passport System,
sold separately (see the separate XM instructions).
I
FRONT SPEAKERS A, SURROUND
SPEAKERS, CENTER SPEAKER, and
SURROUND BACK SPEAKERS
These terminal posts are for connecting speaker
set A.
J REMOTE CONTROL
This Remote Interactive jack can be connected
to the jack on another -capable Onkyo com-
ponent. To use , you must make an analog audio
connection (RCA) between the AV receiver and the
other component, even if they are connected digi-
tally.
K
CD IN
This analog audio input is for connecting a CD
player’s analog audio output.
L
TAPE IN/OUT
This analog audio input and output are for connect-
ing a recorder with an analog audio input and out-
put, such as a cassette deck, MD recorder, etc.
M
VCR/DVR IN/OUT and CBL/SAT IN
The VCR/DVR inputs and outputs can be used to
connect a VCR or DVR (digital video recorder).
The CBL/SAT inputs can be used to connect a
cable/satellite receiver, set-top box, etc.
N
DVD IN
These jacks can be used to connect a DVD player
with an analog multichannel audio output for SACD
and DVD-Audio playback.
O
SUBWOOFER PRE OUT
A powered subwoofer can be connected here.
P
FRONT SPEAKERS B
These push terminals are for connecting speaker
set B.

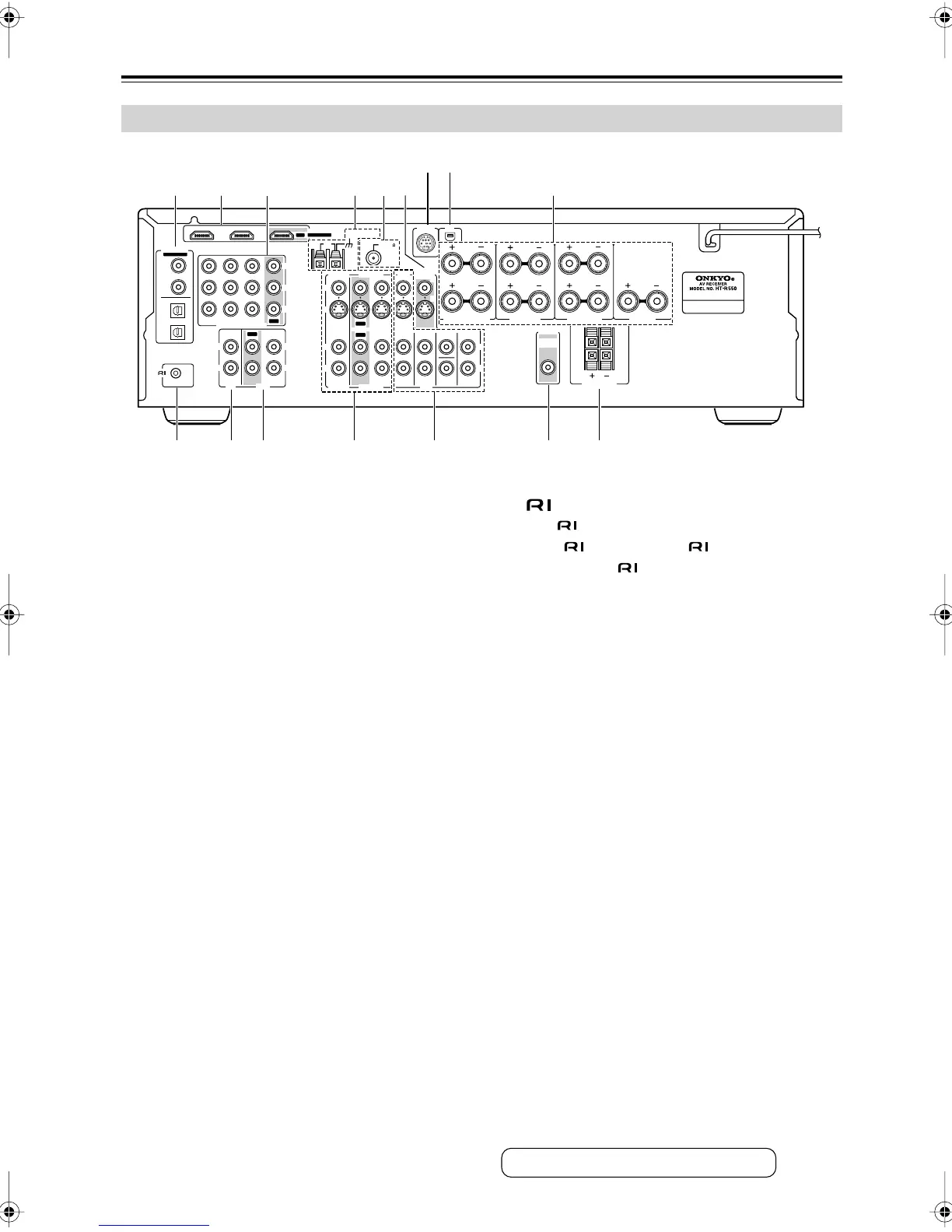

Rear Panel
OUT
OUT
CBL/SAT IN
IN IN
IN
IN
IN
IN IN
VCR/DVR IN DVD IN
OUT
COMPONENT VIDEO
Y
C
B/PB
CR/PR
IN 1IN 2
OUT
HDMI
ANTENNA
FM
AM
75
SUB
WOOFER
FRONT SURROUND SURR BACK CENTER
CD
RR
LL
TAPE
OUT
CBL/SAT
CBL/SAT
VCR/DVR
VCR/DVR
DVD
DVD
R
L
R
L
S
V
R
L
MONITOR
OUT
S
V
PRE OUT
SUB
WOOFER
FRONT
SPEAKERS B
REMOTE
CONTROL
L
R
L
R
XM
SIRIUS
SURROUND BACK
SPEAKERS
SURROUND
SPEAKERS
FRONT
SPEAKERS A
CENTER
SPEAKER
ASSIGNABLE
ASSIGNABLE
COAX-
IAL
OPTICAL
1
(DVD)
2
(CBL/SAT)
1
(VCR/DVR)
2
(CD)
DIGITAL IN
J K L M N O
1 2 53 6
P
9
7 8
4
(North American model only)
See pages 19–35 for hookup information.
