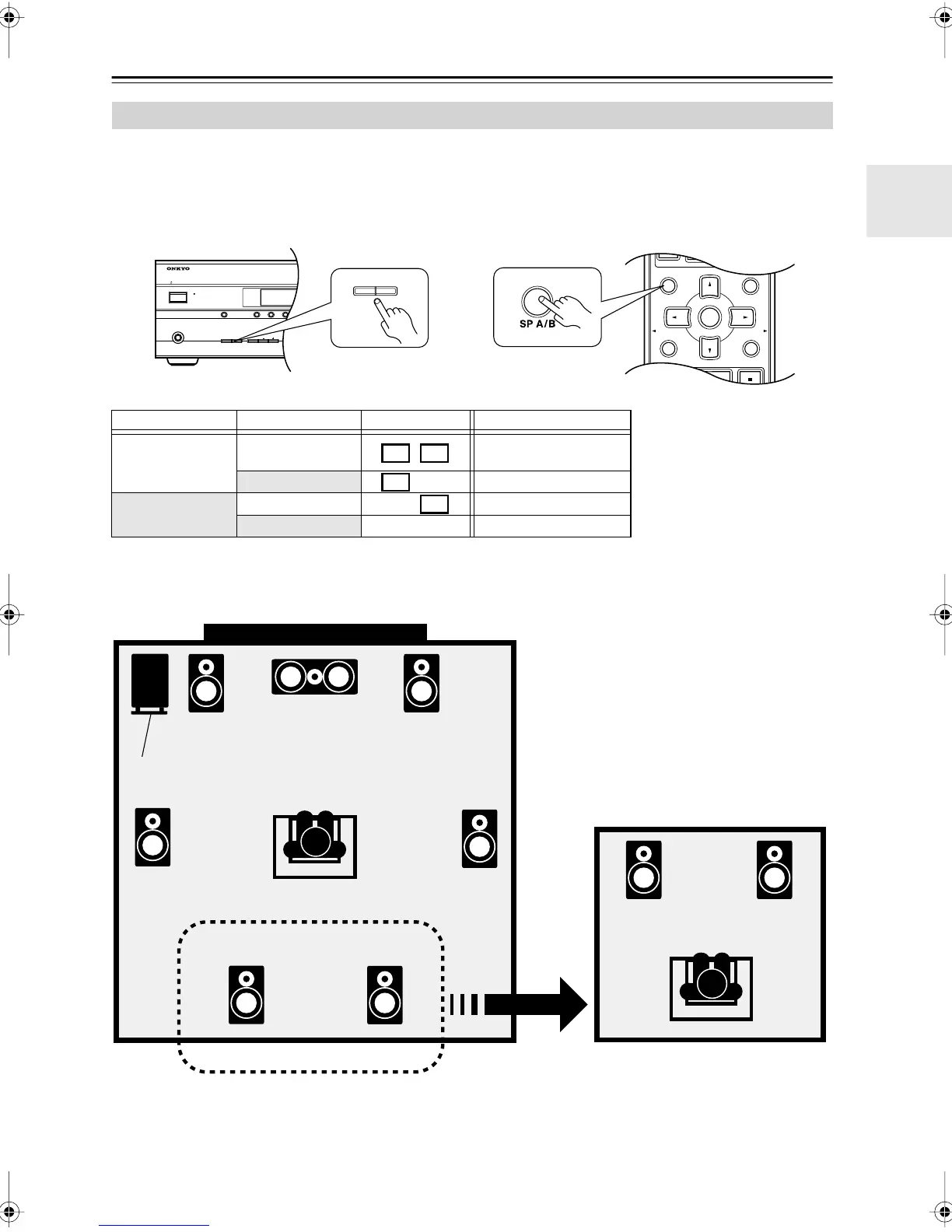

Enjoying Home Theater
You can use two sets of speakers with the AV receiver: speaker set A and speaker set B .
Speaker set A (included speakers) should be used in your main listening room for up to 7.1-channel playback.
*While speaker set B is on, speaker set A is reduced to 5.1-channel playback.
Speaker set B (not included) can be used in another room and offers 2-channel stereo playback.
*Only analog input sources are output by speaker set B.
Speaker Sets A and B
MUTING
PREVIOUS
MENU
GUIDE
TOP MENU
SP A / B
SETUP RETURN
PLAYLIST/CAT PLAYLIST/CAT
TV
VOL
VOL
INPUT
ENTER
CH
DISC
ALBUM
MASTER VOLUME
VIDEO
STANDBY
TONE DISPLAYSTEREO DIMMER MEMORY DIGITAL INPUT TUNING MODE
ABSPEAKERS
TUNERTAPE
AUXCBL/SATVCR/DVR
DVD
MULTI CH C
D
SETUP ENTER
SETUP MIC
RETURN
CLEAR
LISTENING MODE
AUDIOLR
AUX INPUT
STANDBY/ON
PHONES
TUNING
PRESET
AB
SPEAKERS
or
Speaker set A Speaker set B Indicator Output
On
On
Set A: 5.1 channels
Set B: 2 channels
Off Set A: 7.1 channels
Off
On Set B: 2 channels
Off No sound
A B
A
B
Surround back
right speaker
Front right
speaker
Center speaker
Surround
left
speaker
Subwoofer
Sub Room (speaker set B)
* While speaker set B is on, the surround
back speakers output no sound.
Main Room (speaker set A, the supplied speakers)
* Digital input sources are not output
by speaker set B. Connect your
source component with an analog
connection.
Surround
right
speaker
Front left
speaker
Surround back
left speaker
