Onkyo HT-R558B - Exploded Views - Heat Sink and Rear Panel

HT-R558
HT-R558

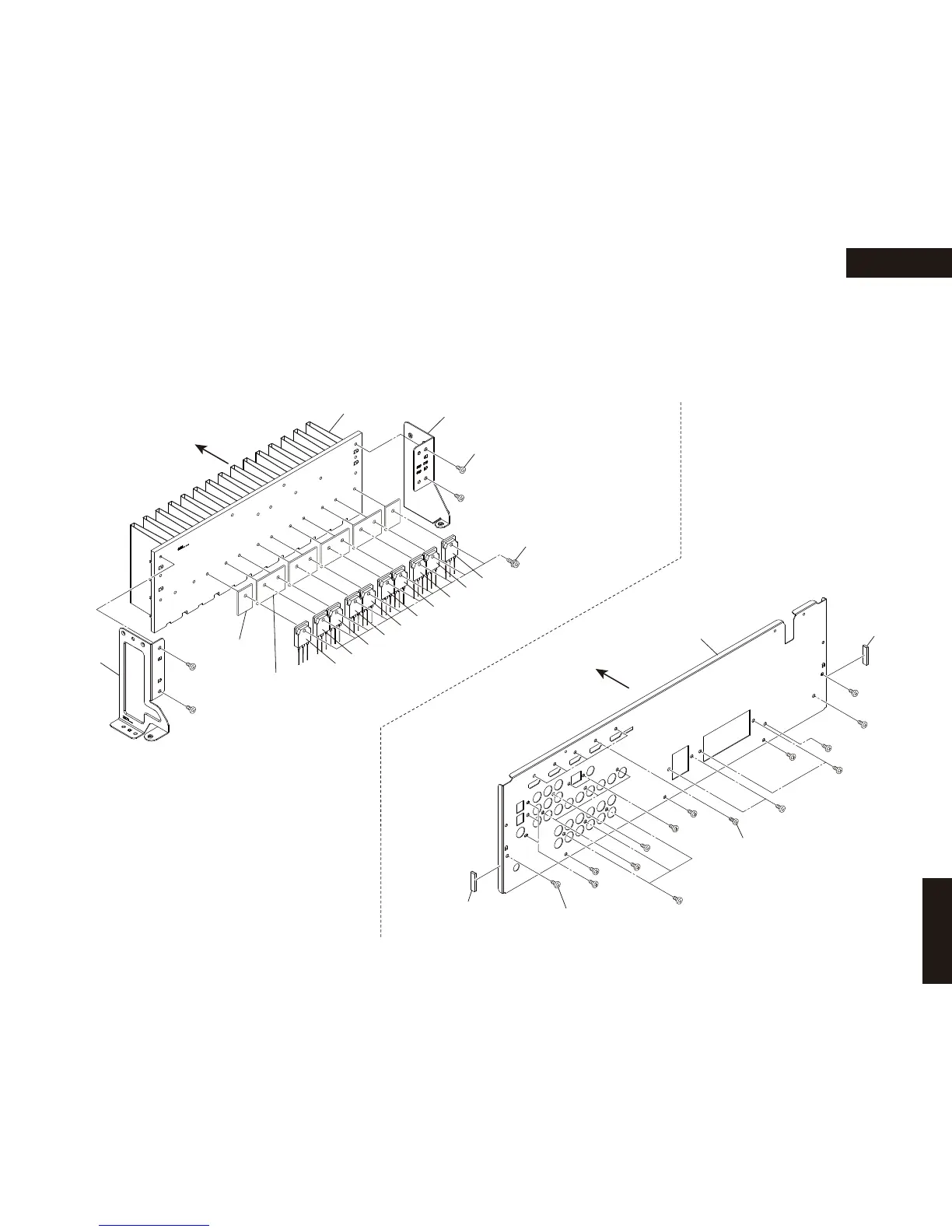

EXPLODED VIEWS-2
HEAT SINK / REAR PANEL SECTION
A102
A102
A101
A105
x 24 pcs.
A036
x 4 pcs.
A030
A032
A034
Q6062
Q6051
Q6063
Q6064
Q6054
Q6061
Q6053
Q6052
Q6060
Q6050
A050
x 10 pcs.
A103
x 5 pcs.
Q6050B
x 4 pcs.
Q6050A
x 2 pcs.
Front
Front
REAR PANEL SECTION
HEAT SINK SECTION
