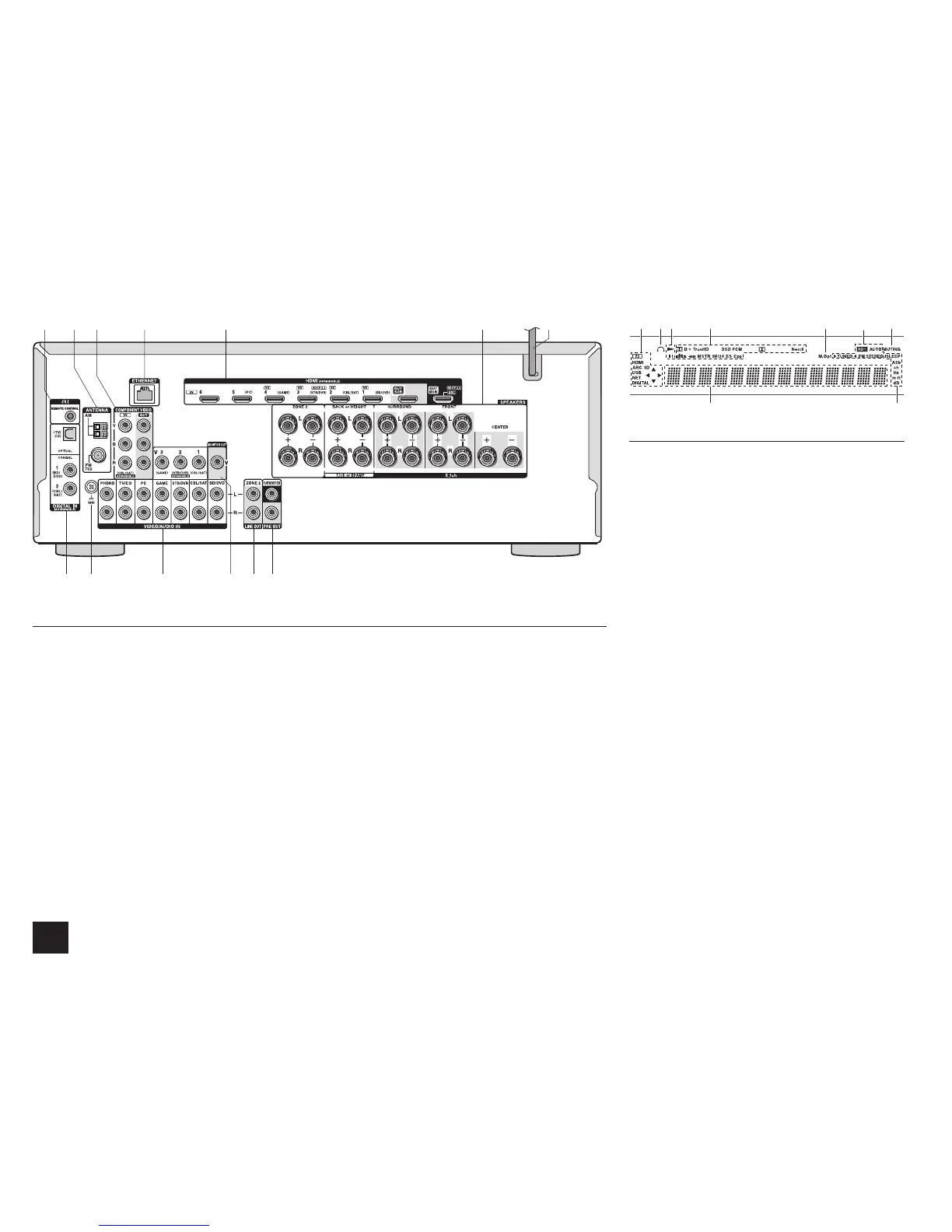

Rear Panel
1
RI REMOTE CONTROL jack: An Onkyo product with RI
jack can be connected and synchronized with this unit.
2
#06'00##/(/ŝVGTOKPCN: The supplied
antennas are connected.
3
COMPONENT VIDEO IN/OUT jacks: Component video
input/output jacks
4
ETHERNET port: Used for Ethernet connection
5
HDMI IN/OUT jacks: Digital video signals and audio
signals are transmitted between the unit and the
connected devices.
6
SPEAKERS terminals: Speakers are connected. To
use the Multi-zone function, connect the speakers in the
separate room to the SPEAKERS ZONE2 terminals.
7
Power cord
8
DIGITAL IN COAXIAL/OPTICAL jacks:
Digital audio
signals are input.
9
GND terminal: The ground wire of the turntable is
connected.
F
Composite video and analog audio jacks: Analog
video signals and audio signals are input.
G
MONITOR OUT V jack: Video signals are output to the
connected monitor or TV via a composite video cable.
H
LINE OUT ZONE 2 jacks: Audio output jacks connected
to the integrated amplifier for multi-zone playback in a
separate room.
I
PRE OUT SUBWOOFER jacks: A subwoofer with built-
in amplifier is connected.
14 623 75
98
Display
1
Lights in the following conditions. "Z2": ZONE 2 output
KUQP|*&/+*&/+UKIPCNUCTGKPRWVCPF*&/+KPRWV
UGNGEVQTKUUGNGEVGF|#4%#WFKQUKIPCNUCTGKPRWV
from ARC compatible TV and TV/CD input selector is
UGNGEVGF|&+PRWVUKIPCNUCTG&|75$
¼
): "USB"
KPRWVKUUGNGEVGFCPF75$UVQTCIGFGXKEGKUEQPPGEVGF|
"NET" (
¼
): "NET" input is selected and the unit is
EQPPGEVGFVQVJGPGVYQTM|&+)+6#.&KIKVCNUKIPCNUCTG
KPRWVCPFVJGFKIKVCNKPRWVUGNGEVQTKUUGNGEVGF|%WTUQT
indicators: NET or USB is controlled.
¼
"USB" and "NET" will flash if the connection is not correct.
2
Stays lit when headphones are connected.
3
Lights when NET or USB is controlled.
4
Lights according to the type of input digital signals and
the listening mode.
5
Stays lit when Music Optimizer is enabled.
6
Lights in the following conditions. "AUTO": Tuning mode is
auto. / "
f
TUNED
e
": Receiving AM/FM radio.
fe
flashes
while tuning is automatically performed. / "FM STEREO":
Receiving FM stereo. / "RDS" (European model):
Receiving RDS broadcasting.
7
"MUTING": Flashes when muting is on.
8
Lights in the following conditions. "SLEEP": Sleep timer
has been set. / "ASb" (Auto Standby): Auto Standby
is on. / "ch": Channel is being set. / "Hz": Crossover
frequencies are being set. / "m/ft": Speaker distances
are being set. / "dB": Speaker volume is being set.
9
Displays various information of the input signals.
Pressing DISPLAY displays the type of input digital
signals and the listening mode.
