4
> Before start > Hookup > Setup > Playback > Part Names > Advanced Manual
Troubleshooting | Appendix
1 Speaker cable, 2 Subwoofer cable

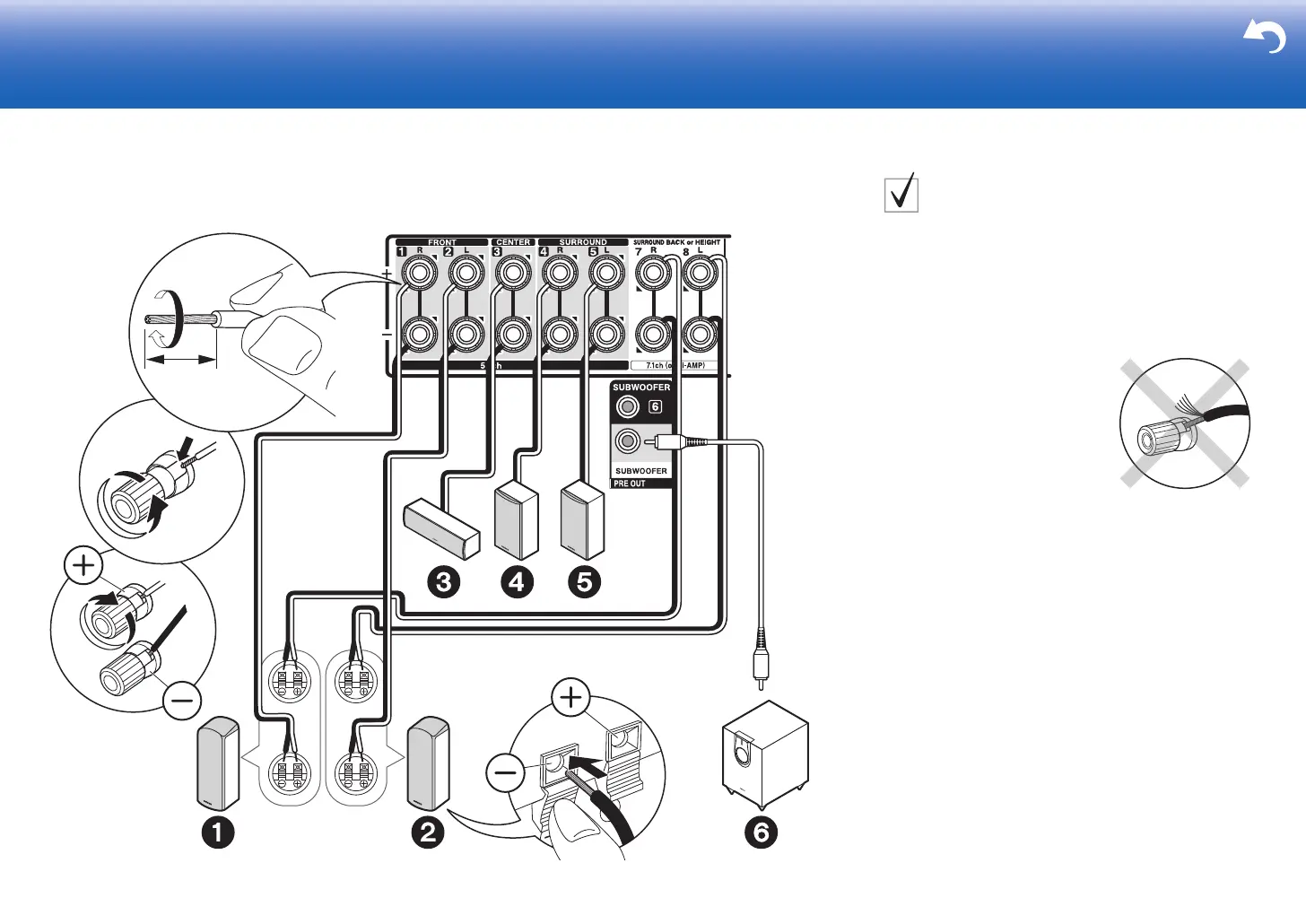

Connections for 5.1.2-
Channel System
Connect 123456. 2 speaker cables are required to
connect each of speakers 1 and 2. Use one speaker
cable for the other speakers' connection. Up to two
powered subwoofers can be connected. The same signal
is output from each of the SUBWOOFER jacks.
Make sure the exposed wires of the speakers do not stick out of
the speaker terminals when connecting. If the exposed wires of
the speakers touch the rear panel or the + and – wires touch each
other, the protection circuit will be activated.
To Next Page
