Connections
Connecting the AV Receiver
Connecting the Speaker Cables

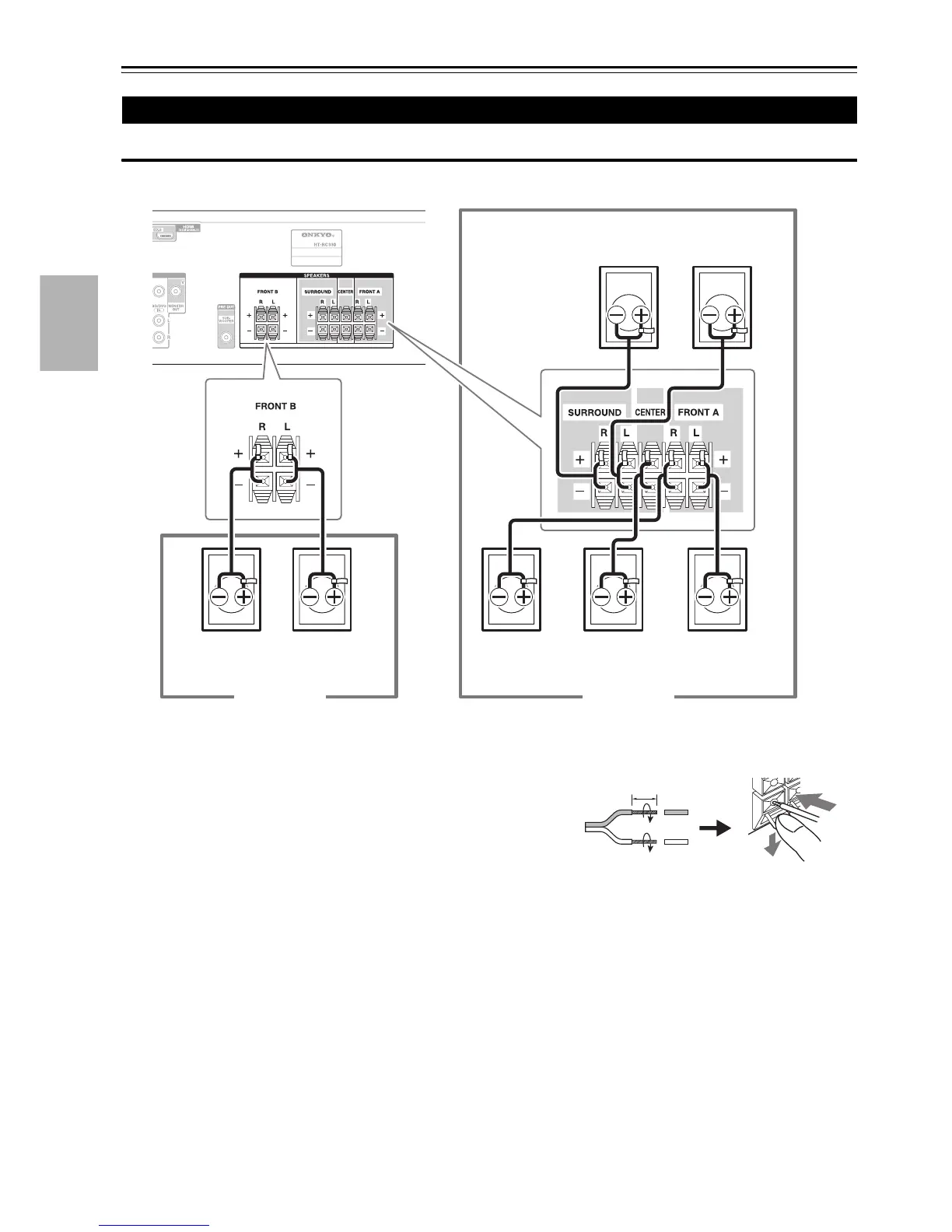

The following illustration shows which speaker should be connected to each pair of terminals.
■ Push-type speaker terminals
Strip 3/8" to 1/2" (10 to 12 mm) of insulation from the ends of the
speaker cables, and twist the bare wires tightly, as shown.
Connecting Your Speakers
Surround
right
Surround
left
Front B right Front B left Front A leftFront A right Center
Speakers ASpeakers B
3/8" to 1/2" (10 to 12 mm)
To Next Page
