Front & Rear Panels
For detailed information, see the pages in parentheses.
a 8ON/STANDBY button (19)
b ZONE 2 and ZONE 3 buttons (44, 69)
c Remote control sensor (4)
d Display (8)
e LISTENING MODE buttons (35)
f DIMMER button (43)
g MEMORY button (31)
h TUNING MODE button (30)
i SETUP button (48)
j TUNING q/w (30), PRESET e/r (31), cursor and
ENTER buttons
k RETURN button
l MASTER VOLUME control and indicator (22)
m MUSIC OPTIMIZER button and indicator (44, 47)
n PHONES jack (44)
o AUX INPUT HDMI/MHL jack (15)
p TONE and Tone Level buttons (46)
q Input selector buttons (22)
r DISPLAY button (43)
s VIDEO jack (16)
t USB port (16)
u SETUP MIC jack (33)
v HYBRID STANDBY indicator (49)

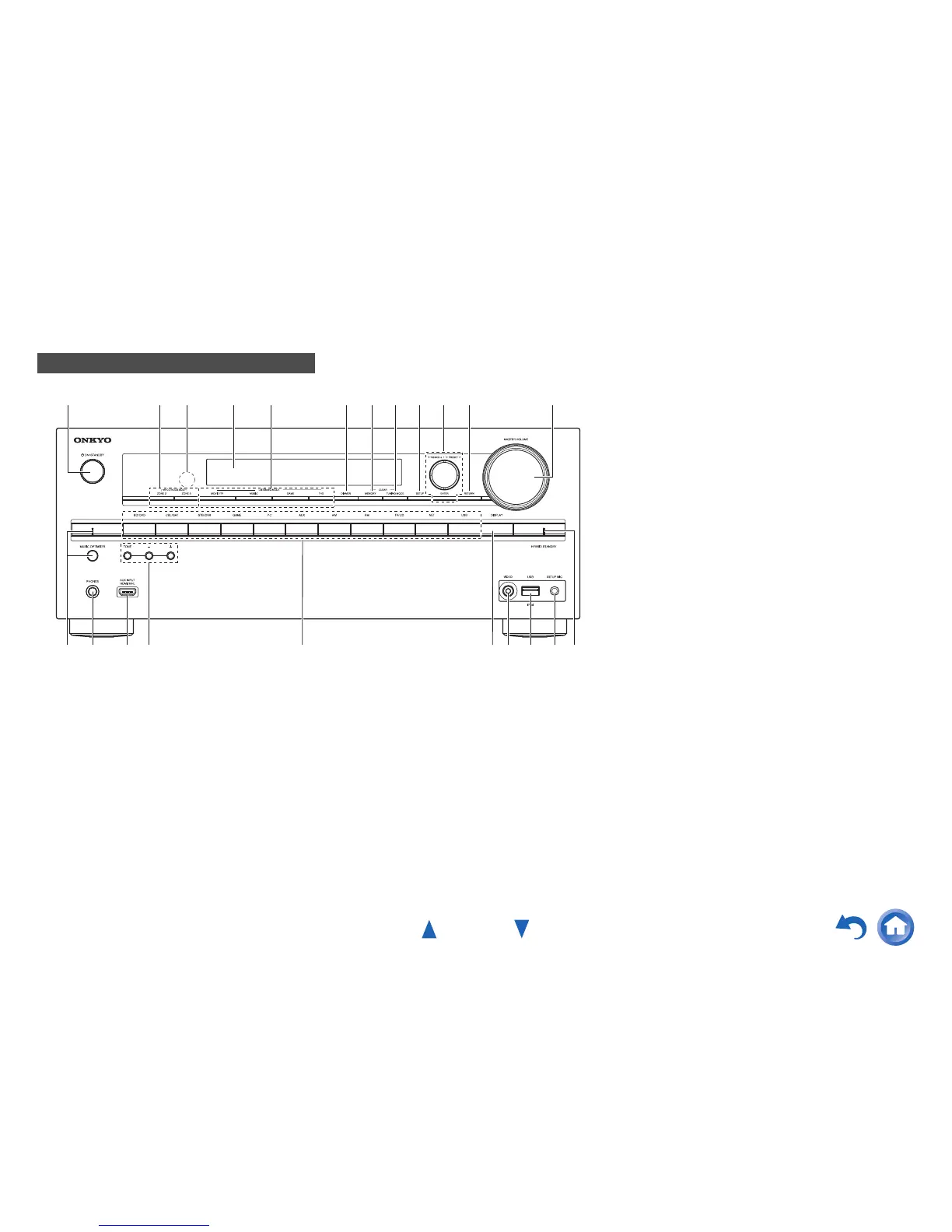

Front Panel
a c ed f ghij k lb
q
r t
n pom
s u
v
To Next Page
