Front & Rear Panels
For detailed information, see the pages in parentheses.
a 8ON/STANDBY button (20)
b HDMI THRU indicator (45)
c SPEAKERS A and B buttons (33)
d Remote control sensor (5)
e LISTENING MODE buttons (28)
f Display (9)
g DIMMER button (North American and Brazilian
models) (34)
h MEMORY button (26)
i TUNING MODE button (25)
j DISPLAY button (34)
k SETUP button (37)
l TUNING q/w, PRESET e/r (25), cursor and
ENTER buttons
m RETURN button
n MASTER VOLUME control (21)
o MUSIC OPTIMIZER button (35, 47)
p PHONES jack (36)
q TONE and Level buttons (46)
r Input selector buttons (21)
s AUX INPUT AUDIO and VIDEO jacks (17)
t USB port (17)
u RT/PTY/TP button (Asian models) (26)

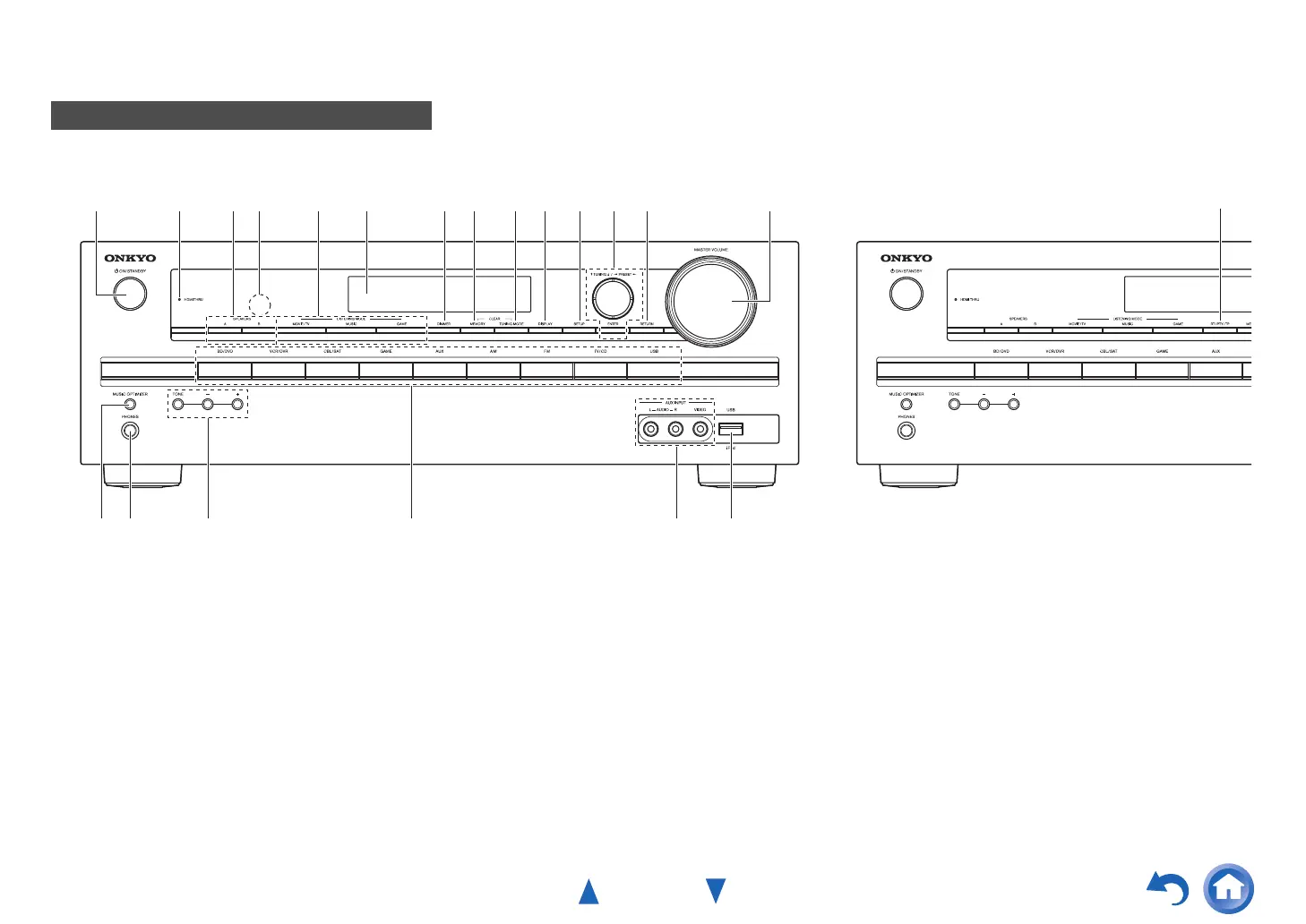

Front Panel
(North American and Brazilian models) (Asian models)
a
r s
t
b c
d
e gf h ijklm n
p
qo
u
