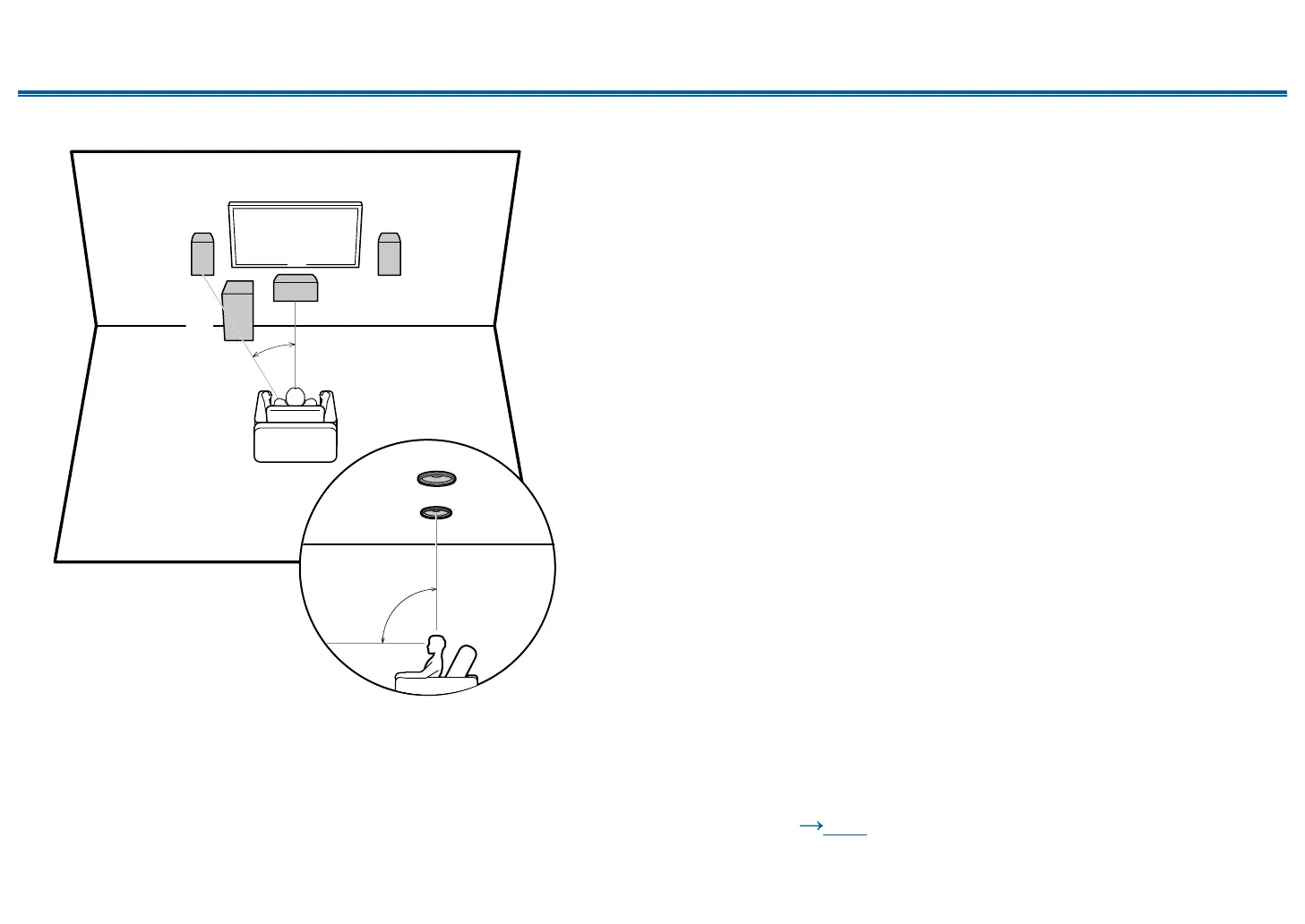

❏ Ceiling Speakers Installation Example
a
12
6
5
*
*
a: 22° to 30°, b: 65° to 100°
This is a 3.1-channel system consisting of inclueded front speakers, a center
speaker, and a subwoofer, with the addition of top middle speakers sold
separately, a type of height speaker. Installing the height speakers will enrich
the sound eld feeling in the upper space. Fit top middle speakers on the ceiling
directly above the listening position. The distance between each pair should
match the distance between the two front speakers.
• Dolby Laboratories recommends the setups of these types of height speakers
to obtain the best Dolby Atmos eect.
1,2 Front Speakers
3,4 Top Middle Speakers*
5 Center Speaker
6 Subwoofer
* Optional items
❏ Speaker Layouts and Selectable Listening
Modes ( p54)
