Getting to Know the AV Receiver

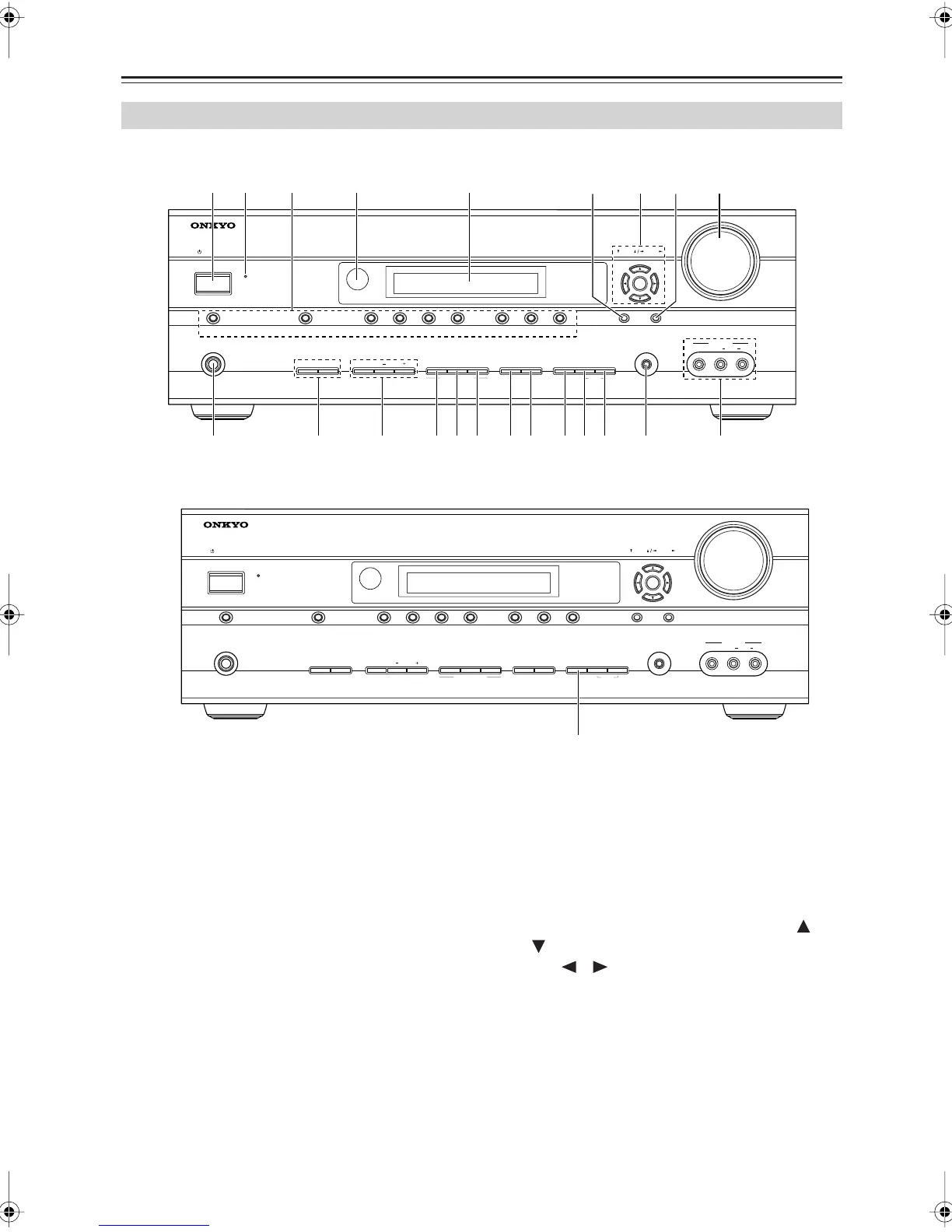

The actual front panel has various logos printed on it. They are not shown here for clarity.

The page numbers in parentheses show where you can ﬁnd the main explanation for each item.

ON/STANDBY button (41)

Sets the AV receiver to On or Standby.

STANDBY indicator (41)

Lights up when the AV receiver is on Standby and

ﬂashes while a signal is being received from the

remote controller.

Input selector buttons (47)

Select the following input sources: DVD,

VCR/DVR, CBL/SAT, AUX, TAPE, TUNER, CD,

DOCK.

The [MULTI CH] button selects the multichannel

DVD input.

Remote-control sensor (20)

Receives control signals from the remote controller.

Display

See “Display” on page 13.

SETUP button

Opens and closes the setup menus.

TUNING, PRESET, Arrow, and ENTER

buttons

When AM or FM is selected, the TUNING [ ]

[] buttons are used for radio tuning, and the PRE-

SET [ ] [ ] buttons are used to select radio pre-

sets (see page 54). With the setup menus, they work

as arrow buttons and are used to select and set

items. The ENTER button is also used with the

setup menus.

RETURN button

Selects the previously displayed setup menu.

Front Panel

ON/STANDBY

STANDBY

SPEAKERS

TONE

MOVIE/TV MUSIC GAME

DISPLAY DIMMER MEMORY

CLEAR

DIGITAL INPUT TUNING MODE

PHONES

MULTI CH

DOCK

DVD VCR/DVR CBL/SAT AUX TAPE TUNER CD

SETUP

SETUP MIC

VIDEO

L AUDIO R

AUX INPUT

ENTER

RETURN

TUNING PRESET

MASTER VOLUME

AV RECEIVER

HT-R560

LISTENING MODE

9876

4 51 2

L VMN O PQ RST U

Other models

North American model
