For detailed information, see the pages in parentheses.
A
STANDBY/ON indicator
Red: Subwoofer in standby mode
Blue: Subwoofer on
With the Auto Standby function, the SKW-560
automatically turns on when an input signal is
detected in Standby mode. When there’s no input
signal for a while, the SKW-560 automatically
enters Standby mode.
B
OUTPUT LEVEL control (47)
This control is used to adjust the volume of the sub-
woofer.
C
LINE INPUT (23)
This RCA input should be connected to the sub-
woofer pre out on the AV receiver with supplied
RCA cable.
Note:
The Auto Standby function turns the subwoofer on when
the input signal exceeds a certain level. If the Auto
Standby function does not work reliably, try slightly
increasing or decreasing the subwoofer output level on
the AV receiver (page 80).

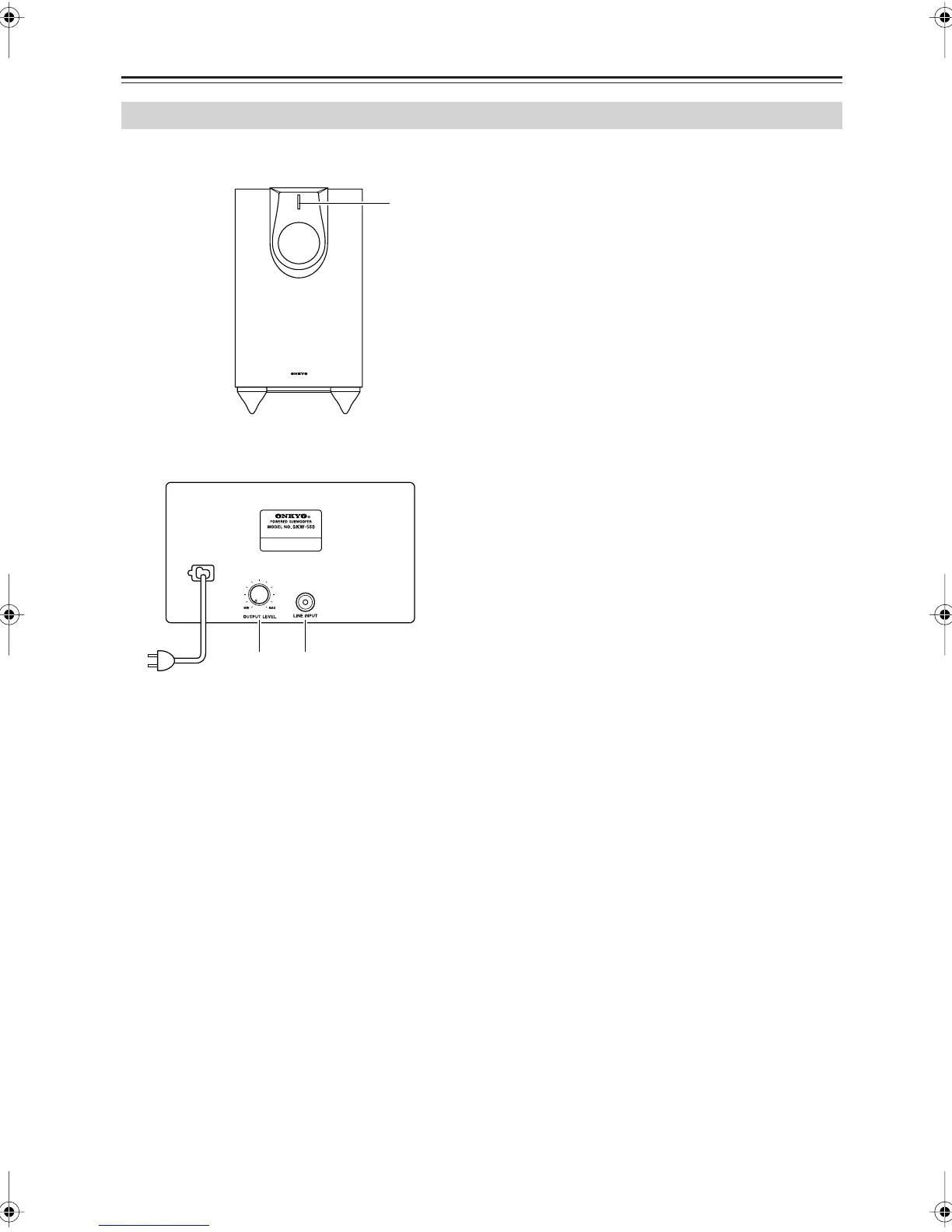

Subwoofer (SKW-560)
1
23
■ Rear
To AC outlet
■ Front
