Speaker Installation

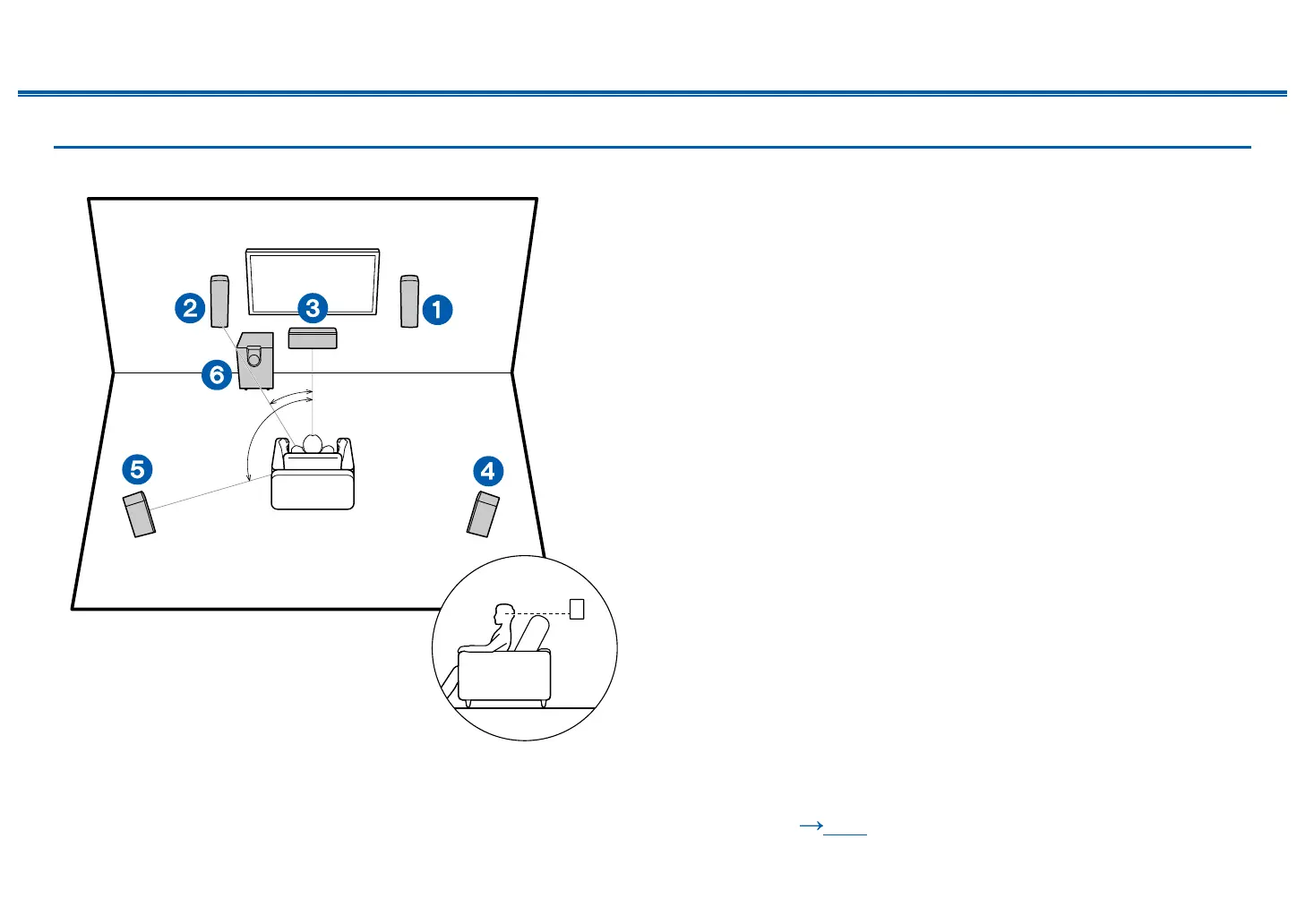

 5.1 Channel System
a
b
a: 22° to 30°, b: 120°
Front speakers output the front stereo sound, and a center speaker outputs
the sound of the center of the screen, such as dialogs and vocals. Surround
speakers create the back sound eld. Powered subwoofer reproduces the bass
sound, and creates the rich sound eld.
The front speakers should be positioned at ear height while the surround
speakers should be positioned just above ear height. The center speaker
should be set up facing the listening position at an angle. Placing the powered
subwoofer between the center speaker and the front speaker gives you a natural
sound even when playing music sources.
1,2 Front Speakers*
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
* The terminals for the height speakers are not used when the supplied Front
& Height Speakers are to be used as front speakers to build a 5.1 Channel
System.
 Speaker Layouts and Selectable Listening
Modes ( p62)

Onkyo HT-S5910 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
4Ω speaker support	No
Audio output channels	5.1.2 channels
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	160 W
Power output per channel (20-20KHz@8 Ohm)	115 W
Display	LCD
Product color	Black
Audio decoders	Dolby Atmos
Damping factor	60
Amplifier output power	925 W
HDMI in	4
Composite video in	3
Digital audio coaxial in	1
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	0
Audio (L/R) out	7
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Supported radio bands	AM, FM
AC input voltage	120 V
AC input frequency	60 Hz

Weight and Dimensions

Depth	328 mm
Width	453 mm
Height	160 mm
Weight	7800 g
