7.1 Channel System
a
b
c
a: 22° to 30°, b: 90° to 110°, c: 135° to 150°

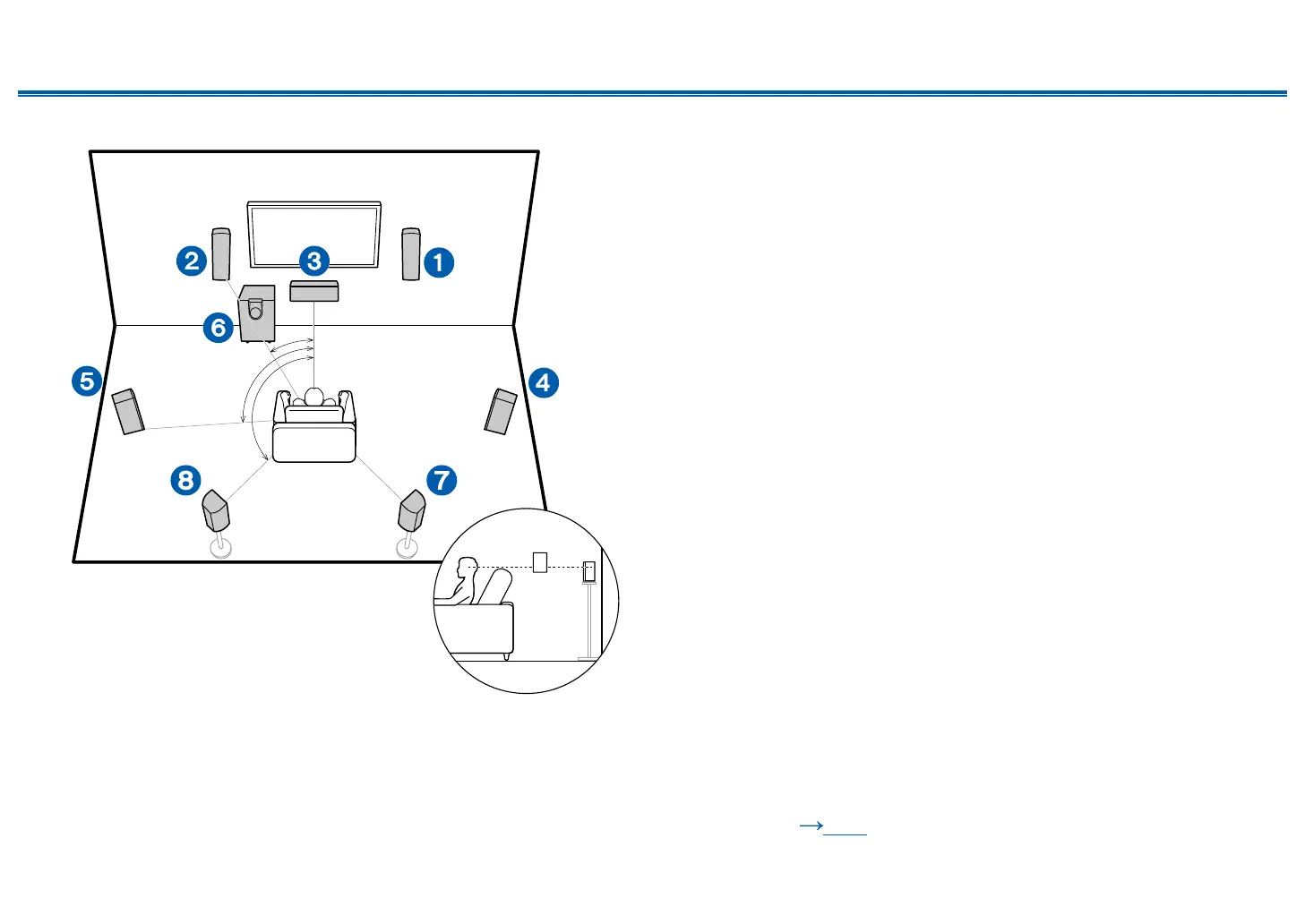

Front speakers output the front stereo sound, and a center speaker outputs
the sound of the center of the screen, such as dialogs and vocals. Surround
speakers create the back sound eld. Powered subwoofer reproduces the bass
sound, and creates the rich sound eld. Surround back speakers improves the
sense of envelopment and connectivity of sound in the back sound eld, and
provides a more real sound eld.
The front speakers should be positioned at ear height while the surround
speakers should be positioned just above ear height. The center speaker
should be set up facing the listening position at an angle. Placing the powered
subwoofer between the center speaker and the front speaker gives you a natural
sound even when playing music sources. The surround back speakers should be
positioned at ear height.
• If surround back speakers are installed, be sure to install surround speakers
as well.
1,2 Front Speakers*
1
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
7,8 Surround Back Speakers*
2
*
1
The terminals for the height speakers are not used when the supplied Front
& Height Speakers are to be used as front speakers to build a 7.1 Channel
System.
*
2
Optional items
Speaker Layouts and Selectable Listening
Modes ( p62)
