 Example installation when the entire supplied
speaker system is connected
a
b
a: 22° to 30°, b: 120°

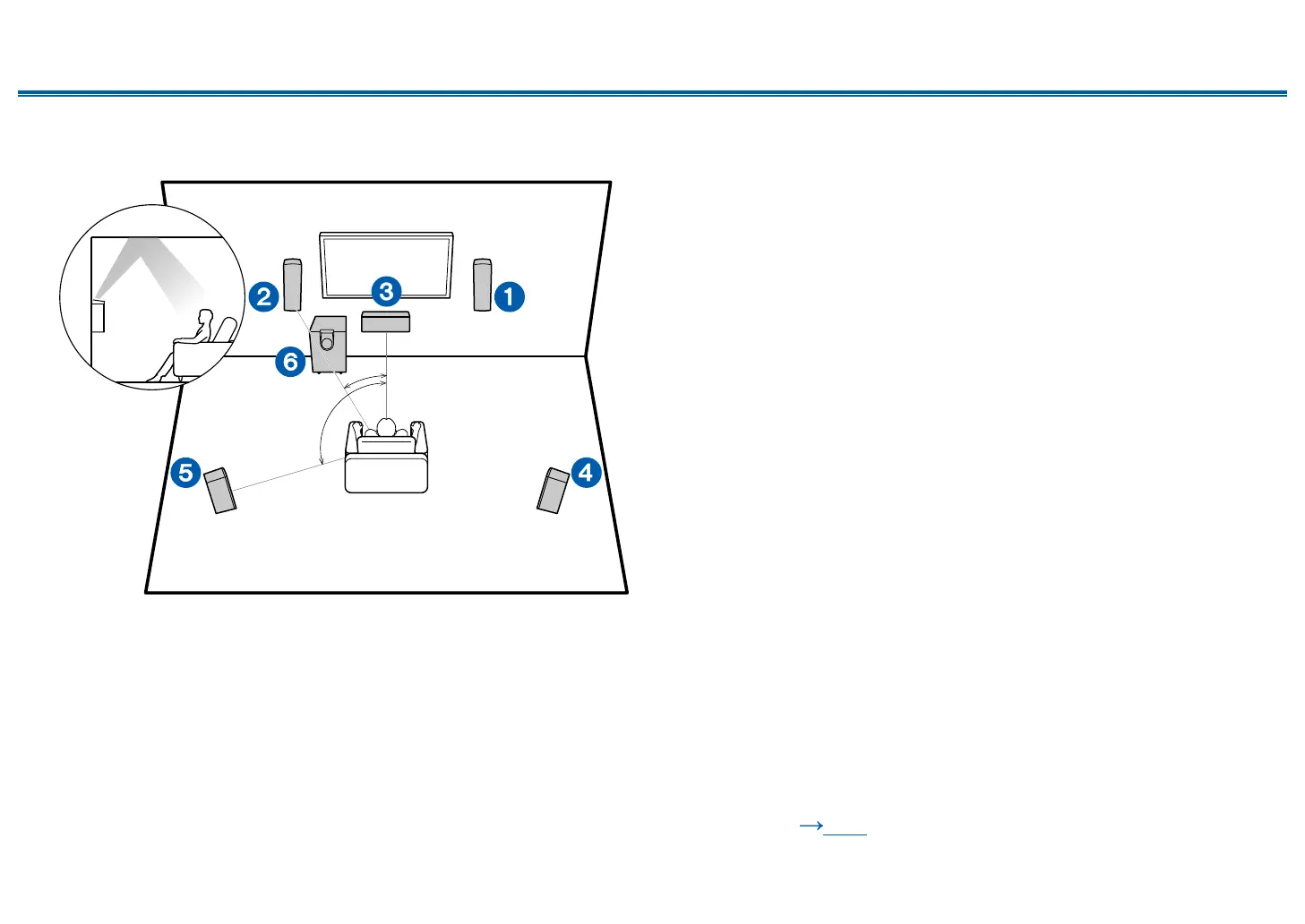

This is a 5.1.2 channel system where the entire supplied speaker system is
connected.
The Front & Height Speakers have Dolby enabled speakers, which are types of
height speakers, built into the top part of them, and they face the ceiling so that
sound is heard after bouncing off the ceiling so that sound appears to be coming
from overhead.
The front & height speakers should be positioned at ear height while the surround
speakers should be positioned just above ear height. The center speaker
should be set up facing the listening position at an angle. Placing the powered
subwoofer between the center speaker and the front & height speaker gives you
a natural sound even when playing music sources.
1,2 Front & Height Speakers
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
 Speaker Layouts and Selectable Listening
Modes ( p62)

Onkyo HT-S5910 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
4Ω speaker support	No
Audio output channels	5.1.2 channels
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	160 W
Power output per channel (20-20KHz@8 Ohm)	115 W
Display	LCD
Product color	Black
Audio decoders	Dolby Atmos
Damping factor	60
Amplifier output power	925 W
HDMI in	4
Composite video in	3
Digital audio coaxial in	1
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	0
Audio (L/R) out	7
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Supported radio bands	AM, FM
AC input voltage	120 V
AC input frequency	60 Hz

Weight and Dimensions

Depth	328 mm
Width	453 mm
Height	160 mm
Weight	7800 g
