27
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫

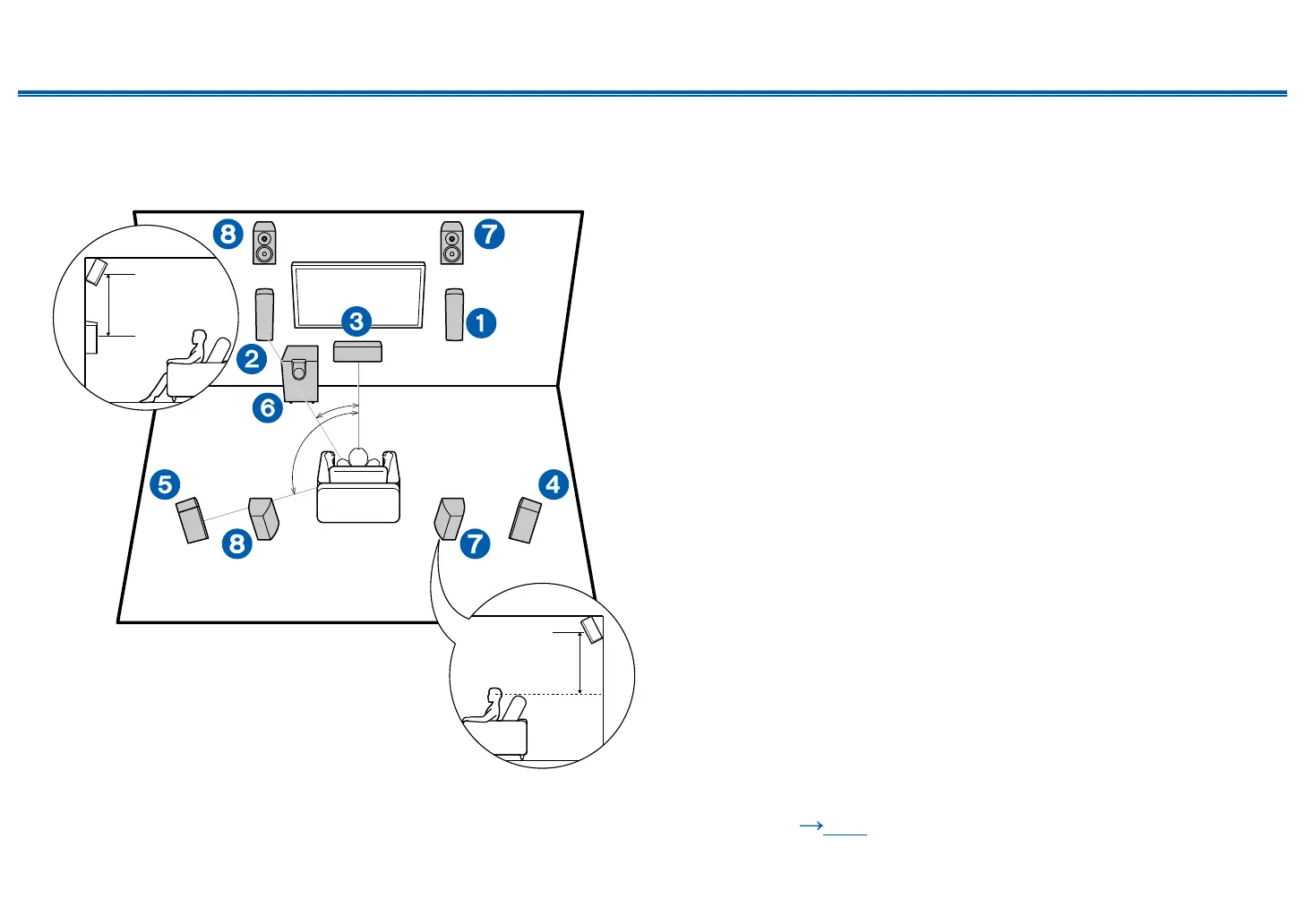

Example installation when using separately
available front high speakers/rear high
speakers
a
b
*
2
*
2
2
2
a: 22° to 30°, b: 120°
3´ (0.9 m)
or more
3´ (0.9 m)
or more
This is a 5.1.2 Channel System that combines the supplied speaker system with
separately available front high speakers or rear high speakers.
The front speakers should be positioned at ear height while the surround
speakers should be positioned just above ear height. The center speaker
should be set up facing the listening position at an angle. Placing the powered
subwoofer between the center speaker and the front speaker gives you a natural
sound even when playing music sources. Front high speakers should be installed
directly above the front speakers, and the distance between the rear high
speakers should match the distance between the front speakers. In both cases,
the speakers should be set up facing the listening position at an angle.
1,2 Front Speakers*
1
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
7,8 Height Speakers*
2
Choose one of the following:
• Front High Speakers
• Rear High Speakers
*
1
The terminals for the height speakers are not used when the supplied Front
& Height Speakers are to be used as front speakers to build a 5.1.2 Channel
System.
*
2
Optional items
Speaker Layouts and Selectable Listening
Modes ( p62)
To Next Page
