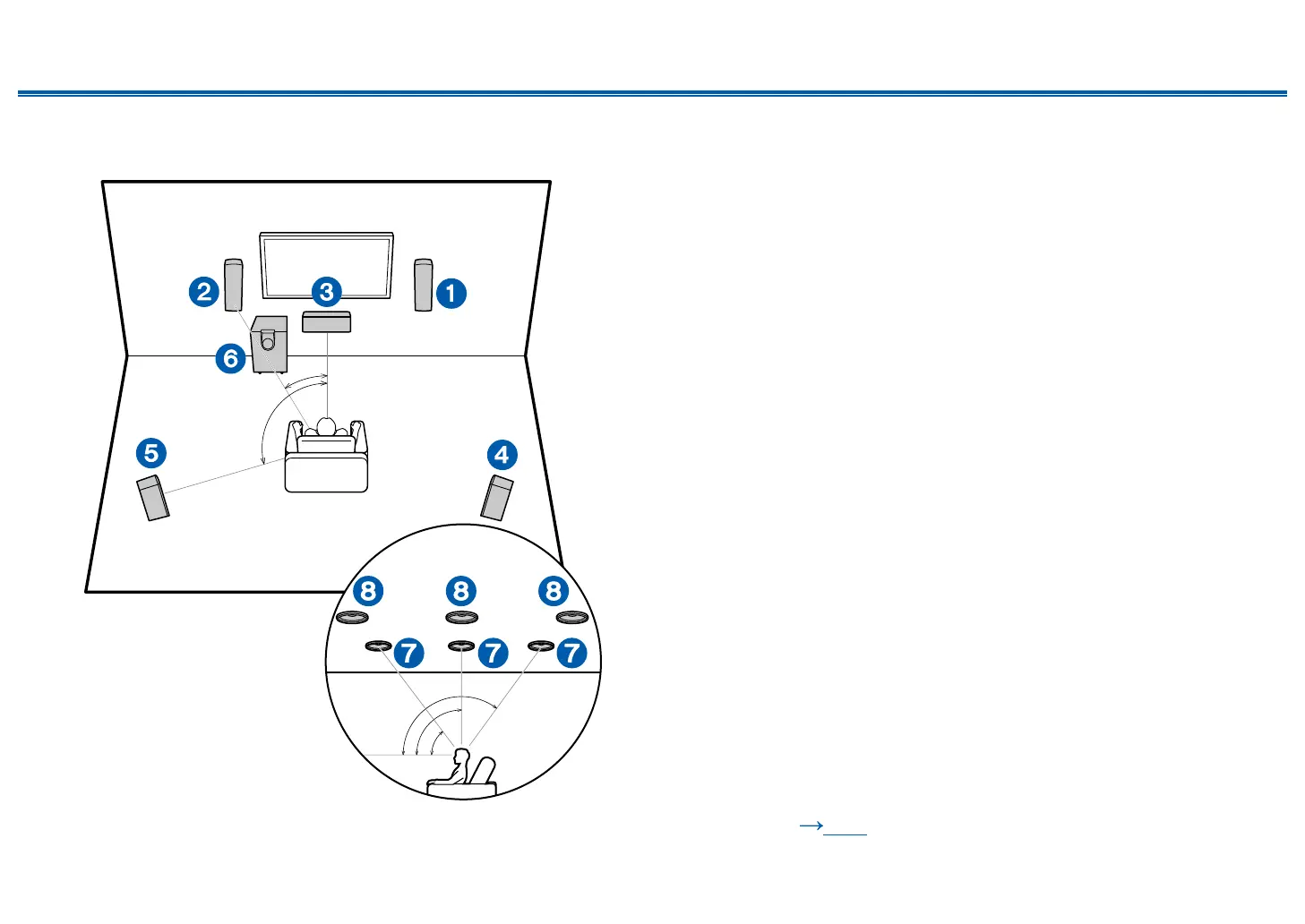

Example installation when using separately
available ceiling speakers
a
b
a: 22° to 30°, b: 120°, c: 30° to 55°,
d: 65° to 100°, e: 125° to 150°
This is a 5.1.2 Channel System that combines the supplied speaker system
with separately available top front speakers, top middle speakers, or top rear
speakers.
The front speakers should be positioned at ear height while the surround
speakers should be positioned just above ear height. The center speaker
should be set up facing the listening position at an angle. Placing the powered
subwoofer between the center speaker and the front speaker gives you a natural
sound even when playing music sources. Install the top front speakers on the
ceiling anterior to the seating position, top middle speakers on the ceiling directly
above the seating position, and top rear speakers on the ceiling posterior to the
seating position. The distance between each pair should match the distance
between the front speakers.
• Dolby Laboratories recommends the setups of these types of height speakers
to obtain the best Dolby Atmos effect.
1,2 Front Speakers*
1
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
7,8 Height Speakers*
2
Choose one of the following:
• Top Front Speakers
• Top Middle Speakers
• Top Rear Speakers
*
1
The terminals for the height speakers are not used when the supplied Front
& Height Speakers are to be used as front speakers to build a 5.1.2 Channel
System.
*
2
Optional items
Speaker Layouts and Selectable Listening
Modes ( p62)
