Example installation when using separately
available Dolby Enabled speakers (Dolby
Speakers)
a
b
* *
*
*
a: 22° to 30°, b: 120°

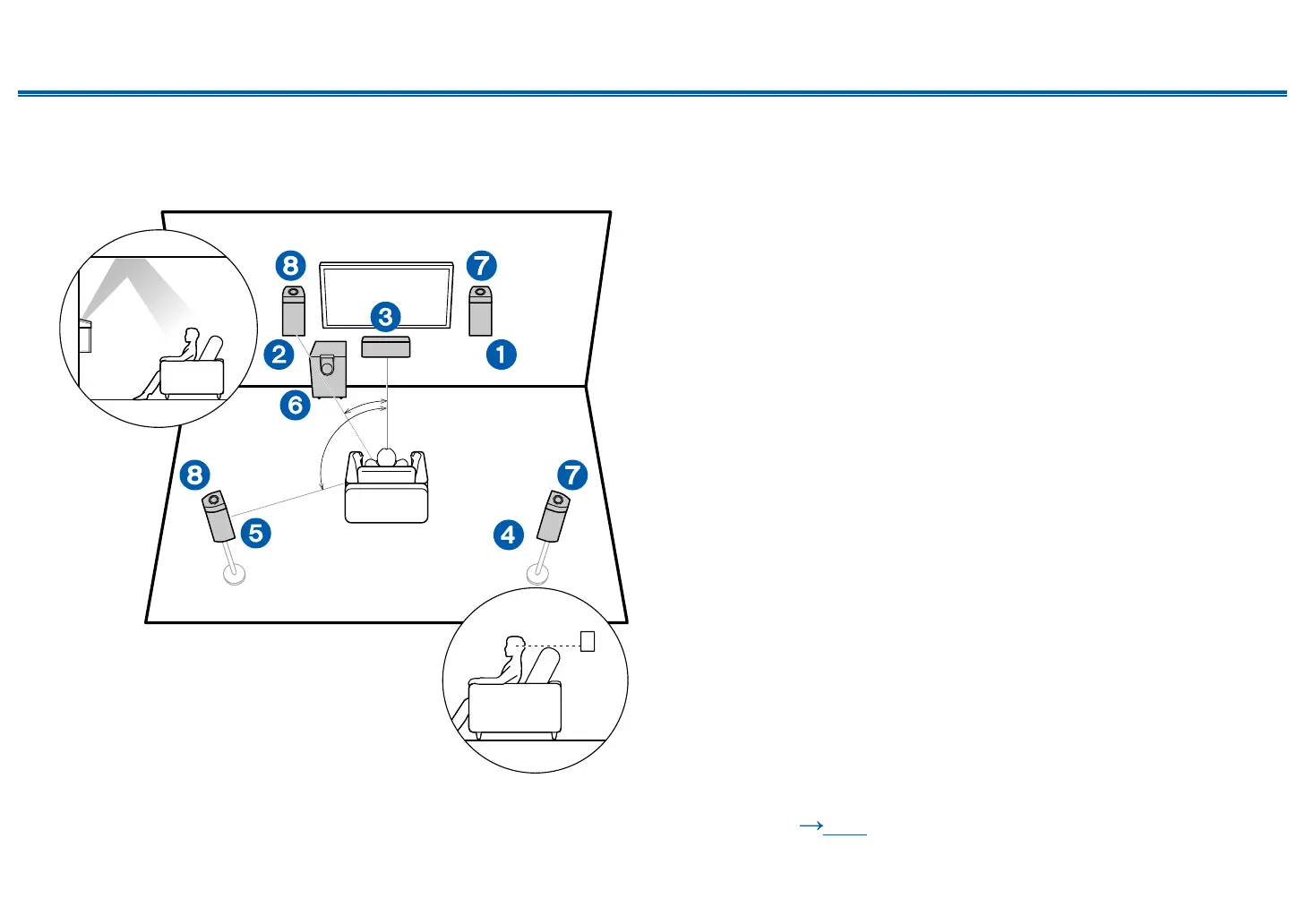

This is a 5.1.2 Channel System that uses the supplied center speaker and
powered subwoofer in combination with a separately available speaker system.
Dolby enabled speakers, which are types of height speaker, are special speakers
designed to face the ceiling so that sound is heard after bouncing off the ceiling
so that sound appears to be coming from overhead.
The front speakers should be positioned at ear height while the surround
speakers should be positioned just above ear height. The center speaker
should be set up facing the listening position at an angle. Placing the powered
subwoofer between the center speaker and the front speaker gives you a natural
sound even when playing music sources.
Place the Dolby enabled speakers (front) or Dolby enabled speakers (surround)
on top of the separately available front speakers or surround speakers.
1,2 Front Speakers*
3 Center Speaker
4,5 Surround Speakers*
6 Powered Subwoofer
7,8 Height Speakers*
Choose one of the following:
• Dolby Enabled Speakers (Front)
• Dolby Enabled Speakers (Surround)
* Optional items
Speaker Layouts and Selectable Listening
Modes ( p62)
