Speaker Connections and "Speaker Setup" Settings
Connections
 (Note) Speaker Impedance
When using all supplied speakers, setup explained in this section is not required. When using speakers sold separately, use speakers with impedance of 4 Ω to 16 Ω.
If any of the speakers to be connected has an impedance of 4 Ω or more and less than 6 Ω, set "Speaker Impedance" to "4 ohms" for "Speaker Setup" in the Initial
Setup section ( p94). When setting "Speaker Impedance" from the Setup menu, press on the remote controller, and set "2. Speaker" - "Conguration" - "Speaker
Impedance" ( p82) to "4 ohms".

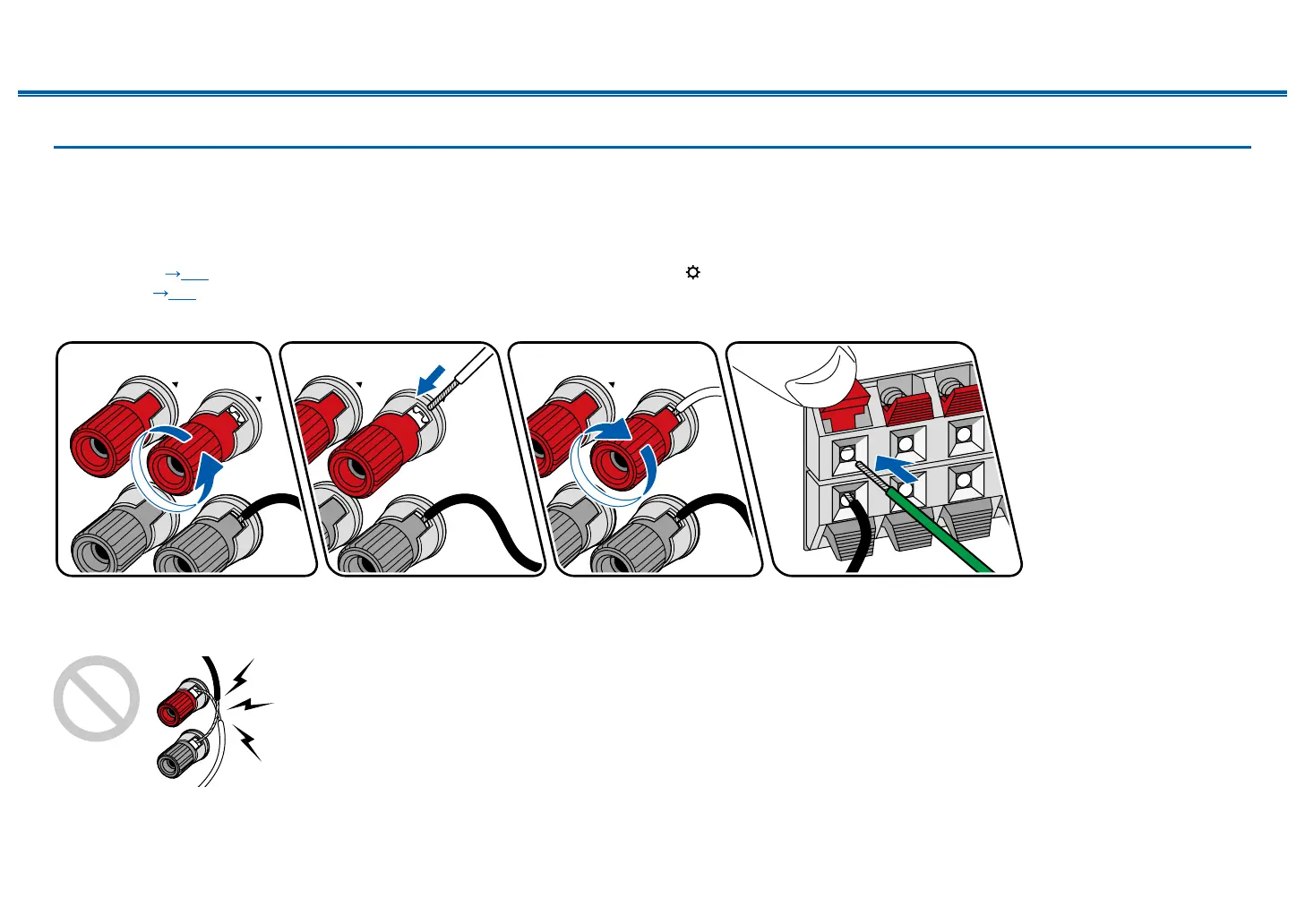

 Connect the Speaker Cables
Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass sound
will not be reproduced properly due to reverse phase. The wires exposed from the tip of the speaker cable do not stick out of the speaker terminal when connecting. If
the exposed wires touch the rear panel, or the + side and - side wires touch each other, a malfunction may occur.

Onkyo HT-S5910 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
4Ω speaker support	No
Audio output channels	5.1.2 channels
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	160 W
Power output per channel (20-20KHz@8 Ohm)	115 W
Display	LCD
Product color	Black
Audio decoders	Dolby Atmos
Damping factor	60
Amplifier output power	925 W
HDMI in	4
Composite video in	3
Digital audio coaxial in	1
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	0
Audio (L/R) out	7
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Supported radio bands	AM, FM
AC input voltage	120 V
AC input frequency	60 Hz

Weight and Dimensions

Depth	328 mm
Width	453 mm
Height	160 mm
Weight	7800 g
