Onkyo HT-S7100

73
Advanced Setup —Continued
Note:
• These settings cannot be changed while headphones
are connected or the multichannel DVD input is being
used.
Low-Pass Filter for the LFE Channel
With this setting, you can specify the cutoff frequency of
the LFE channel’s low-pass filter (LPF), which can be
used to filter out unwanted hum. The LPF only applies to
sources that use the LFE channel.
7

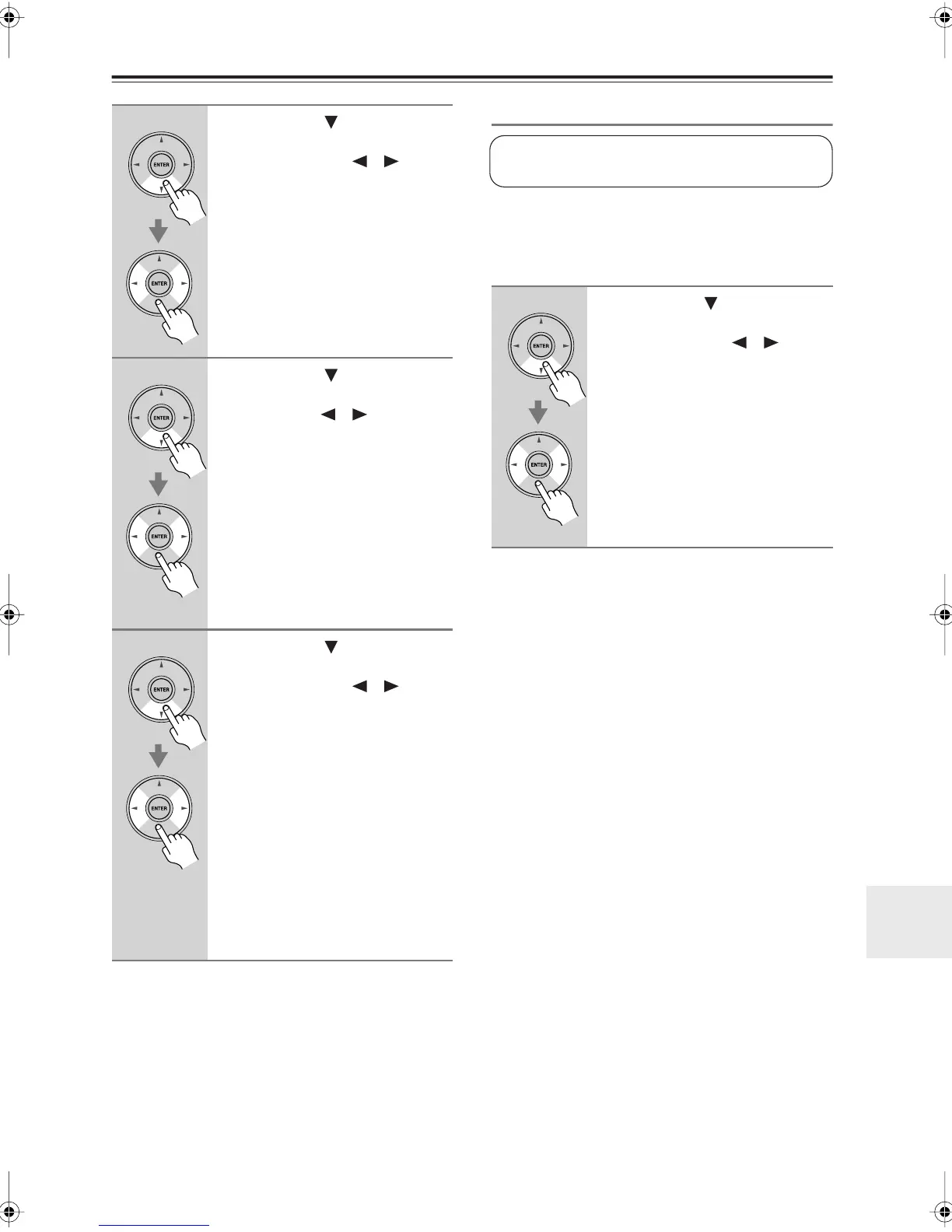

Use the Down [ ] button to
select “Surround,” and then use
the Left and Right [ ]/[ ] but-
tons to select a crossover fre-
quency.
If no surround left and right speakers
are connected, select None.
Note:
• Cannot select Full Band if Front
(step 5) is set to anything other than
Full Band.
8
Use the Down [ ] button to
select “Surr Back,” and use the
Left and Right [ ]/[ ] buttons to
select a crossover frequency.
If no surround back speakers are con-
nected, select None.
Notes:
• If the Surround setting in step 7 is set
to None, or Powered Zone 2 is being
used, this setting does not appear.
• Cannot select Full Band if Surround
(step 7) is set to anything other than
Full Band.
9
Use the Down [ ] button to
select “Surr Back Ch,” and use
the Left and Right [ ]/[ ] but-
tons to select 2ch or 1ch .
2ch: Select if two (left and right)
surround back speakers are
connected.
1ch: Select if one surround back
speaker is connected.
Note:
• If the Surround or SurrBack settings
in steps 7 and 8 are set to None, this
setting does not appear.
Continue with step 10 of the “Low-Pass
Filter for the LFE Channel” setting.
10
Use the Down [ ] button to
select “LPF of LFE,” and then use
the Left and Right [ ]/[ ] but-
tons to select a lowpass filter fre-
quency.
The following low-pass filter frequen-
cies can be selected: 80Hz, 90Hz,
100Hz, or 120Hz.
Continue with step 11 of the “Double
Bass” setting on the next page.
This setting is not set automatically by the Automatic
Speaker Setup function (see page 38).
