Getting to Know the AV Receiver
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
A
ON/STANDBY button (37)
Sets the AV receiver to On or Standby.
B
STANDBY indicator (37)
Lights up when the AV receiver is on Standby and
flashes while a signal is being received from the
remote controller.
C
ZONE 2 indicator (85)
Flashes when Zone 2 is being set. Lights up when
Zone 2 is on.
D
Input selector buttons (47)
Select the following input sources: DVD,
VCR/DVR, CBL/SAT, GAME/TV, AUX, TAPE,
TUNER, CD.
The [MULTI CH] button selects the multichannel
DVD input.
E
Remote-control sensor (13)
Receives control signals from the remote controller.
F
Display
See “Display” on page 9.
G
SETUP button
Opens and closes the setup menus.
H
TUNING, PRESET, Arrow, and ENTER
buttons
When AM or FM is selected, the TUNING [ ]
[] buttons are used for radio tuning, and the PRE-
SET [ ] [ ] buttons are used to select radio pre-
sets (see page 54). With the setup menus, they work
as arrow buttons and are used to select and set
items. The ENTER button is also used with the
setup menus.

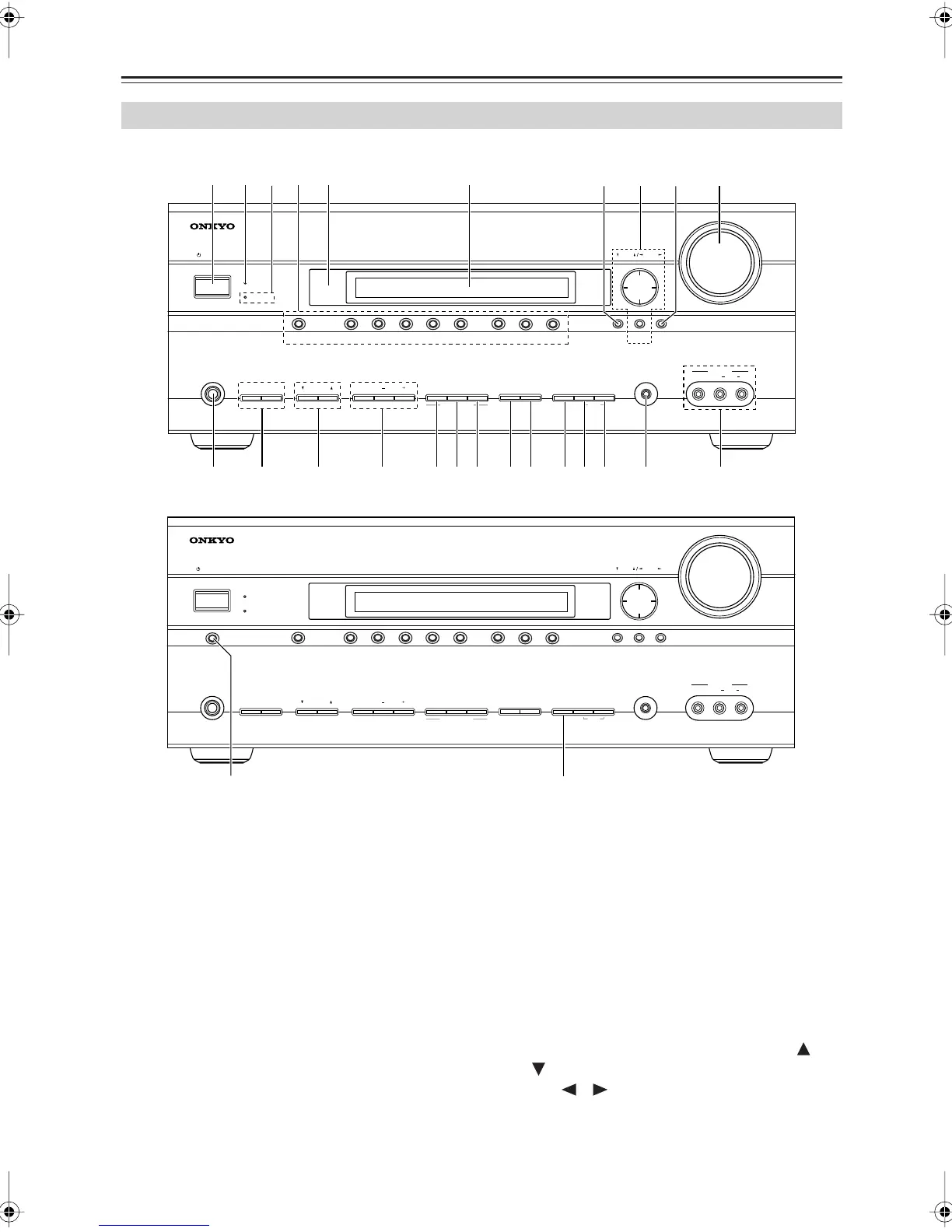

Front Panel
ON/STANDBY
ZONE 2
ZONE 2 LEVEL
TONE
MOVIE/TV MUSIC GAME DISPLAY DIMMER MEMORY
CLEAR
DIGITAL INPUT TUNING MODE
OFF
PHONES
MULTI CH DVD VCR/DVR CBL/SAT GAME/TV AUX TAPE TUNER CD
SETUP
SETUP MIC VIDEO
L AUDIO R
AUX INPUT
ENTER RETURN
TUNING PRESET
MASTER VOLUME
AV RECEIVER
TX-SR606
LISTENING MODE
STANDBY
ZONE 2
J987
5 61 2
3
MLK
4
N XOPQ RS TUV W
Other models
North American model
ON/STANDBY
ZONE 2
ZONE 2 LEVEL
TONE
MOVIE/TV MUSIC
LISTENING MODE
GAME DISPLAY RT/PTY/TP MEMORY
CLEAR
DIGITAL INPUT TUNING MODE
OFF
PHONES
MULTI CH DVD VCR/DVR CBL/SAT GAME/TV AUX TAPE TUNER CD
SETUP
SETUP MIC VIDEO
L AUDIO R
AUX INPUT
ENTER RETURN
TUNING PRESET
MASTER VOLUME
AV RECEIVER
TX-SR606
STANDBY
ZONE 2
PURE AUDIO
T
Y
