Onkyo M-282 User Manual

-Rear panel facilities and connections
6
SPEAKERS
Connect the jacks on the speakers to the SPEAKERS terminals
using the speaker cables. These terminals are compatible with
banana plug connections.
1 Strip away 15 mm ( 5 /s in.) of wire insulation.
2 Twist wire ends very tight.
3 Unscrew.
4 Insert wire.
5 Screw.
15mm
2
When you are using only one
speaker or when you wish to
listen to monaural (mono)
sound, a single speaker should
never be connected in parallel
to both the right and left-
channel terminals simultane¬
ously.
o
1..
.. r
o o
O
NO! ^
\ /
O
w
o
r
o o
*1
>
<> o
, O 0
To prevent damage to cir¬
cuitry, never short-circuit the
positive (+) and negative (~)
speaker wire.
3 4 5
4
• Do not connect any devices other than speakers to these
terminals.
• Be sure not to mistake the positive and negative outputs or the
left and right speakers. Doing so will result in an unnatural
sound space.
• Only connect speakers with an impedance of 6 ohms or higher.
If a speaker with an impedance of less than 6 ohms is
connected, it may damage the M-282.
7
AC INLET
Plug the supplied power cord into this AC INLET and then into the
power outlet on the wall.
* Do not use a power cord other than the one supplied with the
M-282. The power cord supplied is designed for use with the
M-282 and should not be used with any other device.
• Never disconnect the power cord from the M-282 while the
other end is plugged intolhe wall outlet. Doing so may cause
an electric shock. Always connect by plugging into the wall
outlet last and disconnect by unplugging from the wall outlet
first.

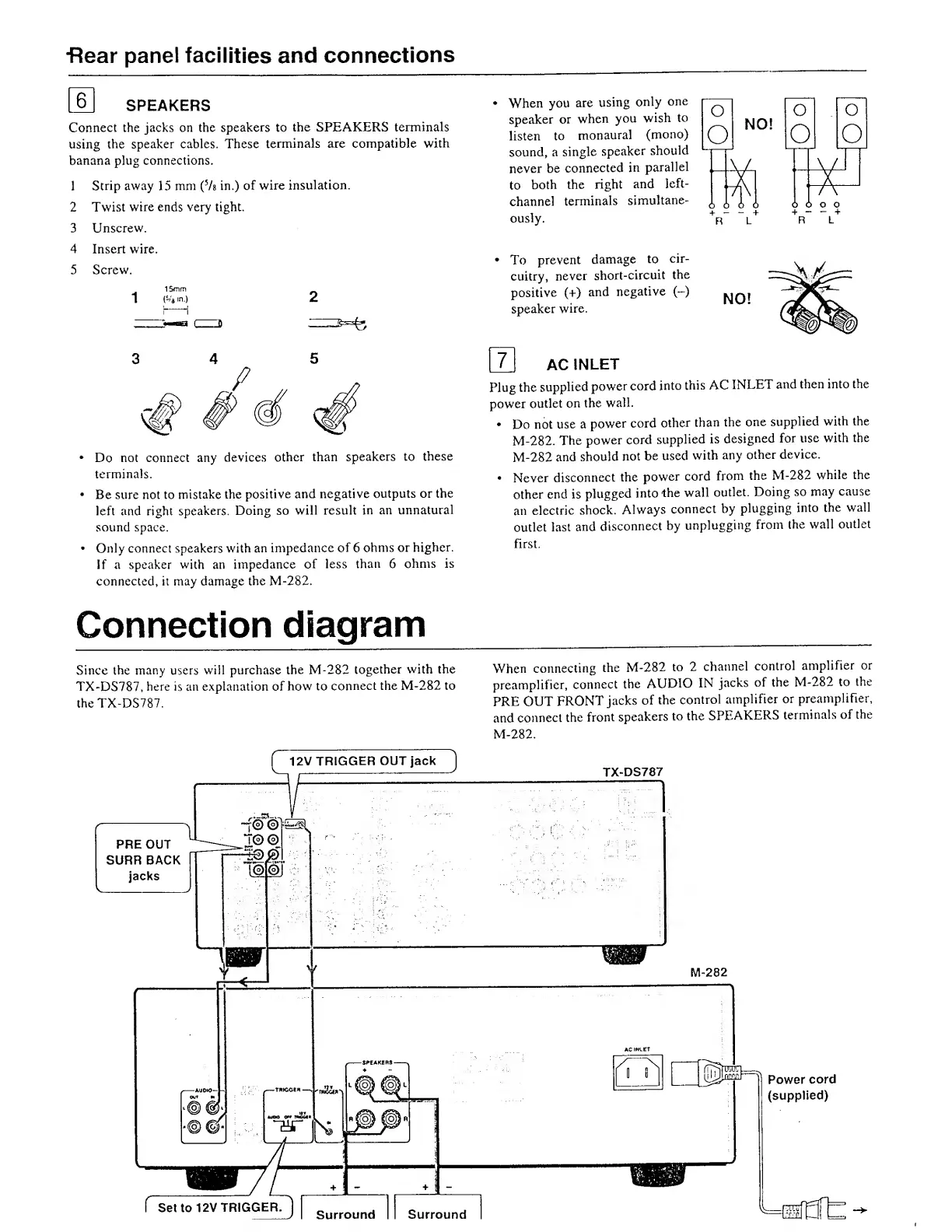

Connection diagram
Since the many users will purchase the M-282 together with the
TX-DS787, here is an explanation of how to connect the M-282 to
the TX-DS787.
When connecting the M-282 to 2 channel control amplifier or
preamplifier, connect the AUDIO IN jacks of the M-282 to the
PRE OUT FRONT jacks of the control amplifier or preamplifier,
and connect the front speakers to the SPEAKERS terminals of the
M-282.
TX-DS787
PRE OUT
SURR BACK
jacks
Power cord
(supplied)

Onkyo M-282 Specifications

Power Output

power output per channel (8 ohms)	100 Watts
power output per channel (6 ohms)	125 Watts
dynamic power output (8 ohms)	140 Watts

Power and Consumption

power supply voltage	AC 120 V
power consumption	2.5 A
rated speaker impedance	6 ohms MIN

Performance

frequency response	10 Hz - 100 kHz, ±1 dB
signal-to-noise ratio	110 dB (IHF A, 0.5 V input)
total harmonic distortion	0.08 % at rated power

Weight and Dimensions

dimensions	435 x 145 x 316 mm
weight	8.5 kg
weight (imperial)	18.7 lbs
