Installing the Power Amplifier
v

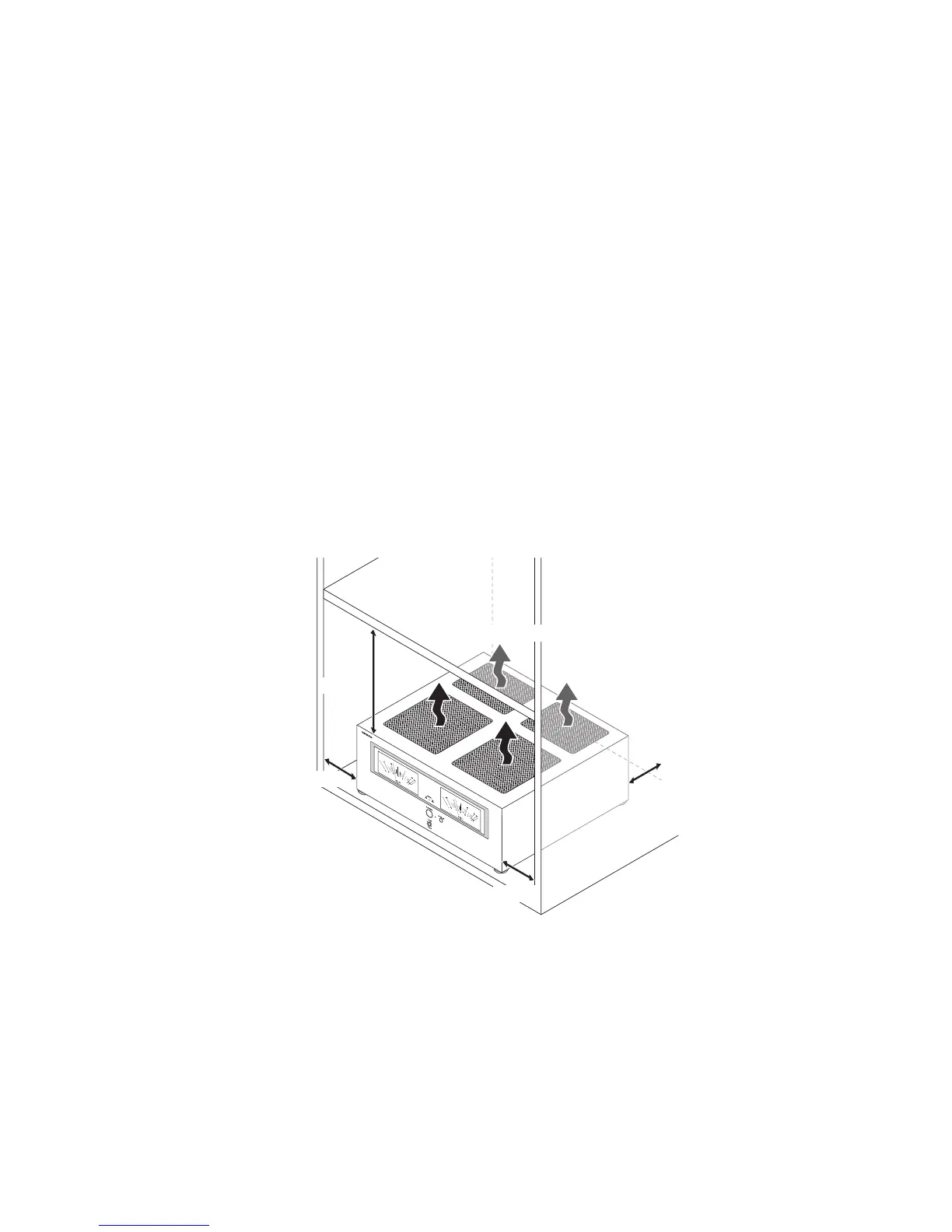

Install the power amplifier on a sturdy rack or shelf. Position it so that its weight is evenly dispersed on its four legs. Do not install the power amplifier in a place with vibration or an unstable location.
The power amplifier is designed to have high conversion efficiency, however, its temperature will become much higher than other audio equipment. Therefore, make sure not to hamper heat
dissipation by ensuring proper ventilation.
10 cm (4")
10 cm (4")
10 cm (4")
30 cm (12")
Ensure proper ventilation.

Onkyo M-5000R Specifications

General

Damping factor	130
Amplifier class	-
Frequency range	1 - 250000 Hz
Input sensitivity	700 mV
Audio output channels	2.0 channels
Peak power per channel	150 W
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.02 %
Dynamic power per channel (2 Ohm)	320 W
Dynamic power per channel (3 Ohm)	245 W
Dynamic power per channel (4 Ohm)	196 W
Dynamic power per channel (6 Ohm)	142 W
Dynamic power per channel (8 Ohm)	110 W
RMS power output per channel (8 Ohm)	80 W
XLR out	1
Speakers connectivity type	RCA
Purpose	Home
On/off switch	Yes
Product color	Silver
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	280 W
Package weight	27000 g

Weight and Dimensions

Depth	432.5 mm
Width	435 mm
Height	187.5 mm
Weight	23500 g
