Bi-amping Connection
Preamplifier P-3000R
Power Amplifier
M-5000R
Right speaker Left speaker

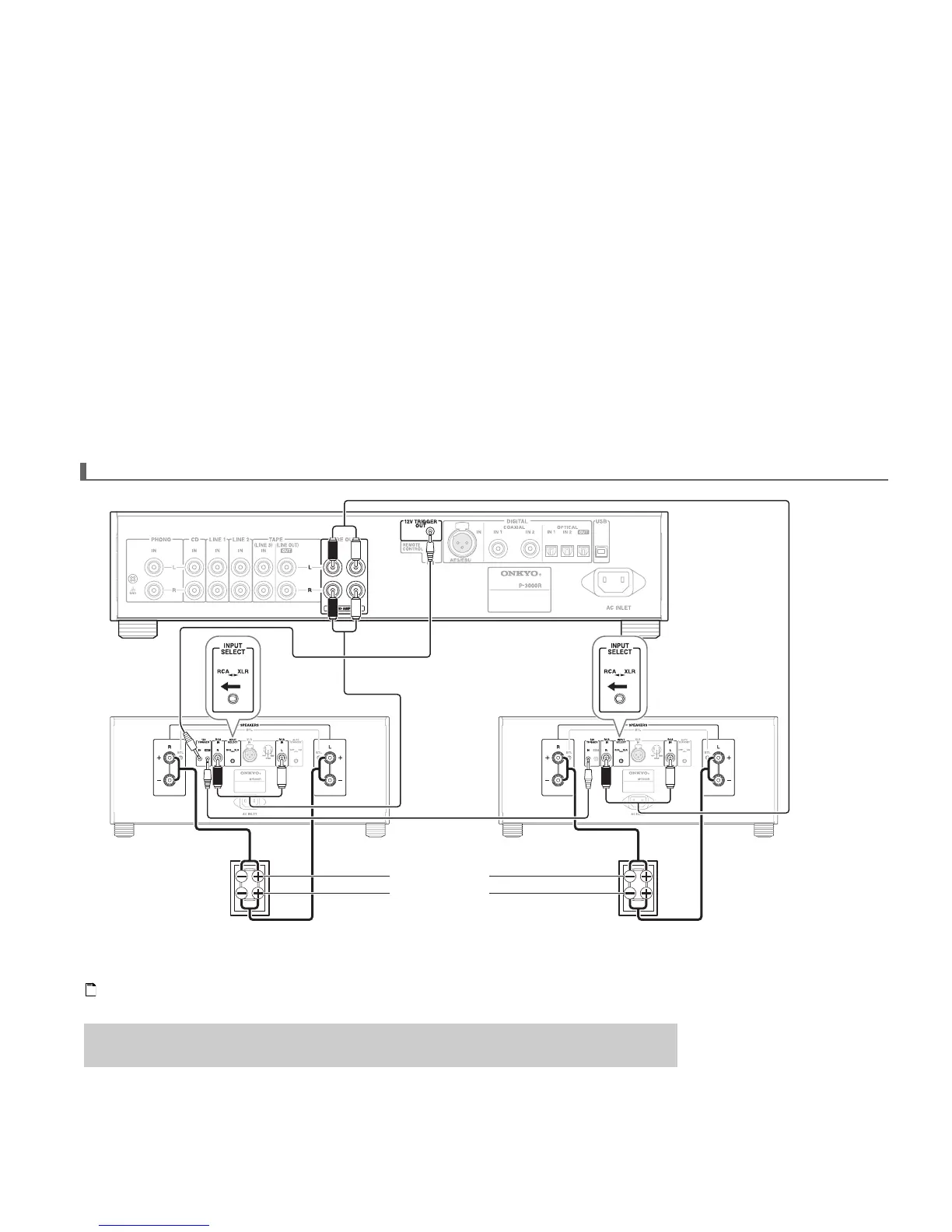

This is an example of the bi-amping connection using the preamplifier P-3000R.
Note
• Set the INPUT SELECT switch to RCA side.
Important:
• When making the bi-amping connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low) jacks.
• Bi-amping can be used only with speakers that support bi-amping. Refer to your speaker manual.
Tweeter (high)
Woofer (low)
Power Amplifier
M-5000R
