Onkyo P-3000R Service Manual

P-3000R

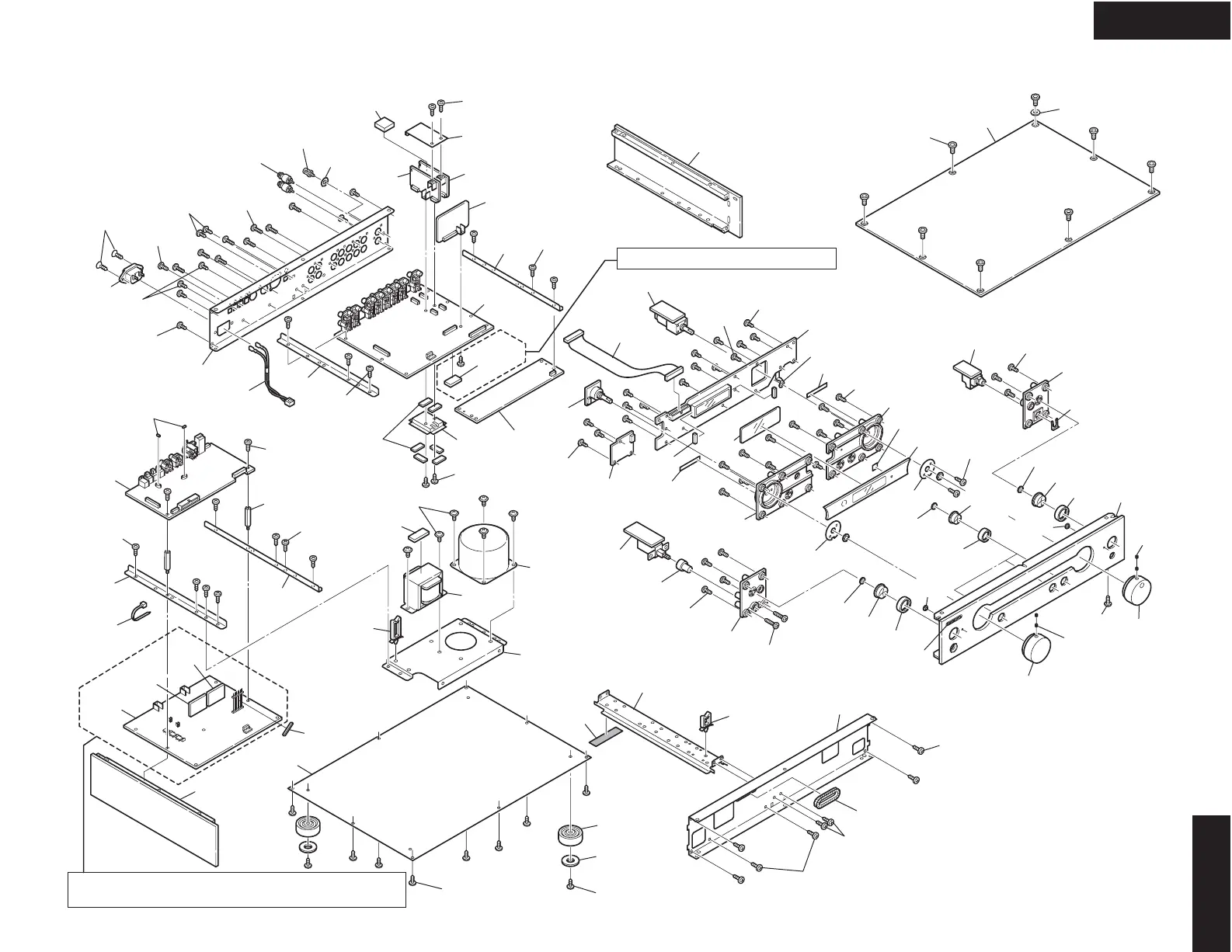

EXPLODED VIEWS-1
P-3000R
A140
A119
A001
A105
A103
A110
A121
A121
A113
A113
A116
A127
A122
x 2pcs.
A118
A120
A124
A110
A104
A103
A015
A010
T901
T902
A150
A060
A020
A021
A029
A161
A160
A030
U0020
U0021
U0022
U0023
U0010
U0018
U0011
U0015
U0016
U0017
U0012
U0013
U0014
A021
A310
A141
L=20mm
A141
A142
A061
A117
A131
A132
A100
A102
A125
A125
A106
A021
A062
A012
A005
A307
A016
A006
A002
A003
P1006D
P9303A
P9901
A200
A004
x 4 pcs.
A112
x 3 pcs.
A121
x 3 pcs.
A115
x 3 pcs.
A126
x 2 pcs.
A025
x 2 pcs.
A009
x 2 pcs.
A124
x 4 pcs.
A124
x 3 pcs.
A124
x 11 pcs.
A134
x 3 pcs.
A134
x 12 pcs.
A133
x 2 pcs.
A152
x 4 pcs.
A153
x 4 pcs.
A154
x 4 pcs.
A151
x 8 pcs.
A011
x 6 pcs.
A025
x 4 pcs.
A026
x 2 pcs.
A027
x 2 pcs.
A028
x 2 pcs.
A055
x 2 pcs.
A056
x 2 pcs.
A025
x 4 pcs.
A032
x 8 pcs.
A025
x 3 pcs.
A201
x 8 pcs.
A031
x 2 pcs.
A025
x 3 pcs.
A007
x 4 pcs.
A008
x 2 pcs.
A014
x 2 pcs.
A013
x 24 pcs.
P301A
x 2 pcs.
A122
x 2pcs.
A063
A033
U0025
U0024
A203
U0030
Refer to EXPLODED VIEWS-2
<Note>
U0024, U0025 and U0021 are connected by soldering.
