Multi Zone
In addition to the main listening room, you can also enjoy playback in the other room, or as we call Multi Zone. And, you
can select a different source for each room.
Zone 2/3 speakers must be connected to individual
amplifiers in Zone 2/3.
Connecting the Zone Speakers to Individual
Amplifiers
This setup allows 9.2-channel playback in your main
listening room and 2.1-channel playback in Zone 2/3.
Note
• With the default settings, the Zone 2/3 volume must be set on the
Zone 2/3 amplifier. If your Zone 2/3 amplifier has no volume
control, change the setting so that you can set the Zone 2/3
volume on the AV controller. See “Multi Zone” (➔ page 66).
Zone 2 Video Output
The AV controller features composite video and
component video outputs for connection to a TV in
Zone 2, so that you can enjoy both audio and video in that
zone.
Note
• If you use the COMPONENT VIDEO ZONE 2 OUT, you must
set the “Zone 2 Component Video Out” setting to “Yes”
(➔ page 66).
•The COMPONENT VIDEO ZONE 2 OUT outputs video of
components connected to component video inputs only.
•The ZONE 2 OUT V jack outputs video of components con-
nected to composite video only.

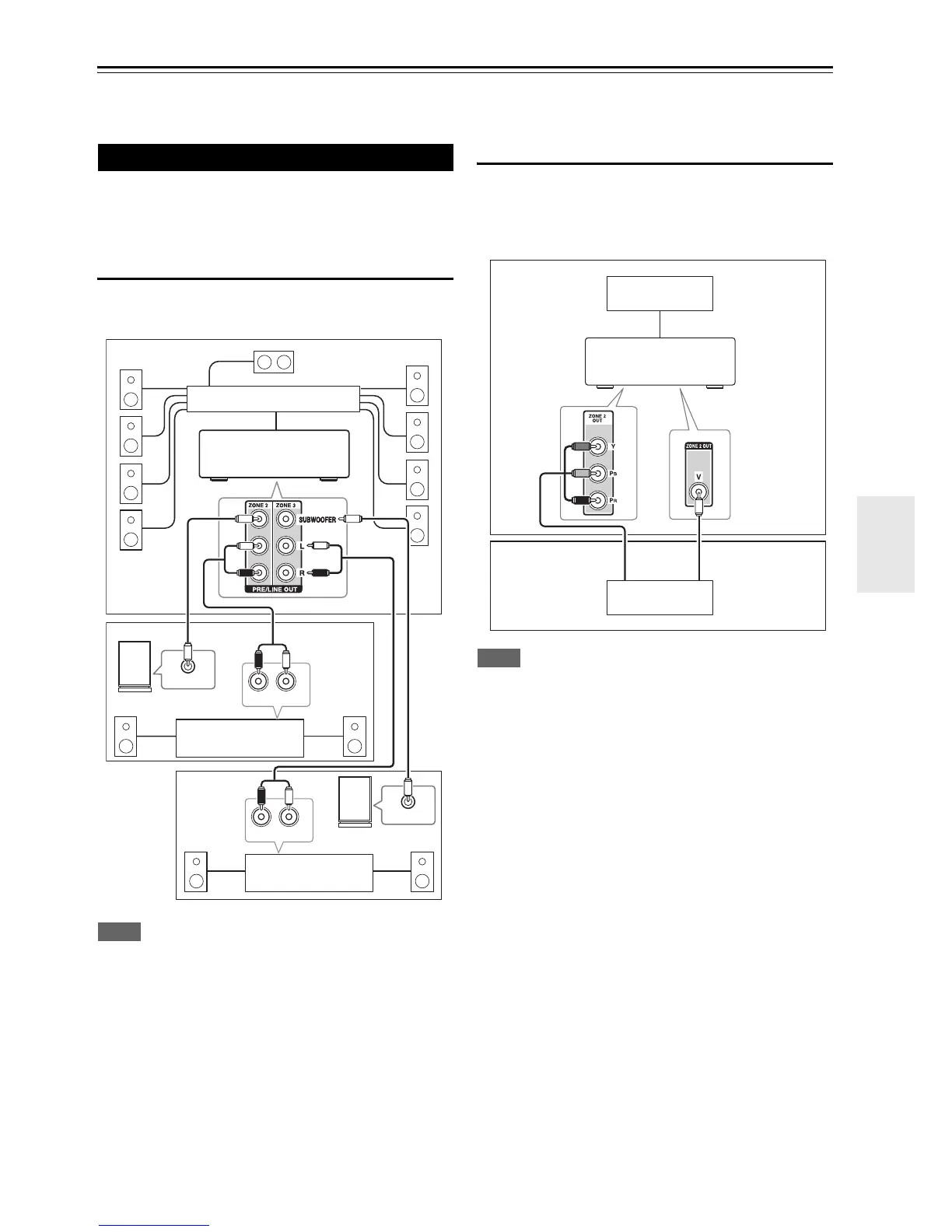

Making Multi Zone Connections
R
L
IN
R
L
IN
LINE INPUT
LINE INPUT
Main room
Zone 2
AV controller
Receiver/
integrated amp
Receiver/
integrated amp
Zone 3
Powered subwoofer
Multichannel power amp
Powered subwoofer
Main room
Zone 2
TV
AV controller
TV
or
To Next Page
