Connecting to the ONKYO Separate Collection Series components
Before connecting
Do not connect the units AC power cord (mains lead) to a wall outlet (the mains) until you
have completed all the other connections, including and AC OUTLET connections on
page 12 and Connecting speaker systems on page 16.
On each pair of connectors, a red connector (marked R) corresponds to the right channel,
and a white connector (marked L) to the left channel. Connect white plugs of audio con-
nection cables to L connectors and connect red plugs of audio connection cables to R con-
nectors.
Please refer to the instruction manual for each component when you make any connec-
tions.
Insert the plug securely. If the connection is incomplete, noise or malfunction may result.
When you use a digital audio optical cable, do not bend it sharply nor coil it tightly.
Bundling an audio connection cable with the power cord or speaker cord may degrade the
sound quality.
Be sure to use the cable, supplied with each component (except for the R-801A) to con-
nect to the remote control connector. If the connection is incomplete, you will be
unable to operate the device using the remote controller.
CD recorders and MD recorders use heat-sensitive parts. Do not place them on top of the
amplier.

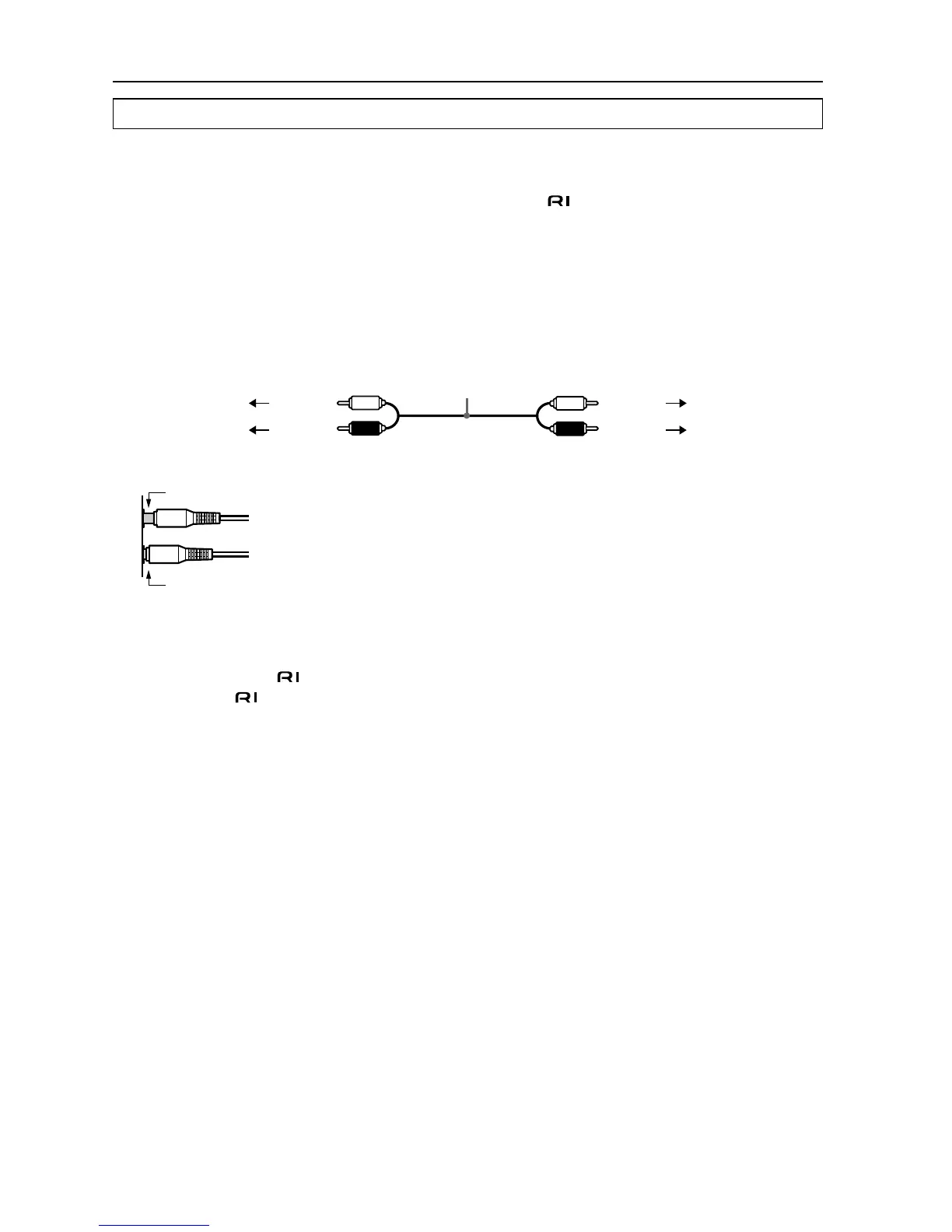

Connecting to the audio connector
(White) To L connector
(Red) To R connector
Audio connection
cable
To L connector (White)
To R connector (Red)
Improper connection
Insert completely
