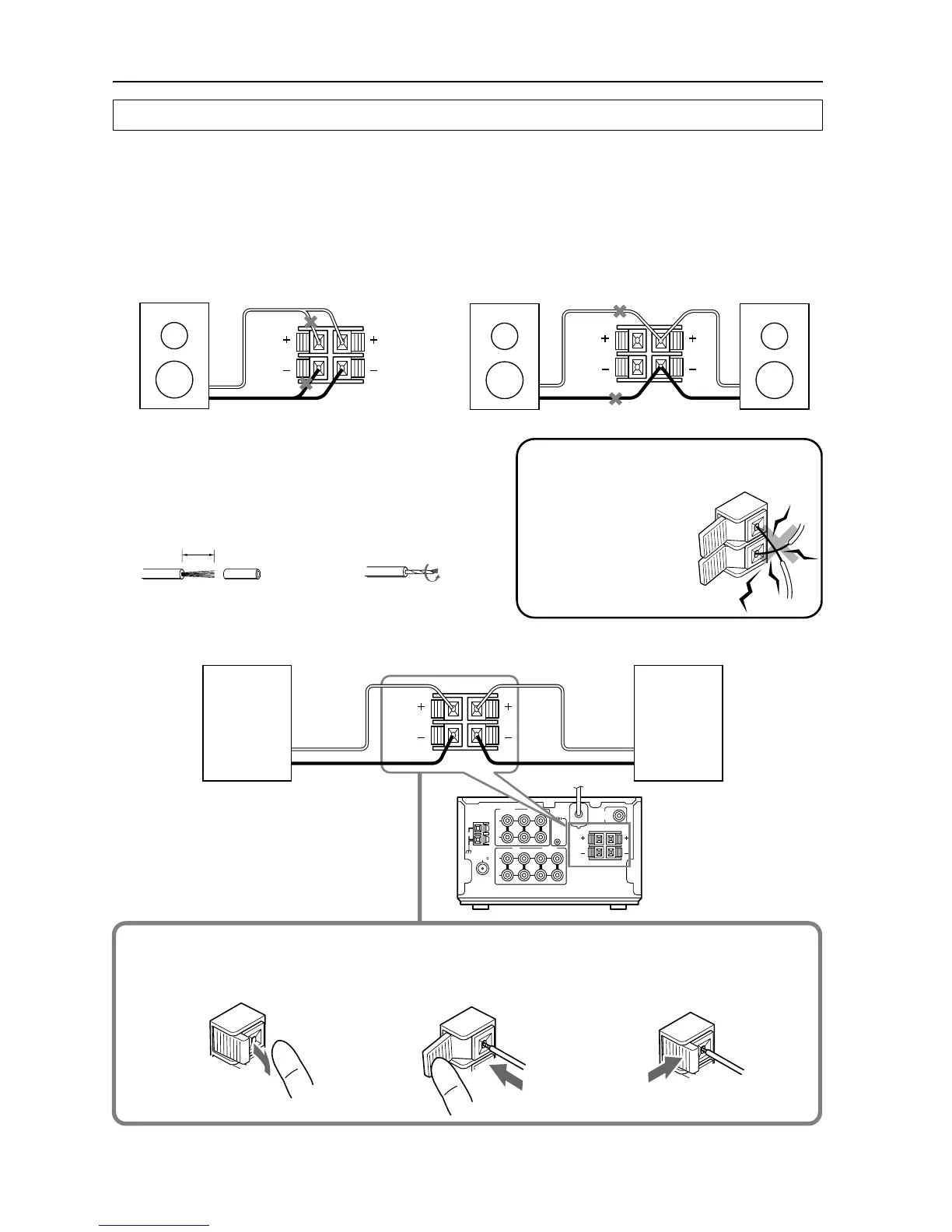

Connecting speaker systems
Before connecting
The load impedance of each speaker must be at least 4 ohms.
Do not use unnecessarily long or extremely thin speaker cords. Otherwise, the DC resis-
tance of the speaker cords may become too high, lowering the damping factor and causing
the sound quality to deteriorate.
Do not connect the speaker cord to the L and R connectors at the same time and do not
connect two or more speakers to the same speaker connectors.
Preparing the speaker cords for connection
Connecting the speaker cords to the speaker connectors
Connecting left and right speakers
SPEAKERS
R
L
SPEAKERS
R
L
NO
Note
To prevent dam-
age to circuits
never short-circuit
the positive (+)
and negative ()
speaker wires.
1 Strip 15 mm from
the end of each
cord.
15mm
2 Twist the stripped
end of the cord.
CD/DVD
TAPE
OUT
IN
IN
OUT
IN
OUT
IN
MD CDR/PC
ANTENNA
AM
FM 75
REMOTE
CONTROL
SPEAKERS
L
R
L
R
SUBWOOFER
PRE OUT
R
L
R
L
CAUTION:
SPEAKER
IMPEDANCE
4 OHMS MIN.
/ SPEAKER
-
+
-
+
SPEAKERS
R
L
Right
speaker
Left
speaker
This unit
1 Press down the lever. 2 Insert the wire into the
hole.
3 Release the lever to
replace it.
