TA-2200

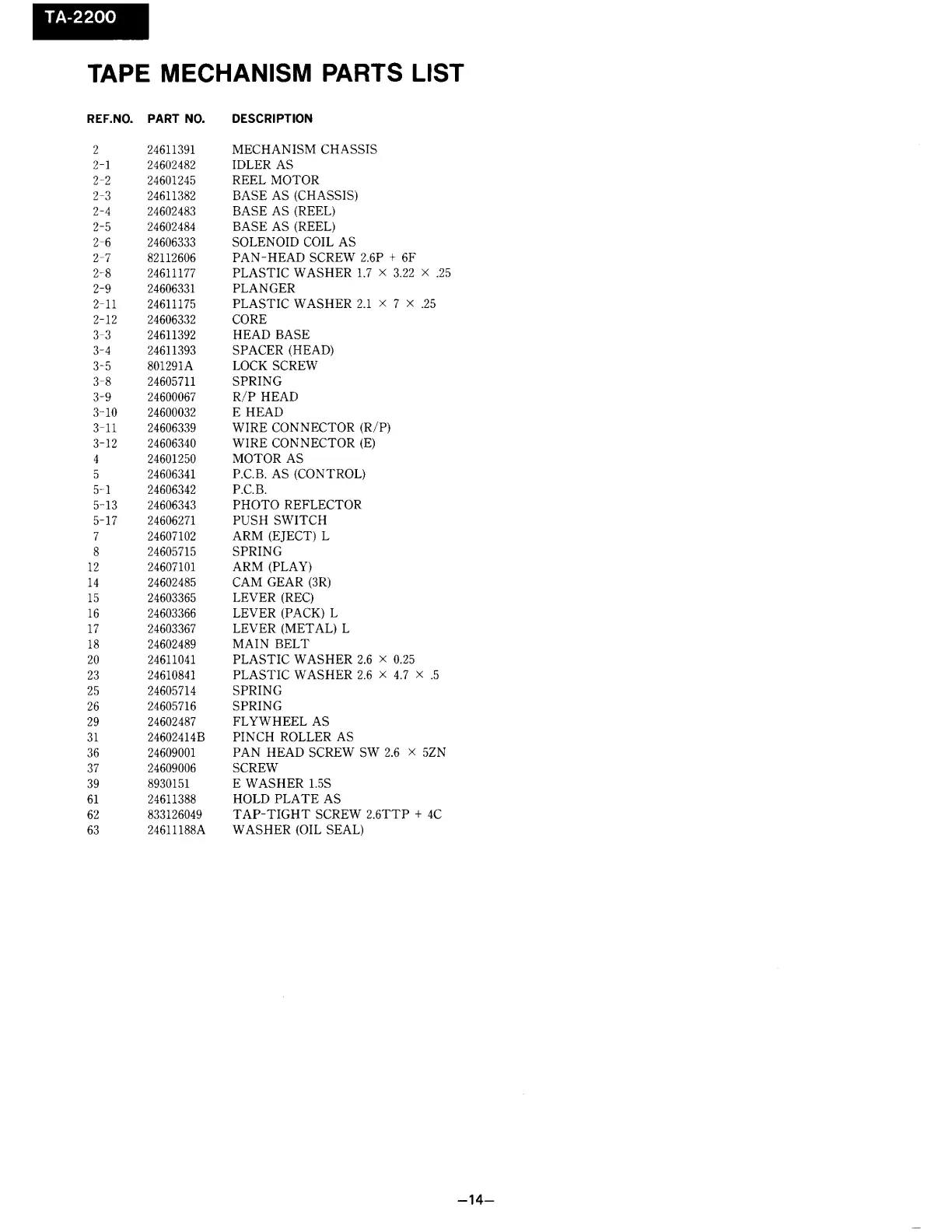

TAPE MECHANISM PARTS LIST
REF.NO.
I I \ | | I ( | | i
Bho Fe
| { { | i
|
Lane aend ee OE 2 8 ee ee SO ee PR too OS
\
{
—t ptt ~] Ww
TST ST GT GT He OD OO GO 08 CO Ca 03 CO DD DD BS FO De Be Go bo be bo he
PART NO.
24611391
24602482
24601245
24611382
24602483
24602484
24606333
82112606
24611177
24606331
24611175
24606332
24611392
24611393
801291A
24605711
24600067
24600032
24606339
24606340
24601250
24606341
24606342
24606343
24606271
24607102
24609715
24607101
24602485
24603365
24603366
24603367
24602489
24611041
24610841
24605714
24605716
24602487
24602414B
24609001
24609006
8930151
24611388
833126049
24611188A
DESCRIPTION
MECHANISM CHASSIS
IDLER AS
REEL MOTOR
BASE AS (CHASSIS)
BASE AS (REEL)
BASE AS (REEL)
SOLENOID COIL AS
PAN-HEAD SCREW 2.6P + 6F
PLASTIC WASHER 1.7 X 3.22 X .25
PLANGER
PLASTIC WASHER 2.1 X 7 X .25
CORE
HEAD BASE
SPACER (HEAD)
LOCK SCREW
SPRING
R/P HEAD
E HEAD
WIRE CONNECTOR (R/P)
WIRE CONNECTOR (E)
MOTOR AS
P.C.B. AS (CONTROL)
P.C.B.
PHOTO REFLECTOR
PUSH SWITCH
ARM (EJECT) L
SPRING
ARM (PLAY)
CAM GEAR (3R)
LEVER (REC)
LEVER (PACK) L
LEVER (METAL) L
MAIN BELT
PLASTIC WASHER 2.6 X 0.25
PLASTIC WASHER 2.6 X 4.7 X 5
SPRING
SPRING
FLYWHEEL AS
PINCH ROLLER AS
PAN HEAD SCREW SW 2.6 X 5SZN
SCREW
E WASHER 1.55
HOLD PLATE AS
TAP-TIGHT SCREW 2.6TTP + 4C
WASHER (OIL SEAL)
—14—
