TA-2200

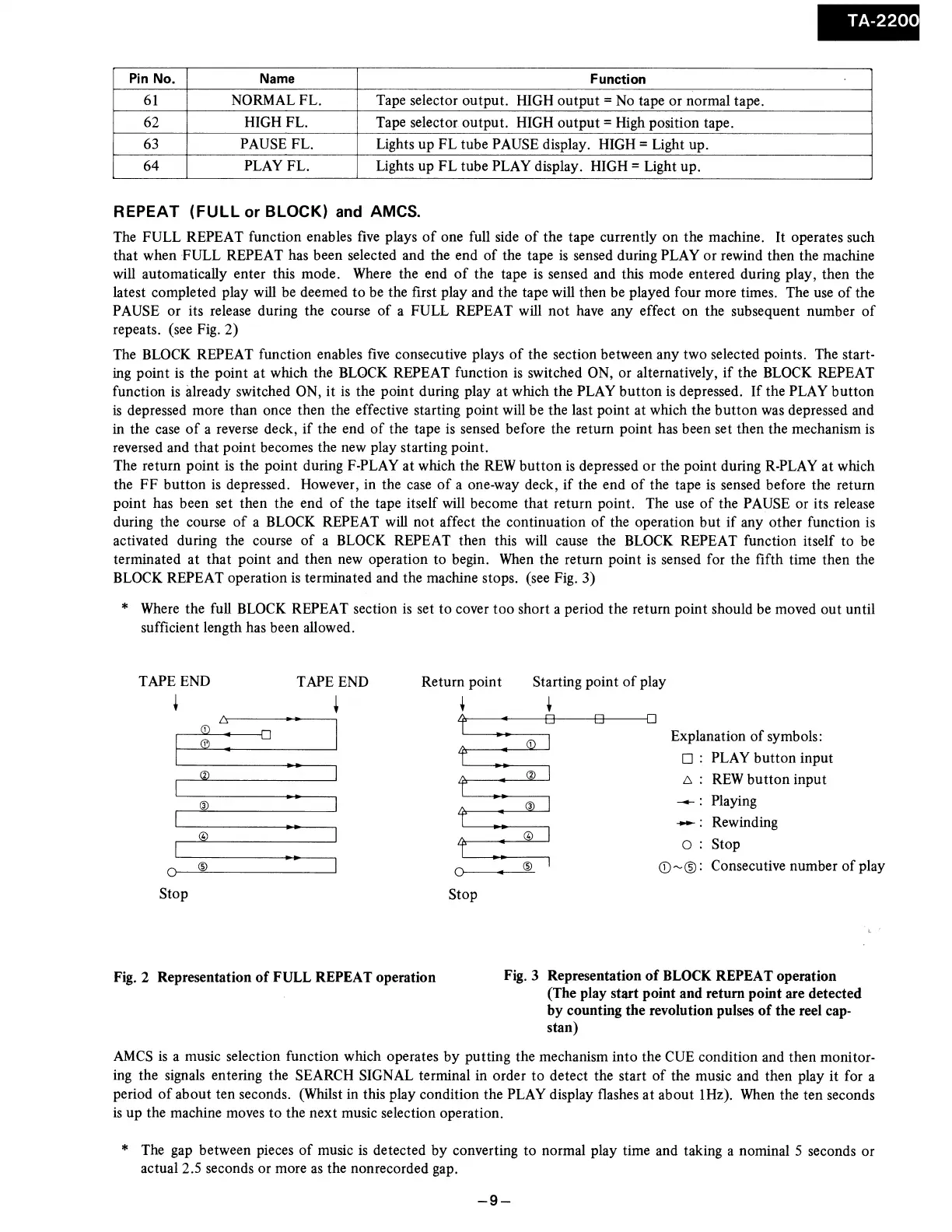

Pintle. [Name=—=SC*dStCi‘“‘SCS™S™S™S™™O™OCFunetion
PAUSE FL. Lights up FL tube PAUSE display. HIGH = Light up.
PLAY FL. Lights up FL tube PLAY display. HIGH = Light up.
REPEAT (FULL or BLOCK) and AMCS.
The FULL REPEAT function enables five plays of one full side of the tape currently on the machine. It operates such
that when FULL REPEAT has been selected and the end of the tape is sensed during PLAY or rewind then the machine
will automatically enter this mode. Where the end of the tape is sensed and this mode entered during play, then the
latest completed play will be deemed to be the first play and the tape will then be played four more times. The use of the
PAUSE or its release during the course of a FULL REPEAT will not have any effect on the subsequent number of
repeats. (see Fig. 2)
The BLOCK REPEAT function enables five consecutive plays of the section between any two selected points. The start-
ing point is the point at which the BLOCK REPEAT function is switched ON, or alternatively, if the BLOCK REPEAT
function is already switched ON, it is the point during play at which the PLAY button is depressed. If the PLAY button
is depressed more than once then the effective starting point will be the last point at which the button was depressed and
in the case of a reverse deck, if the end of the tape is sensed before the return point has been set then the mechanism is
reversed and that point becomes the new play starting point.
The return point is the point during F-PLAY at which the REW button is depressed or the point during R-PLAY at which
the FF button is depressed. However, in the case of a one-way deck, if the end of the tape is sensed before the return
point has been set then the end of the tape itself will become that return point. The use of the PAUSE or its release
during the course of a BLOCK REPEAT will not affect the continuation of the operation but if any other function is
activated during the course of a BLOCK REPEAT then this will cause the BLOCK REPEAT function itself to be
terminated at that point and then new operation to begin. When the return point is sensed for the fifth time then the
BLOCK REPEAT operation is terminated and the machine stops. (see Fig. 3)
* Where the full BLOCK REPEAT section is set to cover too short a period the return point should be moved out until
sufficient length has been allowed.
TAPE END TAPE END Return point Starting point of play
{ ' ' Y
LS
- . Explanation of symbols:
11: PLAY button input
@ @ A: REW button input
© —-: Playing
+>: Rewinding
2 2 O : Stop
5 _® O © ©~@©: Consecutive number of play
Stop
Stop
Fig. 2 Representation of FULL REPEAT operation Fig. 3 Representation of BLOCK REPEAT operation
| (The play start point and return point are detected
by counting the revolution pulses of the reel cap-
stan)
AMCS is a music selection function which operates by putting the mechanism into the CUE condition and then monitor-
ing the signals entering the SEARCH SIGNAL terminal in order to detect the start of the music and then play it for a
period of about ten seconds. (Whilst in this play condition the PLAY display flashes at about 1Hz). When the ten seconds
is up the machine moves to the next music selection operation.
* The gap between pieces of music is detected by converting to normal play time and taking a nominal 5 seconds or
actual 2.5 seconds or more as the nonrecorded gap.
—~g—
