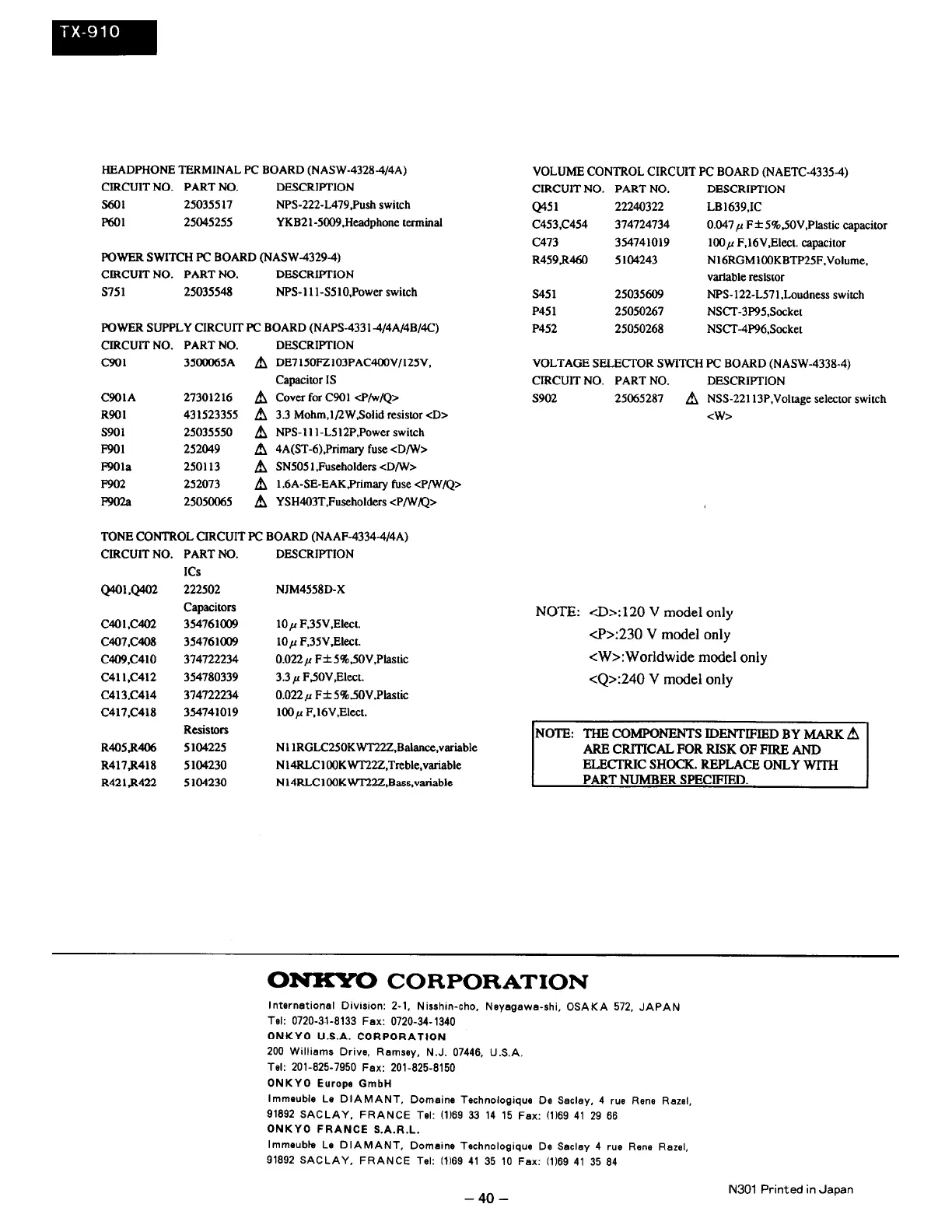

Onkyo TX-910 - Printed Circuit Board Parts List TX-910

HEADPHONE TERMINAL PC BOARD (NASW-432844A)
CIRCUIT NO. PART NO. DESCRIPTION
S601 25035517 NPS-222-L479,Push switch
P601 25045255 YKB2 1 -5009,Headphone terminal
POWER SWITCH PC BOARD (NASW-4329-4)
CIRCUIT NO. PART NO. DESCRIPTION
S751 25035548 NPS-Ill-S51O.Power switch
POWER SUPPLY CIRCUIT PC BOARD (NAPS-4331 -4/4A/4B/4C)
CIRCUIT NO. PART NO. DESCRIPTION
C901 3500065A A DE7150FZ103PAC400V/125V,
Capacitor IS
C901A 273012 16 A Cover for C901 <P/w/Q>
R901 431523355 A 3.3 Mohm,lRW.Solid resistor <r)>
S90 1 25035550 A NPS-111-L512P.Power switch
F90 1 252049 A 4A(STd),Primary fuse <D/W>
F901a 2501 13 A SN505 1,Fuseholders <DM>
F902 252073 A I dA-SE-EAKPrimary fuse <P/W/Q>
F902a 25050065 A YSH403T.Fuseholders <PI\NQ>
VOLUME CONTROL CIRCUIT PC BOARD (NAETC-4335-4)
CIRCUIT NO. PART NO. DESCRIPTION
445 1 22240322 LB1639,IC
C453.C454 374724734 0.047,~ Ff 5%50V,Plastic capacitor
C473
354741019 100
,u F,16V,Elect. capacitor
R4593460
5 104243 N16RGM100KBTP25F,Volume,
variable resistor
S45 1 25035609 NPS- 122-L57 1 .Loudness switch
P45 1 25050267 NSCT-3P95,Socket
P452 25050268 NSCT-4P96,Socket
VOLTAGE SELECTOR SWITCH PC BOARD (NASW-4338-4)
CIRCUIT NO. PART NO. DESCRIPTION
S902 25065287 A NSS-22113P.Voltage selector switch
<W>
TONE CONTROL CIRCUIT
PC BOARD (NAAF-4334-414A)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q401.Q402 222502 NJM4558D-X
capacitors
NOTE: <D>: 120 V model only
C401,C402
354761009 10,~ F.35V.Elect.
C407,C408
354761009 10,~ F.35V.Elect.
<P>:230 V model only
~409,~410 374722234 0.022,~ F* 5%,5OV,Plastic <W>:Worldwide model only
C411,C412 354780339
3.3
p F50VElect. <Q>:240 V model only
C413.C414 374722234 0.022,~ Ff 5850V.Plastic
C417.C418 354741019 100,~ F.16V.Elect.
Resistors
R405,RU 5104225 N1 lRGLC250KWT22Z.Balance.variable
R4178418 5104230 N14RLCl00KWT22Z,Treble,variable
R421Ji422 5 104230 N14RLC1 OOKWT22Z,Bass,variable
ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH
0- CORPORATION
