Remote controller
This remote controller can be used to operate Onkyo CD players, DVD players
and (double) cassette tape decks connected via the z remote control cables.
The buttons in the PROGRAMMABLE AREA TV/VIDEO section can be used to
store functions available with the remote controller of your TV and video equipment.
1. SENDING/LEARNED indicator [45]
2. DIMMER button [31]
3. POWER button [17, 45]
4. SLEEP button [31]
5. SOURCE SELECTOR buttons [28, 34, 48]
6. PROGRAMMABLE AREA TV/VIDEO buttons [45]
7. CD player operation buttons
These buttons are used to operate an ONKYO CD player that bears the z
terminal. (Refer to page 11 for z connection.)
8. DVD player operation buttons
These buttons are used to operate an ONKYO DVD player that bears the z
terminal. (Refer to page 11 for z connection.)
9. CURSOR buttons and ENTER button
[19, 20, 25, 29, 30, 34, 39, 42-44]
10. A/B-SUBROOM/LEARN selector switch [45, 48]
11. TEST TONE button [24]
12. SUR MODE (Surround mode) button [28, 39]
13. MULTI-CH INPUT (multi-channel input) button [29]
14. TUNER operation buttons [28, 34]
15. TAPE deck operation buttons
These buttons are used to operate an ONKYO cassette tape deck player that
bears the z terminal. (Refer to page 11 for z connection.)
16. CH-SEL and LEVEL
yy
yy
y/
uu
uu
u buttons [24]
17. VOLUME
yy
yy
y/
uu
uu
u buttons [26, 28, 29, 45, 48]
18. MUTING/REMOTE SPEAKER button [31, 48]
Display
Display
If a protective film on the surface of the display
makes it difficult to read the display, remove
the protective film.
a. VIDEO-1/2/3 source indicator
b. TAPE-2 MONITOR indicator
c. SPEAKERS MAIN/REMOTE indicator
d. DIGITAL 1/2/3 indicator
e. SURROUND MODE indicators
f. CINEMA Re-EQ (Cinema Re-Equalizer)
indicator
g. 3-DB (3-D bass) indicator
h. MUTING indicator
i. RDS indicator (European model only)
j. AUTO (auto-tuning) indicator
k. FM MUTE indicator
l. STEREO indicator
m. TUNED indicator
n. MEMORY indicator
o. Source display (for recording source/
Sub-room components)
p. REC OUT (Recording Out) indicator
q. MULTI-SOURCE indicator
r. SLEEP indicator
s. IPM (Intelligent Power Management)
indicator
t. Unit indicator
u. MIDNIGHT THEATER indicator
v. Multi-function display

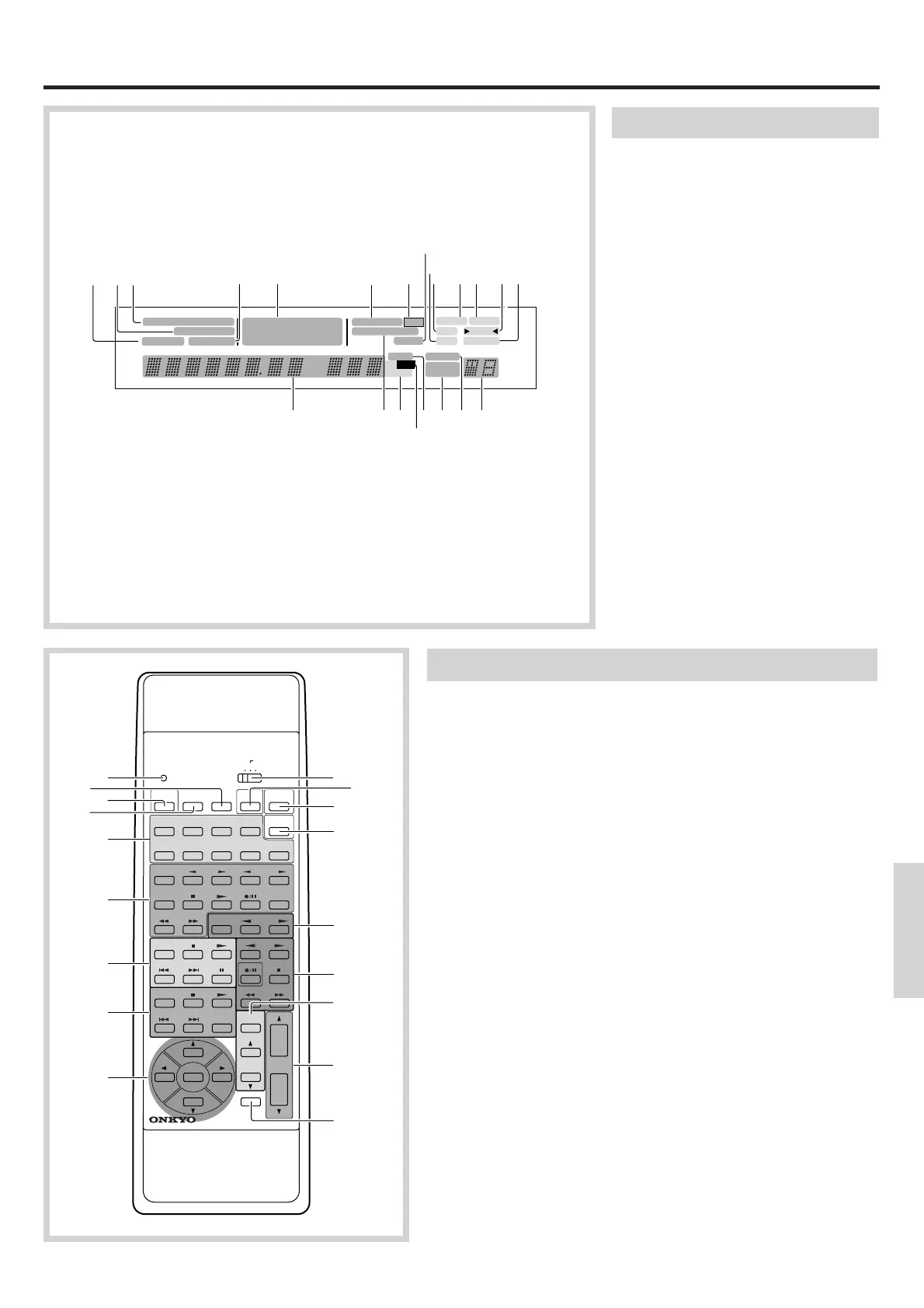

Control positions and names
