Onkyo TX-NR3008

10
En

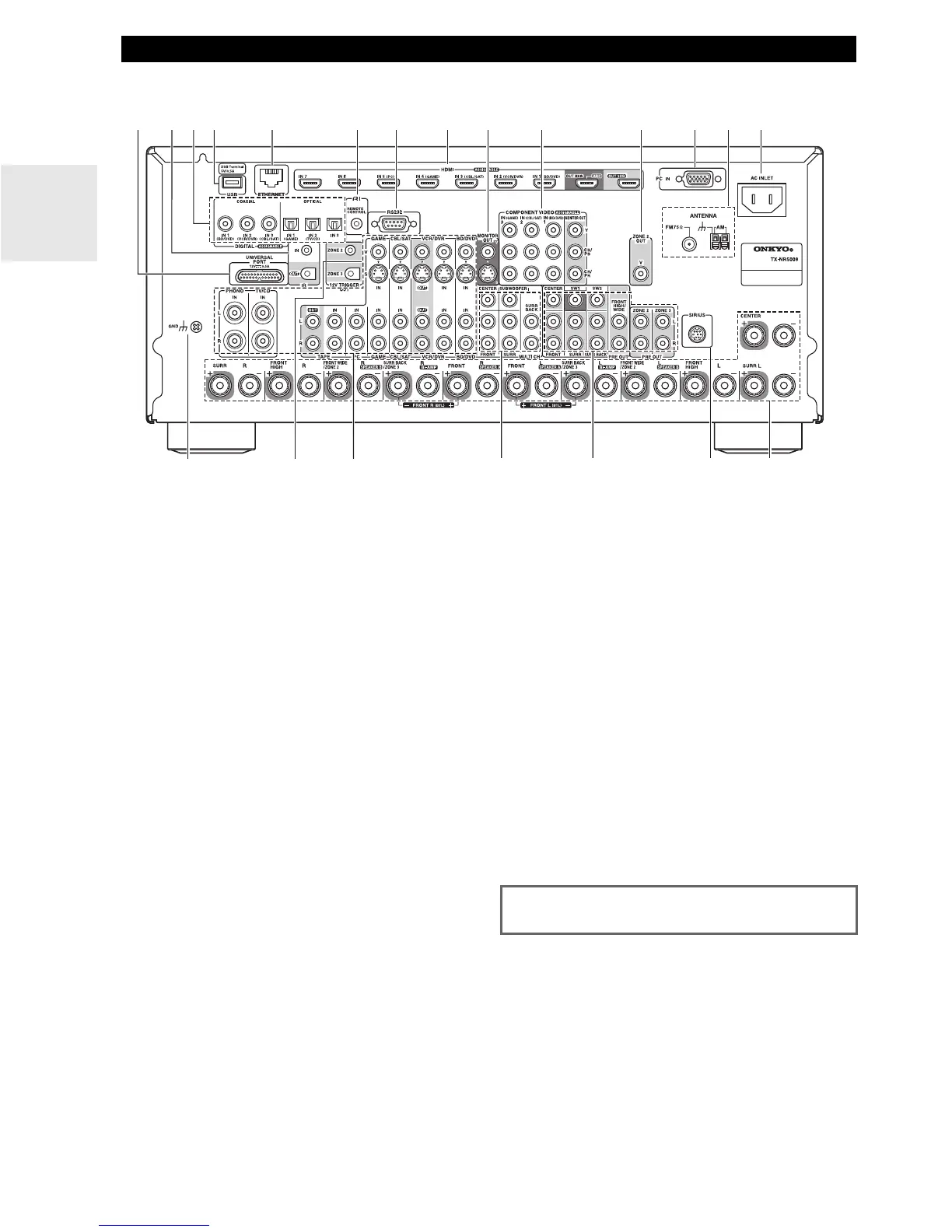

Illustration is based on TX-NR5008.
a UNIVERSAL PORT jack
b IR IN and OUT jacks
c DIGITAL IN COAXIAL and OPTICAL jacks
d USB port (TX-NR5008)
e ETHERNET port
f u REMOTE CONTROL jack
g RS232 terminal
Terminal for control.
h HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
i MONITOR OUT V and S jacks
j COMPONENT VIDEO IN and MONITOR OUT
jacks
k ZONE 2 OUT V jack
l PC IN port
m FM ANTENNA jack and AM ANTENNA terminal
n AC INLET
o GND screw
p ZONE 2 and ZONE 3 12V TRIGGER OUT jacks
q Composite video, S-Video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, PC IN, TAPE IN and OUT, TV/CD IN
and PHONO IN)
r MULTI CH input jacks
(FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R and SUBWOOFER)
s PRE OUT jacks
(FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R, FRONT HIGH/WIDE L/R,
SW1, SW2, ZONE 2 L/R and ZONE 3 L/R)
t SIRIUS antenna jack (North American models)
u Speaker Terminals
(FRONT L/R, CENTER, SURR L/R,
SURR BACK/ZONE 3 L/R, FRONT HIGH L/R and
FRONT WIDE/ZONE 2 L/R)
Rear Panel
a
d
f
g h ji k ml
n
o
qr
s
e
p
tu
bc
See “Connecting the AV Receiver” for connection infor-
mation (➔ 13 to 26).
