Onkyo TX-NR3008

19
En

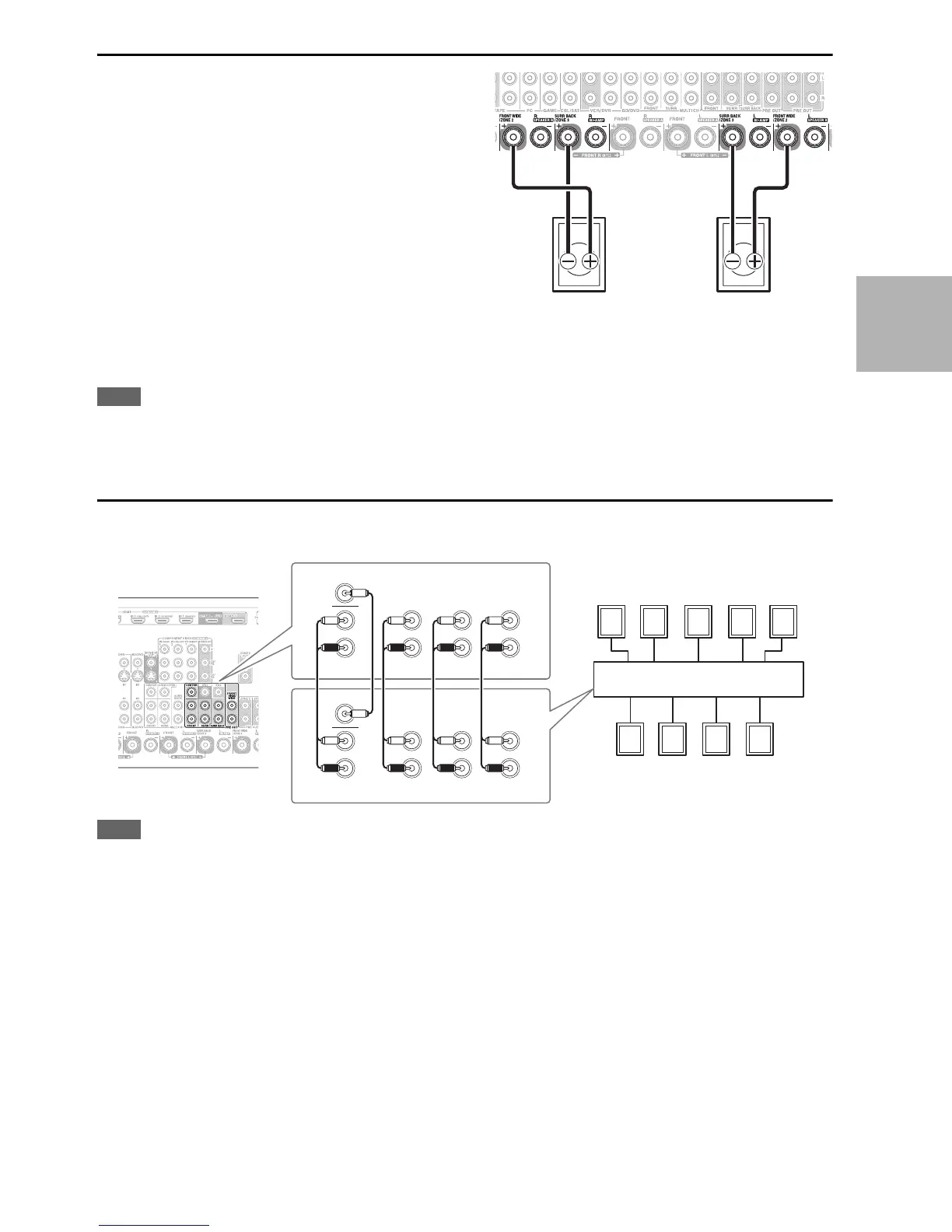

Bridging the Front Speakers B
The FRONT WIDE/ZONE 2 L/R and SURR BACK/
ZONE 3 L/R terminal posts can be used with front wide
speakers and surround back speakers respectively, or bridged
together to provide almost double the output power for the
front speakers B.
• When bridging is used, surround back speakers cannot be
used.
• For bridging, the positive (+) FRONT WIDE/ZONE 2 L/R
and SURR BACK/ZONE 3 L/R terminal posts are used, but
the negative (–) FRONT WIDE/ZONE 2 L/R and SURR
BACK/ZONE 3 L/R terminals are not.
• Once you’ve completed the bridging connections shown
below and turned on the AV receiver, you must set the
“Speakers Type(Front B)” setting to “BTL” to enable
bridging (➔ 51).
• When front speakers B are bridged, front speakers A must be wired normally.
Note
• Use only front speakers with an impedance of 8 ohms or higher for bridging. Failure to do so may seriously damage the AV
receiver.
• When using bridging, make sure that your front speakers can handle the additional power.
Connecting a Power Amplifier
If you want to use a more powerful power amplifier and use the AV receiver as a preamp, connect it to the PRE OUT
jacks, and connect all speakers to the power amplifier.
Left speaker
Right speaker
abc
h
f
dge
i
FRONT HIGH OR
FRONT WIDE
FRONT
HIGH/
WIDE
CENTER
FRONT
FRONT
R
L
R
R
L
L
R
R
L
L
R
L
R
R
L
L
CENTER
SURR
SURR SURR BUCK
SURR BUCK
PRE OUT
aFront left speaker
bCenter speaker
cFront right speaker
dSurround left speaker
eSurround right speaker
fSurround back left speaker
gSurround back right speaker
hFront high/Front wide left speaker
iFront high/Front wide right speaker
Note
• Specify “None” for the channel that you don’t want to output
(➔ 52).
Power amplifier
