Front & Rear Panels
For detailed information, see the pages in parentheses.
a 8ON/STANDBY button (20)
b ZONE 2 and ZONE 3 buttons (46, 71)
c Remote control sensor (5)
d Display (9)
e LISTENING MODE buttons (37)
f DIMMER button (North American and Taiwanese
models) (45)
g MEMORY button (32)
h TUNING MODE button (31)
i SETUP button (50)
j TUNING q/w (31), PRESET e/r (32), cursor and
ENTER buttons
k RETURN button
l MASTER VOLUME control and indicator (23)
m MUSIC OPTIMIZER button and indicator (North
American and Taiwanese models) (46, 49)
n PHONES jack (46)
o AUX INPUT HDMI/MHL jack (16)
p TONE and Tone Level buttons (48)
q Input selector buttons (23)
r DISPLAY button (45)
s VIDEO jack (17)
t USB port (17)
u SETUP MIC jack (35)
v HYBRID STANDBY indicator (51)
w PURE AUDIO button and indicator (European,
Australian and Asian models) (37)
x RT/PTY/TP button (European, Australian and
Asian models) (33)

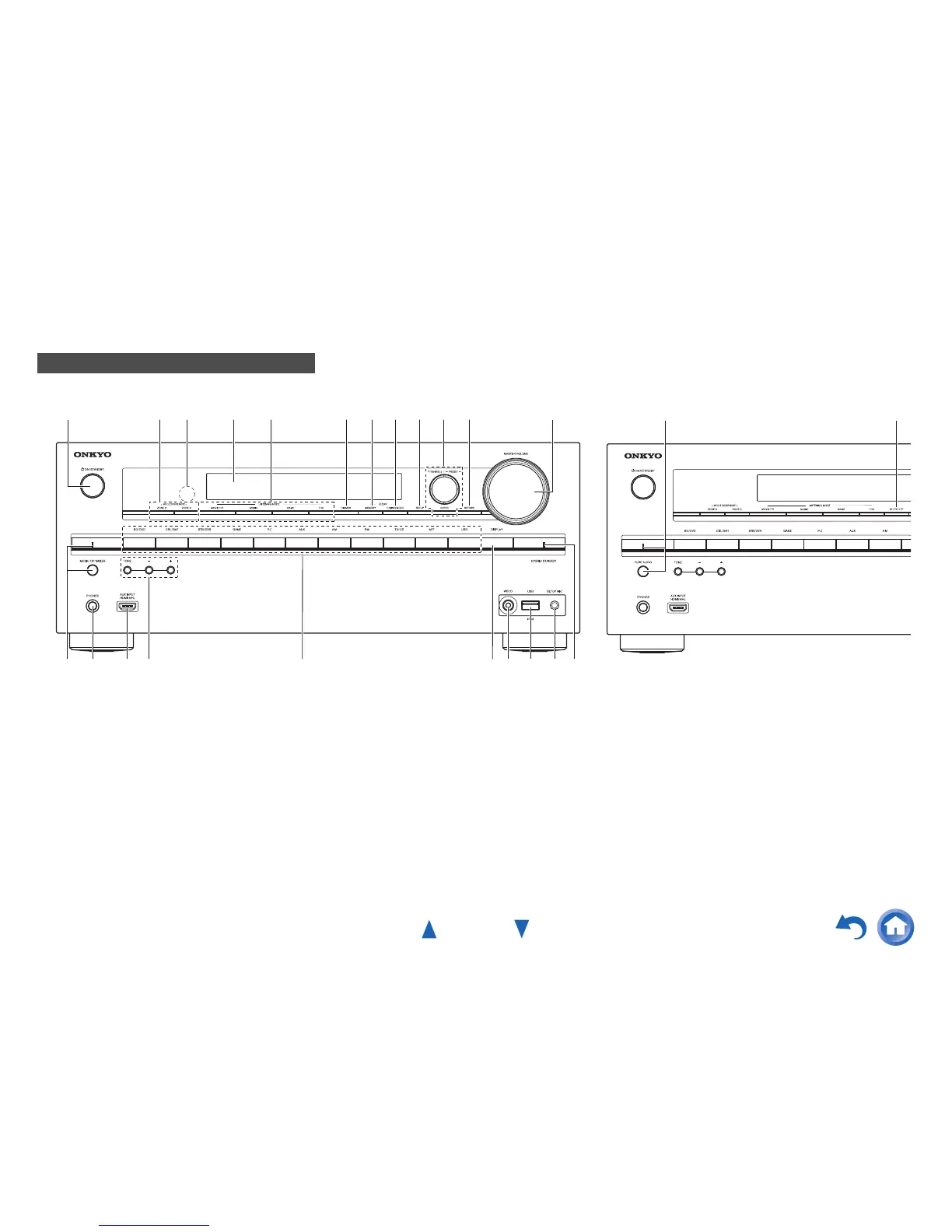

Front Panel
(North American and Taiwanese models) (European, Australian and Asian models)
a c ed f ghij k lb
q
r t
n pom
s u
v
w x
