TV
12

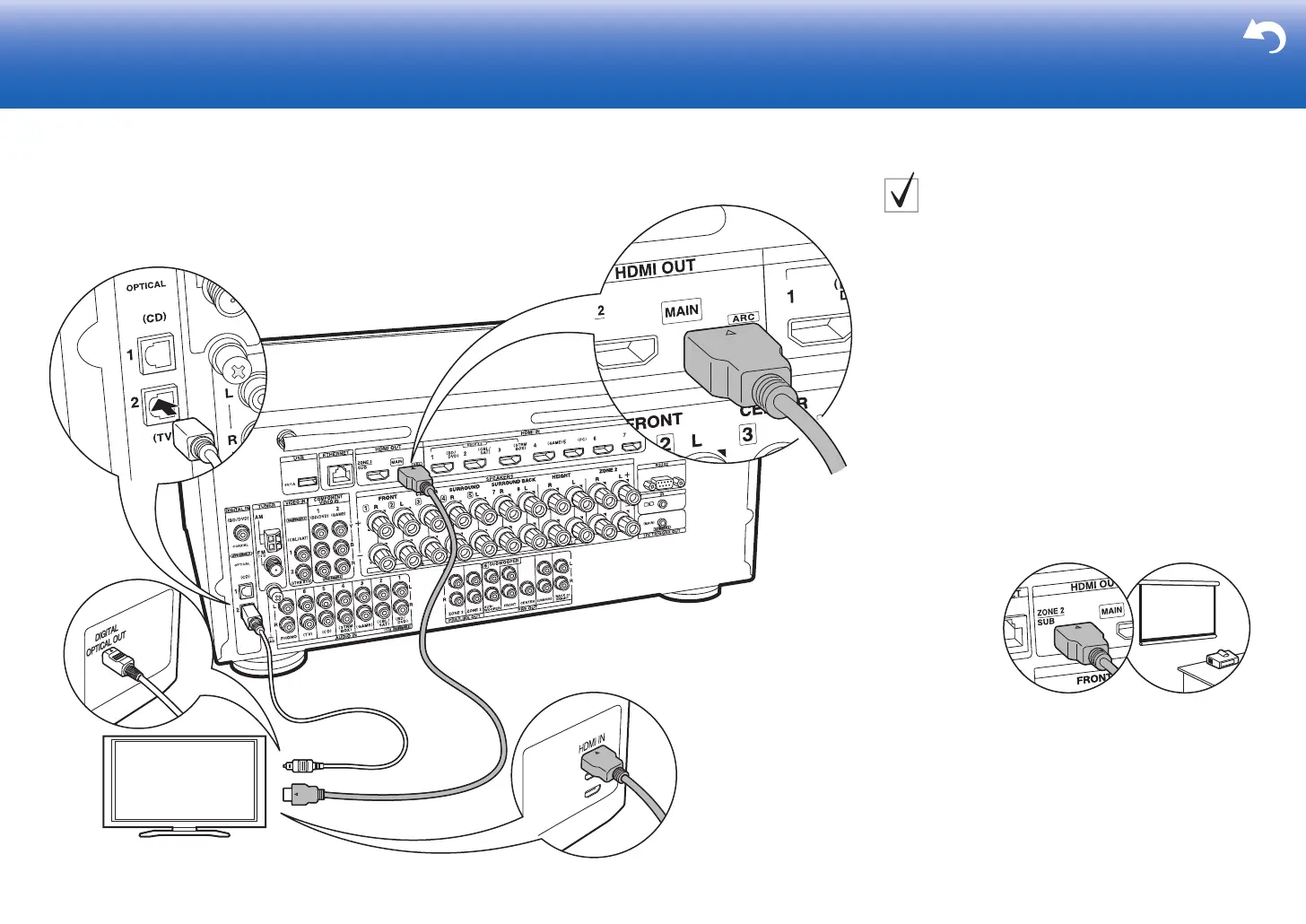

1 HDMI cable, 2 Digital optical cable
if you have:
Non-ARC TV
This unit is connected between your TV and AV
components. If you connect two or more AV components,
you can select the video displayed on the TV and the
audio output from this unit by changing the input selector.
This describes the connections for a TV that does not
support the ARC (Audio Return Channel) feature. By
connecting with both an HDMI cable and a digital optical
cable, you can not only output the video input to this unit
to the TV, but you can also play the sound from the TV
through this unit.
If the TV doesn't have a DIGITAL OPTICAL OUT jack, use
an analog audio cable and connect the TV's ANALOG
AUDIO OUT jack to the AUDIO IN TV jack on this unit.
0 Connection with a digital optical cable is not necessary
if you will watch TV through a device such as a cable
set-top box (that is, not use a tuner built into the TV)
that you have connected to the INPUT jack on this unit.
Another TV or projector can be connected to the HDMI OUT SUB
jack. This jack does not support ARC. For details about how to
output video from the HDMI OUT SUB jack (P22)

Onkyo TX-NR757 Specifications

General

Audio Channels	7.2
HDMI Outputs	2
Dolby Atmos	Yes
DTS:X	Yes
Wi-Fi	Yes
Bluetooth	Yes
Multi-room Capability	Yes
4K Ultra HD Pass-through	Yes
AirPlay	Yes
Phono Input	Yes
Zone 2	Yes
Frequency Response	10 Hz - 100 kHz
Power Output	100W per channel (8 ohms, 20Hz-20kHz, 0.08% THD, 2 channels driven)
HDMI Inputs	8
HDR Support	Yes (HDR10, Dolby Vision)
THX Certified	Yes
THD	0.08%
Inputs/Outputs	USB Port, Ethernet Port
Supported Audio Formats	Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio
Video Support	HDR10, Dolby Vision
Dimensions	435 x 381 x 180 mm
