42
En
Explanatory Notes
Main Menu Input/Output Assign
Monitor Out

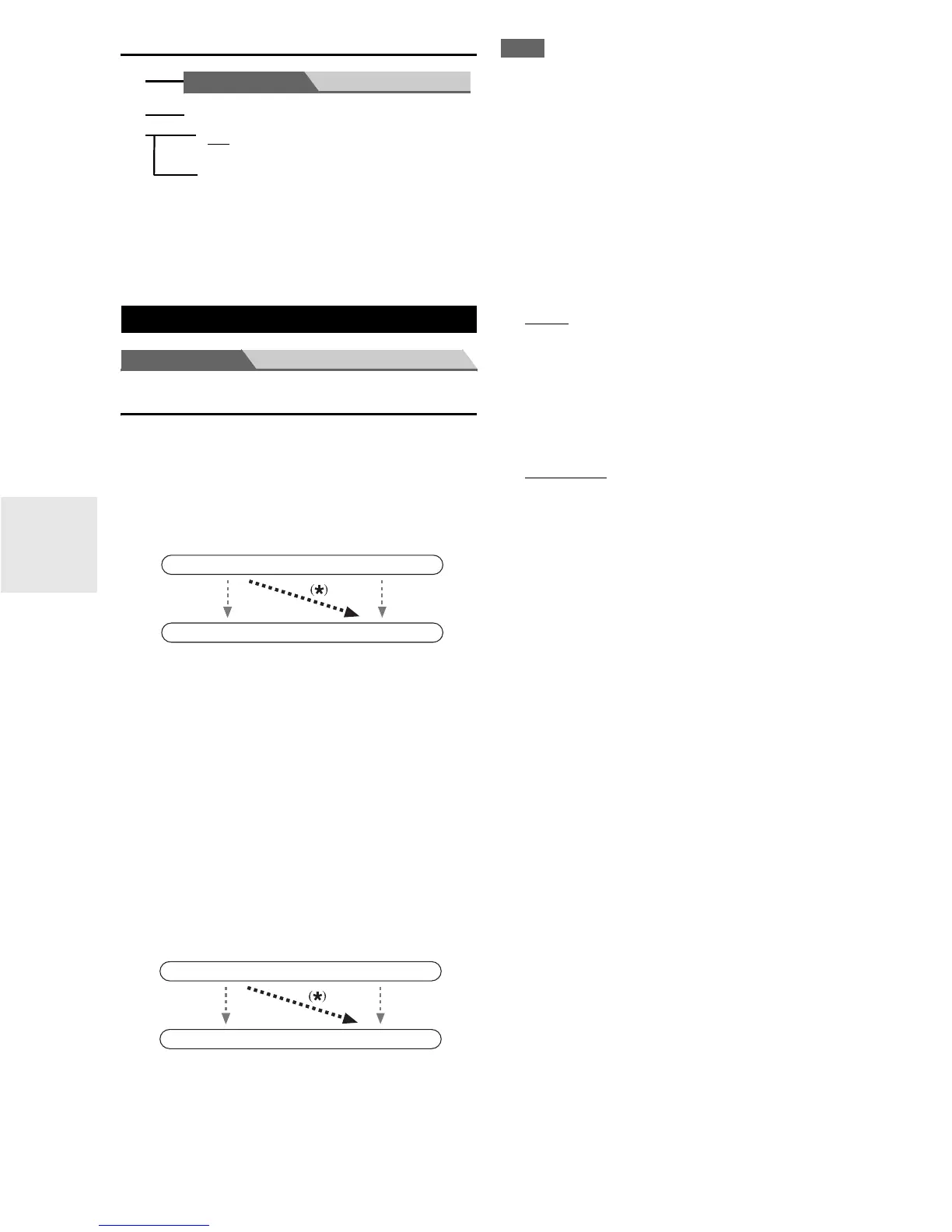

If you connect your TV to HDMI output, “Monitor Out”
setting is automatically set so that the onscreen setup
menus are displayed and composite video, S-Video, and
component video sources are upconverted
*
and output.
On the “Monitor Out” settings, you can select whether or
not to have the video sources’ images output through the
HDMI output, as well as whether to have the onscreen
setup menu output through the HDMI output or through
an analog output.
If you connect your TV to the COMPONENT VIDEO
MONITOR OUT (not the HDMI output), “Monitor Out”
setting is automatically set so that the onscreen setup
menus are displayed and composite video and S-Video
sources are upconverted
*
and output.
Note
• You can specify the output resolution for the HDMI output and
COMPONENT VIDEO MONITOR OUT and have the AV
receiver upconvert the picture resolution as necessary to match
the resolution supported by your TV (➔ 42).
• See “Video Connection Formats” (➔ 22) for charts showing
how the “Monitor Out” and “Resolution” settings (➔ 43)
affect the video signal flow through the AV receiver.
■ Monitor Out
(North American and Taiwan models)
` Analog:
Select this if your TV is connected to the COMPO-
NENT VIDEO MONITOR OUT, MONITOR OUT
S, or MONITOR OUT V.
` HDMI
:
Select this if your TV is connected to the HDMI
OUT.
(European, Australian and Asian models)
` Analog:
Select this if your TV is connected to the COMPO-
NENT VIDEO MONITOR OUT, MONITOR OUT
S, or MONITOR OUT V.
` HDMI Main
:
Select this if your TV is connected to the HDMI
OUT MAIN.
` HDMI Sub:
Select this if your TV is connected to the HDMI
OUT SUB.
` Both:
Select this if your TVs are connected to the HDMI
OUT MAIN and HDMI OUT SUB. Video signals
are output from both HDMI outputs at the resolution
supported by both TVs.
` Both(Main):
Select this if your TVs are connected to the HDMI
OUT MAIN and HDMI OUT SUB. Video signals
are output from both HDMI outputs but HDMI OUT
MAIN will become a priority; depending on the reso-
lution, video signals may not be output from HDMI
OUT SUB.
` Both(Sub):
Select this if your TVs are connected to the HDMI
OUT MAIN and HDMI OUT SUB. Video signals
are output from both HDMI outputs but HDMI OUT
SUB will become a priority; depending on the reso-
lution, video signals may not be output from HDMI
OUT MAIN.
Input/Output Assign
a Menu selection
b Setting target
c Setting options (default setting underlined)
Main Menu Speaker Setup
■ Subwoofer
` Yes
:
Select if a subwoofer is connected.
` No:
Select if no subwoofer is connected.
a
b
c
IN
OUT
Composite video, S-Video,
component video
Composite video, S-Video,
component video
HDMI
HDMI
IN
OUT
Composite video, S-Video
Composite video, S-Video
Component video
Component video
