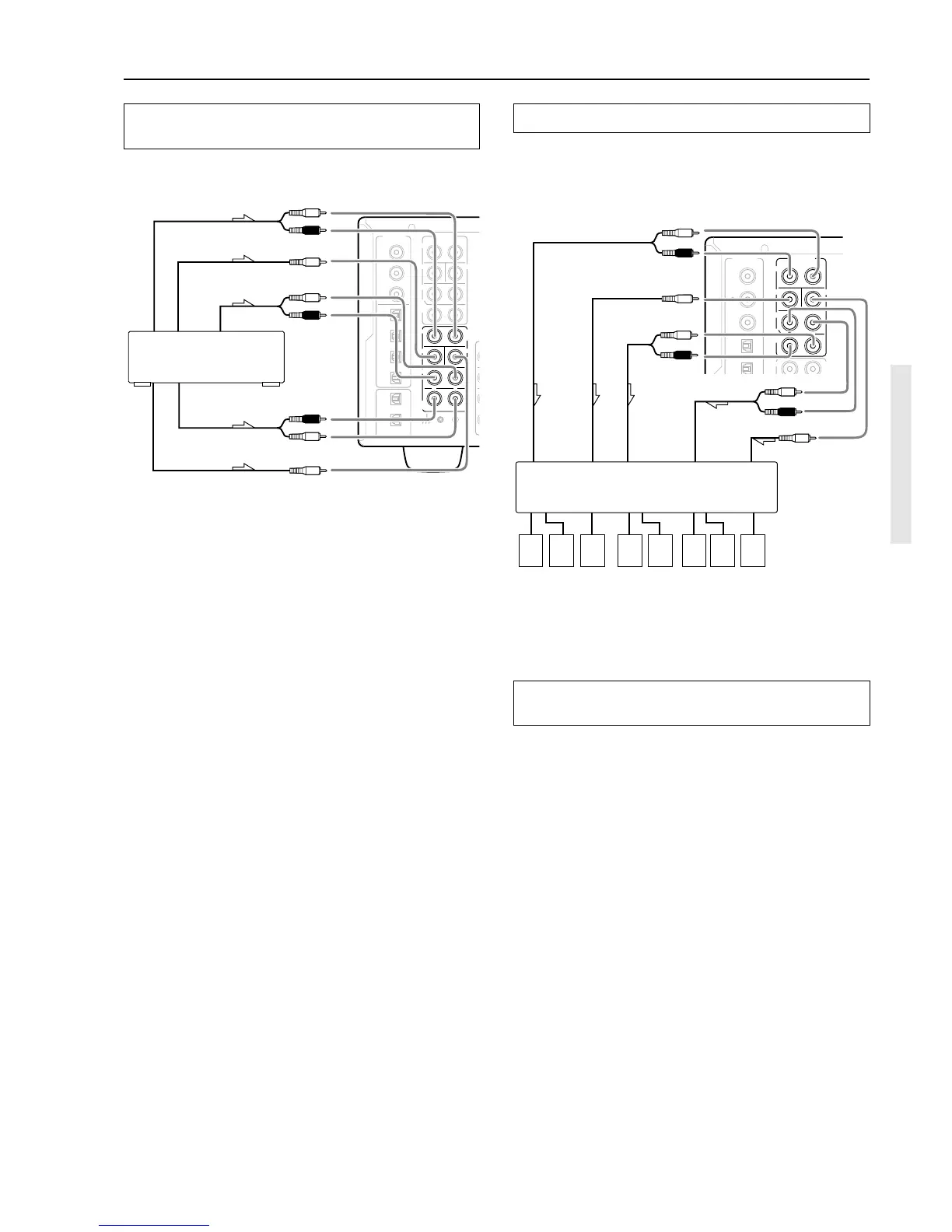

Connecting auxiliary power amplifier
These jacks are for connecting auxiliary power amplifier.
You can use an auxiliary power amplifiers to listen at louder
volumes than you can with the TX-NR900/900E alone. When using
a power amplifier, connect each speaker to the power amplifier.
Connecting to an external device with 12V
TRIGGER terminal
When the TX-NR900/900E is in the Zone 2 mode, this terminal
outputs at 12 V and 100 mA. If a component in the remote zone has
a 12V TRIGGER IN terminal, connect it to this jack so that it is
turned on automatically when the Zone 2 mode is selected.
Connecting to devices with analog multi channel
output
Connect a DVD player, MPEG decoder, or other component that has
a multi channel port for 5.1 channel or 7.1 channel output.
