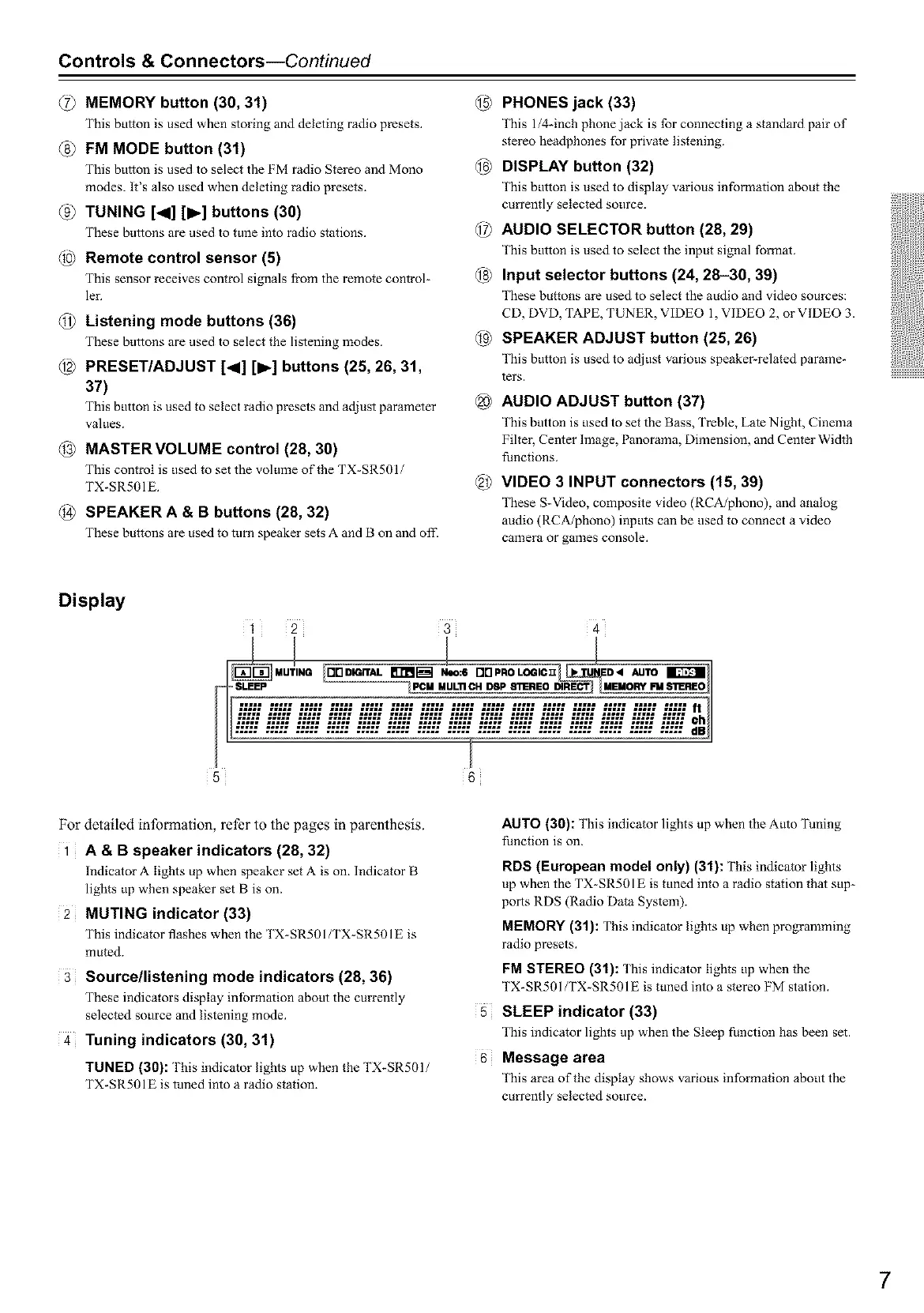

Controls & Connectors--Continued
(7_ MEMORY button (30, 31)
This button is used when storing and deleting radio presets.
@_ FM MODE button (31)
This button is used to select the FM radio Stereo and Mono
modes. It's also used when deleting radio presets.
(9) TUNING [_1] [It,-] buttons (30)
These buttons are used to tune into radio stations.
_ Remote control sensor (5)
This sensor receives control signals fi-omthe remote control-
ler.
_1_ Listening mode buttons (36)
These buttons are used to select the listening modes.
_2_ PRESET/ADJUST [_1] [1_] buttons (25, 26, 31,
37)
This button is used to select radio presets and adjust parameter
values.
@_ MASTERVOLUME control (28, 30)
This control is used to set the volume of the TX-SRh0I/
TX-SRh01E.
_4_ SPEAKER A & B buttons (28, 32)
These buttons are used to turn speaker sets A and B on and off2
@ PHONES jack (33)
This 1/4-inch phone jack is for connecting a standard pail- of
stereo headphones for private listening.
@ DISPLAY button (32)
This button is used to display various infolTnation about the
currently selected source.
@ AUDIO SELECTOR button (28, 29)
This button is used to select the input signal format.
1@ Input selector buttons (24, 28-30, 39)
These buttons are used to select the audio and video sources:
CD, DVD, TAPE, TUNER, VIDEO 1, VIDEO 2, or VIDEO 3.
1@ SPEAKER ADJUST button (25, 26)
This button is used to adjust various speaker_related parame-
ters.
®
®
AUDIO ADJUST button (37)
This button is used to set the Bass, Treble, Late Night, Cinema
Filter, Center Image, Panorama, Dimension, and Center Width
functions.
VIDEO 3 INPUT connectors (15, 39)
These S-Video, composite video (RCA/phono), and analog
audio (RCA/phono) inputs can be used to connect a video
camera or games console.
Display
For detailed information, refer to the pages in parenthesis.
i A & B speaker indicators (28, 32)
Indicator A lights up when speaker set A is on. Indicator B
lights up when speaker set B is on.
2 MUTING indicator (33)
This indicator flashes when the TX+SRh01/TX+SRh01E is
muted.
3 Source/listening mode indicators (28, 36)
These indicators display information about the currently
selected source and listening mode.
4 Tuning indicators (30, 31)
TUNED (30): This indicator lights up when the TX-SRh01/
TX-SR501E is tuned into a radio station.
AUTO (30): This indicator lights up when the Auto Tuning
function is on.
RDS (European model only) (31): This indicator lights
up when the TX-SR501E is tuned into a radio station that sup_
ports RDS (Radio Data System).
MEMORY (31): This indicator lights up when programming
radio presets.
FM STEREO (31): This indicator lights up when the
TX-SR501/TX-SRh01E is tuned into a stereo FM station.
5; SLEEP indicator (33)
This indicator lights up when the Sleep function has been set.
6 Message area
This area of the display shows various information about the
currently selected source.
