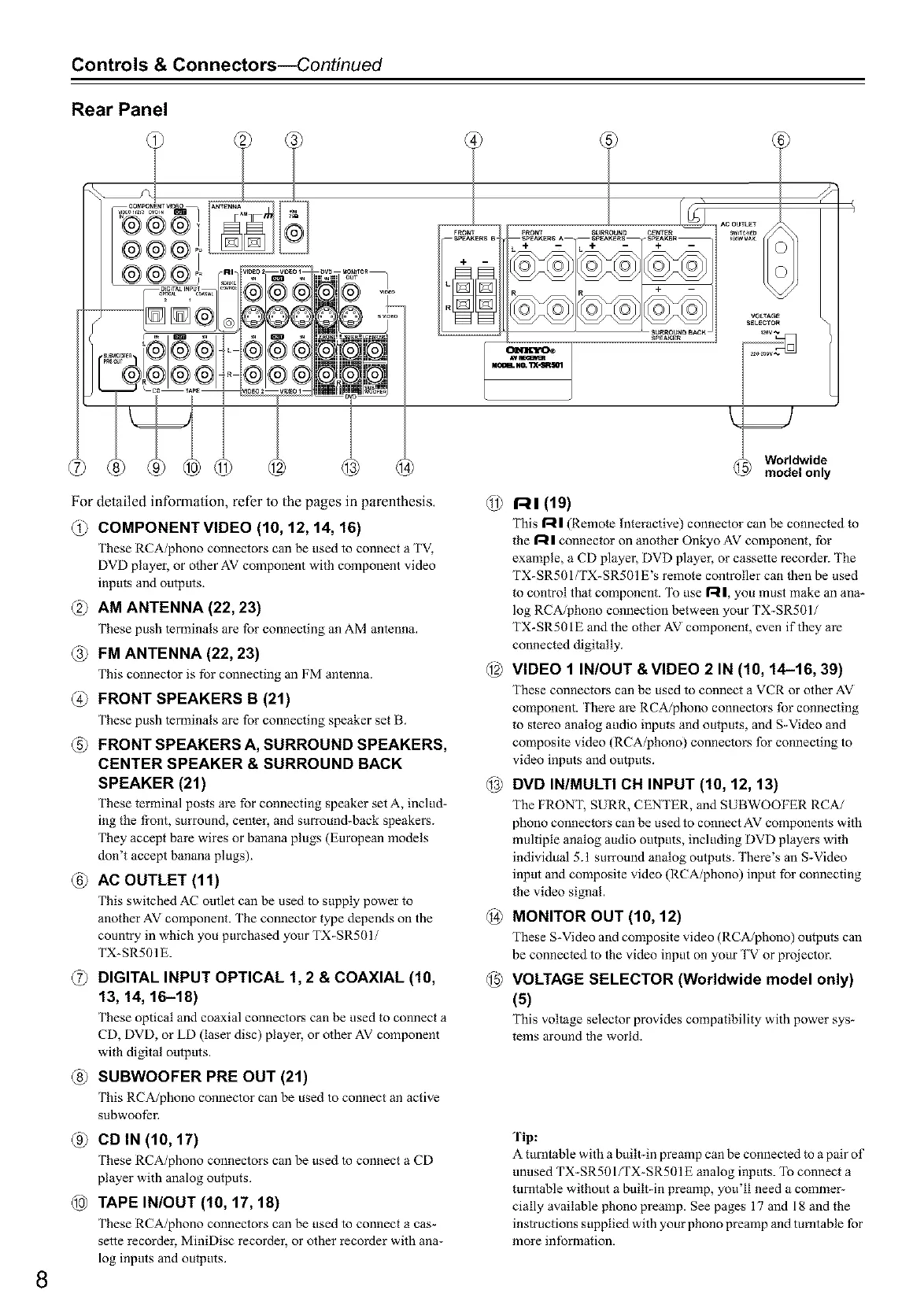

Controls & Connectors--Continued
8
RearPanel
@
s_AI
ERS B S_EAKERS__A
AvmEcm_mm
SUR_OUN_ CENTER
ACOUTLET
VO_AG_
SE_ECT_
\
Worldwide
model only
For detailed information, refer to the pages in parenthesis,
@ COMPONENTVIDEO 110, 12, 14, 16)
These RCA/phono connectors can be used to connect a TV,
DVD player, or other AV component with component video
inputs and outputs.
(.2.) AM ANTENNA 122, 23)
These push telTninals are for connecting an AM antenna.
@ FM ANTENNA (22, 23)
This connector is for connecting an FM antenna.
@ FRONT SPEAKERS B (21)
These push telTninals are for connecting speaker set B.
@ FRONT SPEAKERS A, SURROUND SPEAKERS,
CENTER SPEAKER & SURROUND BACK
SPEAKER (21)
These terminal posts are for connecting speaker set A, includ-
ing the fi-ont, surround, center, and surround*back speakers.
They accept bare wires or banana plugs (European models
don't accept banana plugs).
@ AC OUTLET (11)
This switched AC outlet can be used to supply power to
another AV component. The connector type depends on the
country in which you purchased your TX-SR501/
TX*SR501E.
®
@
@
@
DIGITAL INPUT OPTICAL 1, 2 & COAXIAL (10,
13, 14, 16-18)
These optical and coaxial connectors can be used to connect a
CD, DVD, or LD (laser disc) player, or other AV component
with digital outputs.
SUBWOOFER PRE OUT 121)
This RCA/phono connector can be used to connect an active
subwoofer.
CD IN (10, 17)
These RCA/phono connectors can be used to connect a CD
player with analog outputs.
TAPE IN/OUT 110, 17, 18)
These RCA/phono connectors can be used to connect a cas-
sette recorder, MiniDisc recorder, or other recorder with ana*
log inputs and outputs.
@ r_l (19)
This _ I (Remote Interactive) connector can be connected to
the _ | connector on another Onkyo AV component, for
example, a CD player, DVD player, or cassette recorder. The
TX-SR501/TX*SR501E's remote controller can then be used
to control that component. To use _ |, you must make an ana*
log RCA/phono connection between your TX_SR501/
TX-SR501E and the other AV component, even if they are
connected digitally.
@ VIDEO 1 IN/OUT &VIDEO 2 IN 110, 14-16, 39)
These connectors can be used to connect a VCR or other AV
component. There are RCA/phono connectors for connecting
to stereo analog audio inputs and outputs, and S-Video and
composite video (RCA/phono) connectors for connecting to
video inputs and outputs.
@_ DVD IN/MULTI CH INPUT (10, 12, 13)
The FRONT, SURR, CENTER, and SUBWOOFER RCA/
phono connectors can be used to connect AV components with
multiple analog audio outputs, including DVD players with
individual 5.1 surround analog outputs. There's an S-Video
input and composite video (RCA/phono) input for connecting
the video signal.
@ MONITOR OUT (10, 12)
These S-Video and composite video (RCA/phono) outputs can
be connected to the video input on your TV or projector.
@ VOLTAGE SELECTOR (Worldwide model only)
(s)
This voltage selector provides compatibility with power sys-
tems around the world.
Tip:
A turntable with a builbin preamp can be connected to a pair of
unused TX_SR50 I/TX*SR501E analog inputs. To connect a
turntable without a builMn preamp, you'll need a commer*
cially available phono preamp. See pages 17 and 18 and the
instructions supplied with your phono preamp and turntable for
more information.
