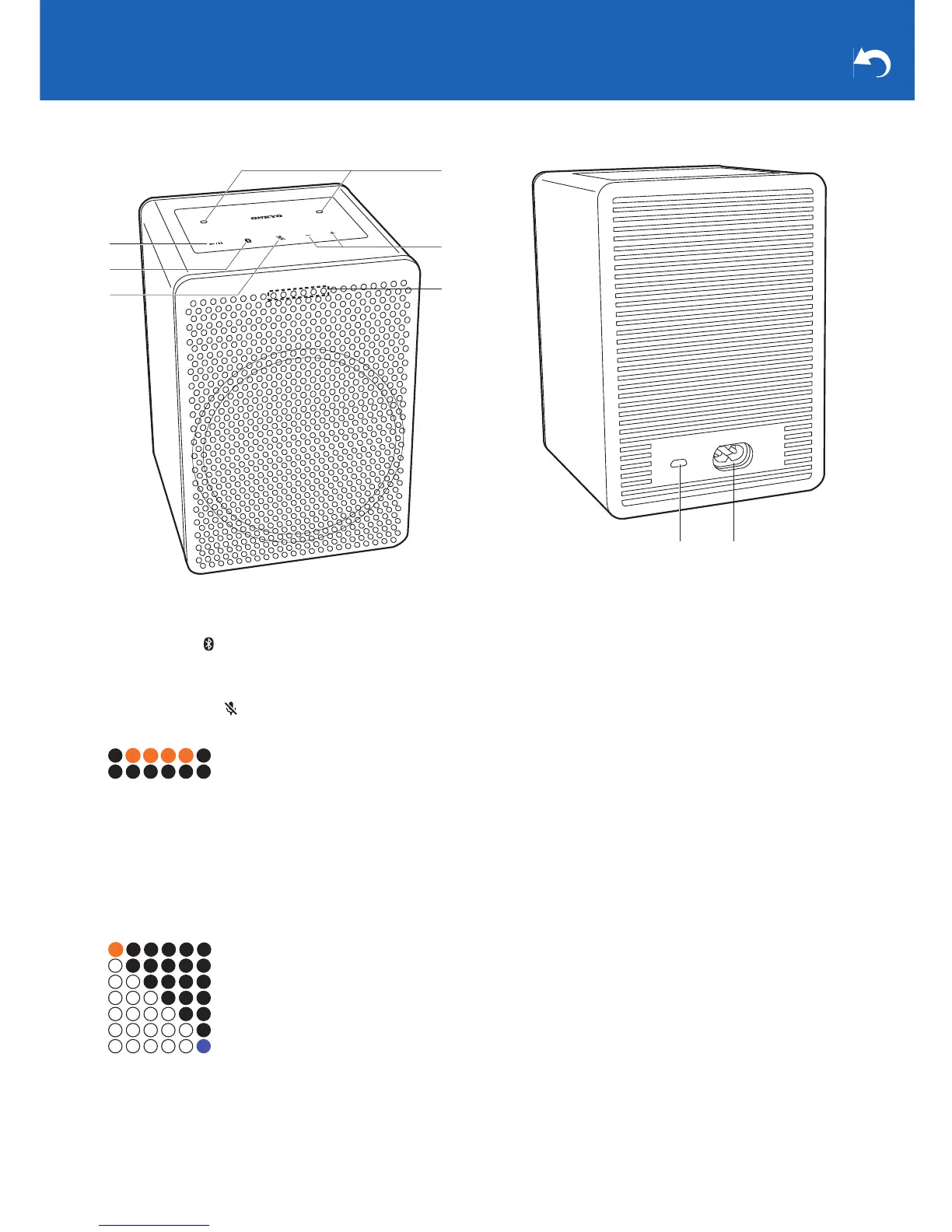

Part Names
Front
1. Play/pause (1/;) button: Used for play operations in the
Music app, etc. Press and hold to call up the Google
Assistant. (P4)
2. BLUETOOTH ( ) button: Used for pairing and
connecting with BLUETOOTH wireless technology
enabled devices. Refer to "BLUETOOTH
®
Playback" (P5)
for pairing and connection instructions.
3. Microphone mute ( ) button: Turn on or off microphone
mute. The LED indicators light as follows each time
microphone mute is turned on or off.
: Microphone mute on
: Microphone mute off
Also press and hold the microphone mute button for
10 seconds to initialize the settings of this unit. (P3)
0 Google Assistant will not respond when you call it while
microphone mute is on.
4. Microphone: Used when talking to Google Assistant.
5. Volume (i/j) buttons: Allows you to adjust the volume.
You can adjust the volume between 0 and 50. When you
press the volume buttons, the LED indicators light
according to the volume level for 3 seconds as follows.
When the volume is "0", the indicator stays orange.
: 0
: 1 to 9
: 10 to 19
: 20 to 29
: 30 to 39
: 40 to 49
: 50
0 The brightness of the white LEDs let you check the volume
at each single level. The LEDs become brighter when you
increase the volume and get dimmer as you reduce the
volume.
6. LED indicators: The status of this unit is indicated by the
colors and illumination status of the LEDs.
Back
7. Micro USB port: This is not available for use. It is only used
when the unit is being serviced.
8. AC IN terminal: Connect the supplied power cord.
To Next Page
