DIGITAL LED TV - USER MANUAL
13
CONNECTING DEVICES (CONT.)
CABLE/SATELLITE BOX (CONT.)
COMPOSITE (AV)
2
VIDEO / Y
DIGI
T
A
L
A
U
D
I
O O
UT
(OPTICAL)
AUDI O IN
P
b
P
r
1
ARC
LINE OUT
YELLOW
RED
WHITE

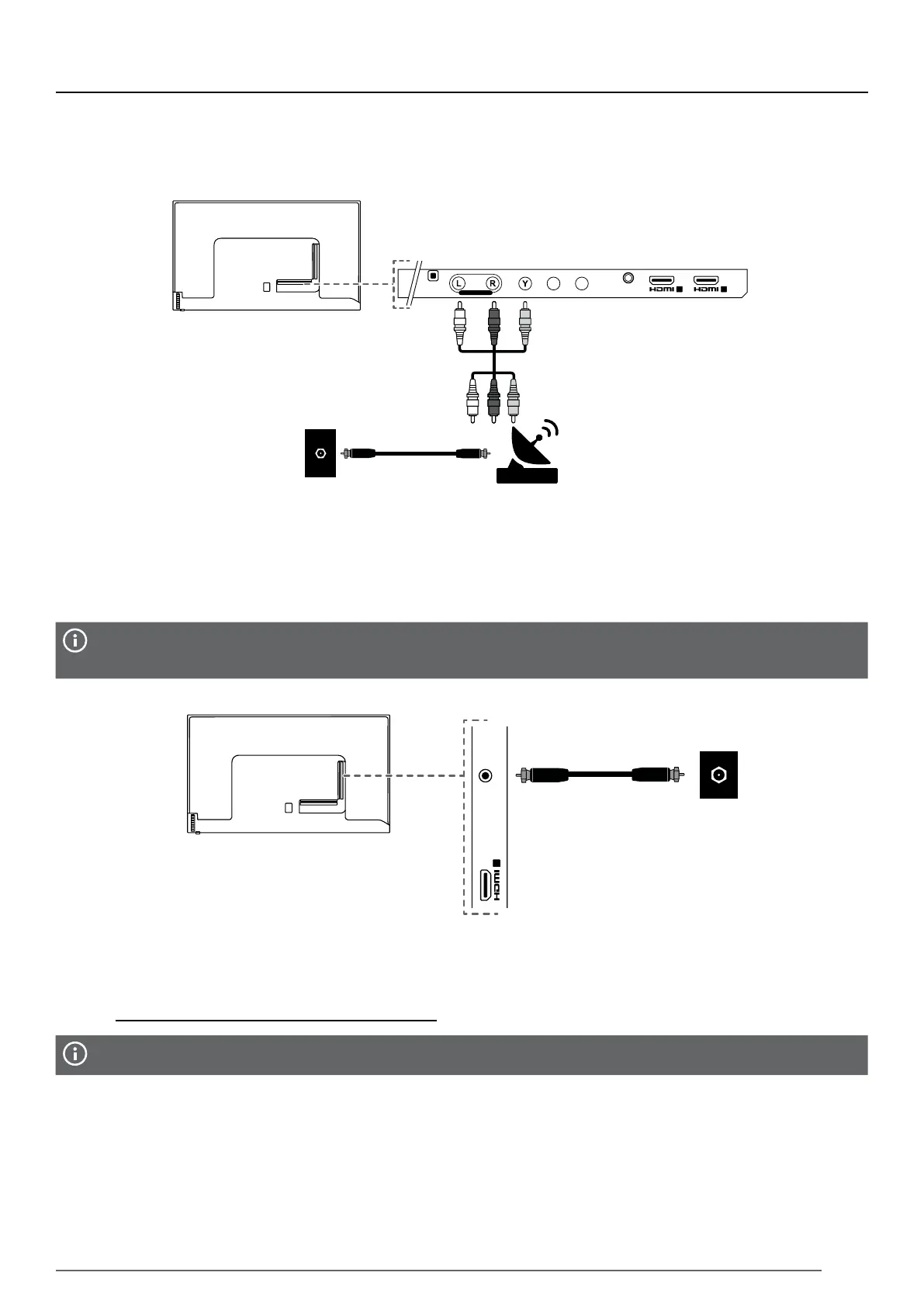

1. Connect an AV (composite) cable (not included) to the AV jacks on your cable/satellite box.
2. Connect the other end of the cable to the AUDIO IN and VIDEO/Y jacks on the back of your TV. The cable
connectors’ colors should match the TV jacks’ colors.
3. Connect a coaxial cable (not included) from your cable/satellite box to a coaxial wall jack.
4. If you’re connecting a cable box, follow instructions from your cable service provider to search for channels.
• Make sure that you match the connectors’ colors with the jacks you are connecting them to.
• To use the cable/satellite box, press the INPUT button on your remote control repeatedly to select Component/
AV.
COAXIAL
4
DTV / TV
1. Connect a coaxial cable (not included) to your cable/satellite box.
2. Connect the other end of the cable to the DTV/TV jack on your TV.
3. Connect the other end of the coaxial cable to a coaxial wall jack.
4. See “SEARCHING FOR CHANNELS” on page 28 to run a channel scan.
• To use the cable/satellite box, press the INPUT button repeatedly to select TV.
• If you are connecting your TV to a coaxial wall jack, go to your TV channel settings and switch to Cable.
AV cable
Coaxial cable
Coaxial wall jack
Cable/Satellite box
PRODUCT MAY VARY.
PRODUCT MAY VARY.
Coaxial
wall jack
Coaxial
cable
To Next Page
