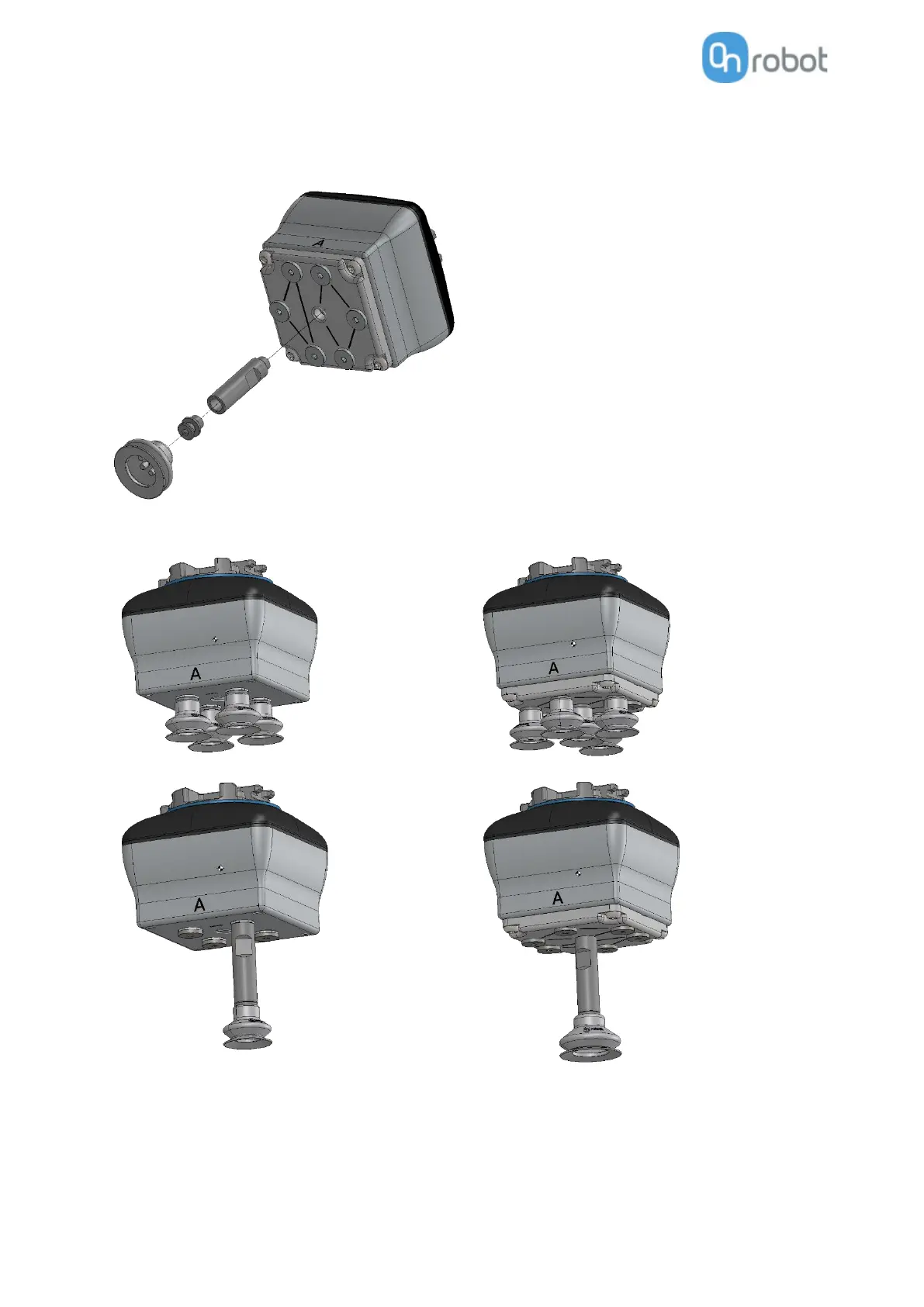

The Extension Pipe can be mounted in any of the holes by simply screwing it in and adding a fitting on top
as shown in the image below.
Below different mounting configurations with the provided attachments are shown.
Customized Adaptor Plates and Push-in Fittings
The design of the VGC10 is meant to facilitate the users to make their own adaptor plates to create
different kinds of configurations. The dimensions needed to create a customized adaptor plate are shown
in the image below.
