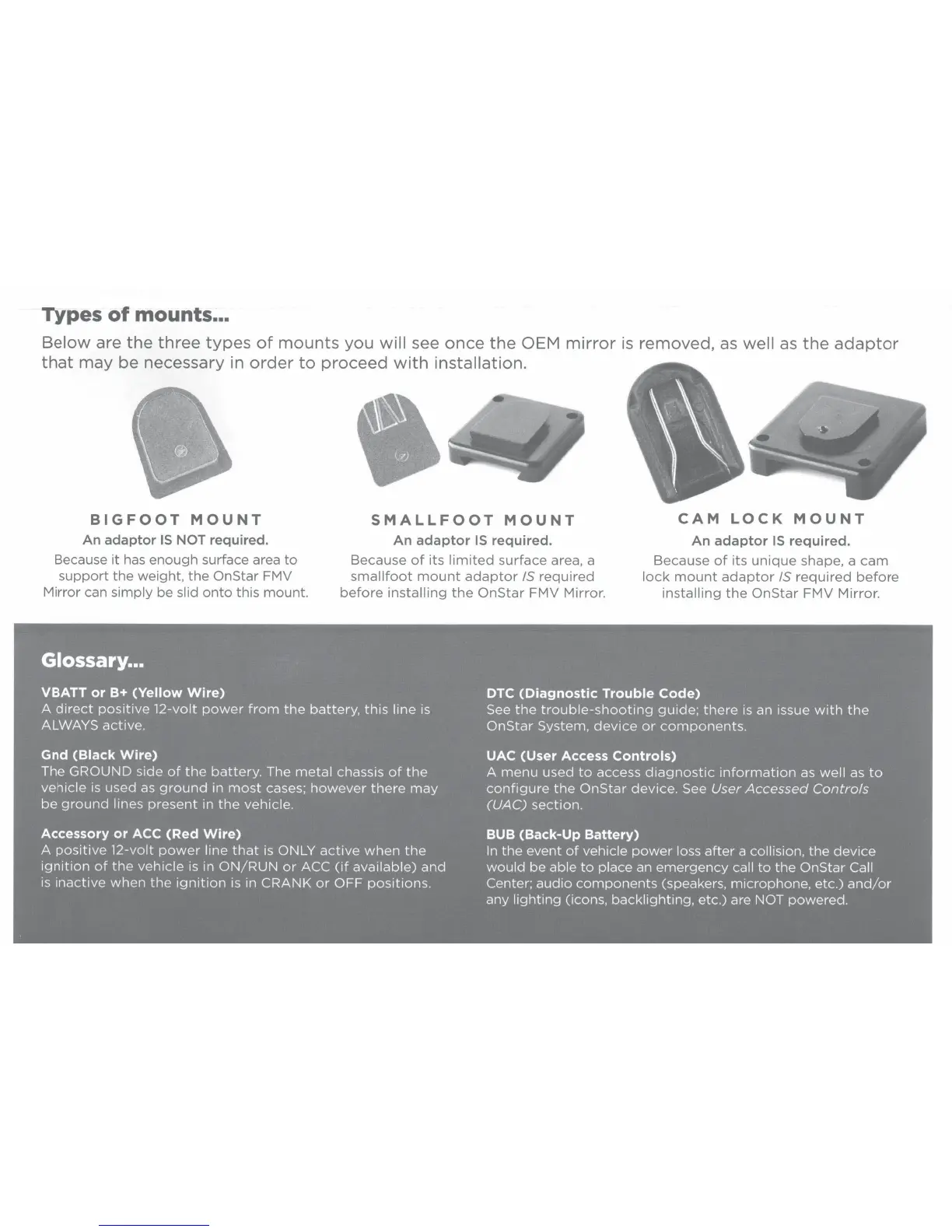

OnStar FMV Mirror - Types of Mounts

Types
of
mounts ...
Below
are
the
three
types
of
mounts
you
will
see
once
the
OEM
mirror
is
removed,
as
well
as
the
adaptor
that
may
be
necessary in
order
to
proceed
with
installation.
BIGFOOT
MOUNT
An
adaptor
IS
NOT
required.
SMALLFOOT
MOUNT
An
adaptor
IS
required.
CAM
LOCK
MOUNT
An adaptor
IS
required.
Because
it
has
enough
surface area
to
support
the
weight,
the
OnStar
FMV
Mirror
can
simply
be
slid
onto
this
mount.
Because
of
its
limited
surface
area, a
smallfoot
mount
adaptor
IS
required
before
installing
the
OnStar
FMV
Mirror.
Because
of
its
unique
shape, a
cam
lock
mount
adaptor
IS
required
before
installing
the
OnStar
FMV
Mirror.
Glossary
...
VBATT
orB+
(Yellow
Wire)
A
direct
positive
12-volt
power
from
the
battery,
this
line
is
ALWAYS active.
Gnd
(Black
Wire)
The
GROUND
side
of
the
battery.
The
metal
chassis
of
the
vehicle
is
used
as
ground
in
most
cases;
however
there
may
be
ground
lines
present
in
the
vehicle.
Accessory or
ACC
(Red
Wire)
A
positive
12-volt
power
line
that
is
ONLY
active
when
the
ignition
of
the
vehicle
is
in
ON/RUN
or
ACC
(if
available)
and
is
inactive
when
the
ignition
is
in
CRANK
or
OFF
positions.
DTC (Diagnostic
Trouble
Code)
See
the
trouble-shooting
guide;
there
is
an issue
with
the
OnStar
System,
device
or
components.
UAC (User Access
Controls)
A
menu
used
to
access
diagnostic
information
as
well
as
to
configure
the
OnStar
device.
See
User
Accessed
Controls
(UAC)
section.
BUB
(Back-Up Battery)
In
the
event
of
vehicle
power
loss
after
a
collision,
the
device
would
be
able
to
place
an
emergency
call
to
the
OnStar
Call
Center;
audio
components
(speakers,
microphone,
etc.)
and/or
any
lighting
(icons,
backlighting,
etc.) are
NOT
powered.
