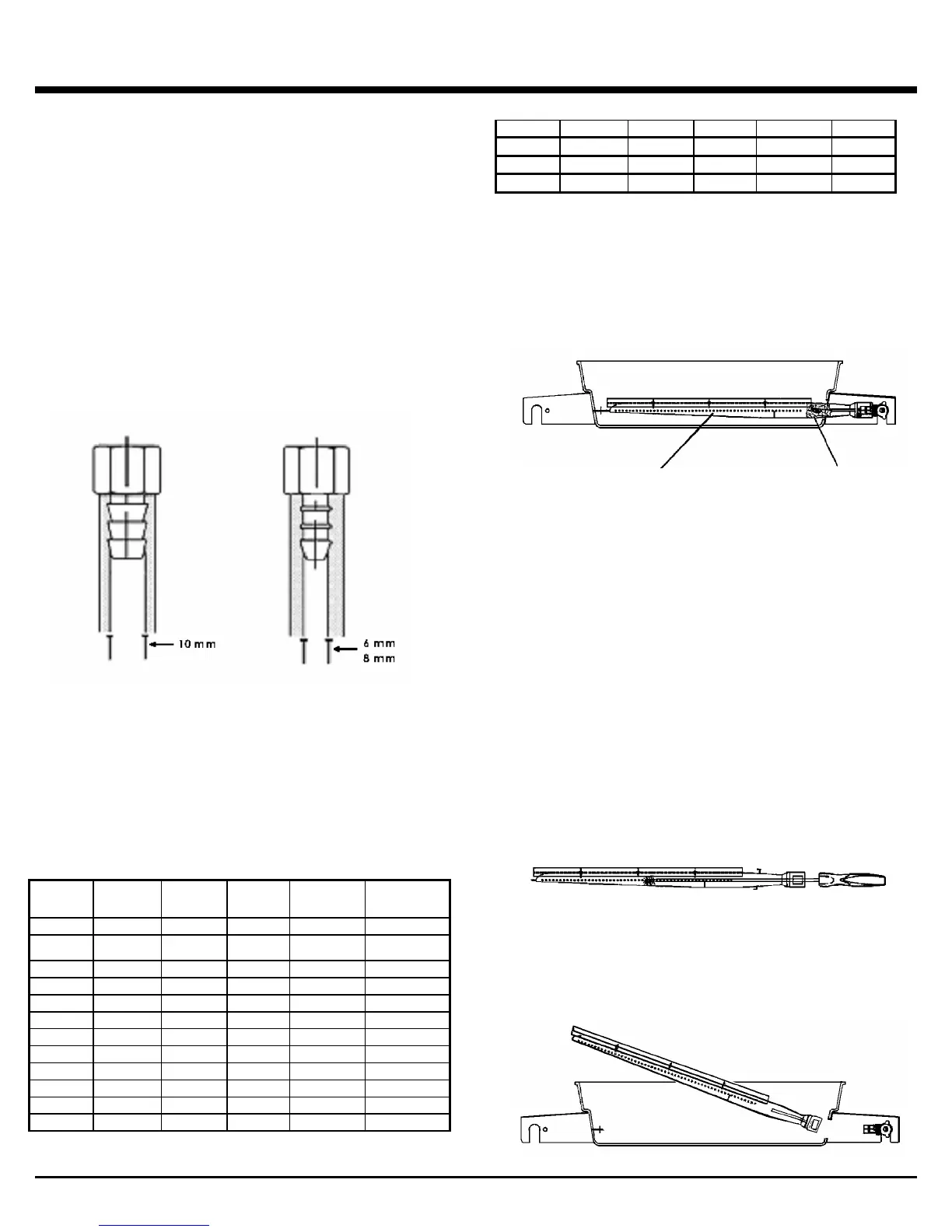

REGULATOR/LP GAS HOSE VENTURI TUBE
REGULATOR
This appliance must be fitted with a regulator complying
with the local/national standards and/or norms with a
nominal outlet pressure of:
CATEGORY I
3+(28-30/37
) Propane 37 mbar.
Butane 28-30 mbar.
CATEGORY I
3B/P(30)
Propane/Butane 30 mbar.
3
NEVER use an unregulated gas supply.
LP GAS HOSE
This appliance must be fitted with an LP Gas hose
complying with local/national standards and/or norms.
The LP Gas hose connecting the appliance to the gas
container should be 600mm long.
Position the LP Gas hose away from any hot surface,
including the bottom of the barbecue.
Be sure the LP Gas hose is not subjected to twisting.
Inspect the LP Gas hose when replacing the gas cylinder
or once per year whichever is more frequent. If the LP Gas
hose is cracked, cut, abraded or damaged in any way, the
appliance must not be operated.
The LP Gas hose must be replaced if damaged and when
national conditions require it. Contact your dealer for
replacement.
SPECIFICATIONS
FOR USE IN CATEGORY SUPPLY
PRESSURE
BUTANE
SUPPLY
PRESSURE
PROPANE
REGULATOR
MUST COMPLY
WITH
LP GAS HOSE
MUST COMPLY
WITH
GB I
3+(28-30/37)
28-30 mbar 37 mbar BS3016 BS3212/2/8
FR I
3+(28-30/37)
28-30 mbar 37 mbar NF M 88765 OR
NF M 88776
NF D 36107
BE I
3+(28-30/37)
28-30 mbar 37 mbar
LU I
3B/P(30)
30 mbar 30 mbar
NL I
3B/P(30)
30 mbar 30 mbar NEN 5654
DK I
3B/P(30)
30 mbar 30 mbar
ES I
3+(28-30/37)
28-30 mbar 37 mbar
PT I
3+(28-30/37)
28-30 mbar 37 mbar
IT I
3+(28-30/37)
28-30 mbar 37 mbar
SE I
3B/P(30)
30 mbar 30 mbar
NO I
3B/P(30)
30 mbar 30 mbar
FI I
3B/P(30)
30 mbar 30 mbar
SPECIFICATIONS cont’d
CH I
3+(28-30/37)
28-30 mbar 37 mbar
IE I
3+(28-30/37)
28-30 mbar 37 mbar
IS I
3+(28-30/37)
28-30 mbar 37 mbar
GR I
3B/P(30)
30 mbar 30 mbar
• KEEP VENTURI TUBE CLEAN.
• Blockages caused by spiders insects and nests
can cause a flashback fire.
Although the barbecue might still light, the backed up gas
might also ignite and cause a fire around the venturi tubes
at the control panel or side burner.
VENTURI TUBE SPIDER WEB
• If a flashback fire occurs, turn off gas at the source
immediately
Inspect and clean the venturi tube if any of the
following symptoms occur:
1. You smell gas.
2. Your barbecue does not reach temperature.
3. Your barbecue heats unevenly.
4. The burners make popping noises.
INSPECTING & CLEANING VENTURI TUBE
1. Turn off gas at the source. i.e. the gas cylinder or
supply line for natural gas.
2. When barbecue is cool, push burner towards the valve
and lift the burner from the barbecue housing.
3. Clean the venturi tubes with a pipe cleaner or venturi
cleaning tool (Accessory #18280).
4. Lower the burner into position in the barbecue housing,
making sure that the venturi tube is correctly aligned
and fitted on the orifices, push against spring on valve
and fit in place.
