LIGHTING

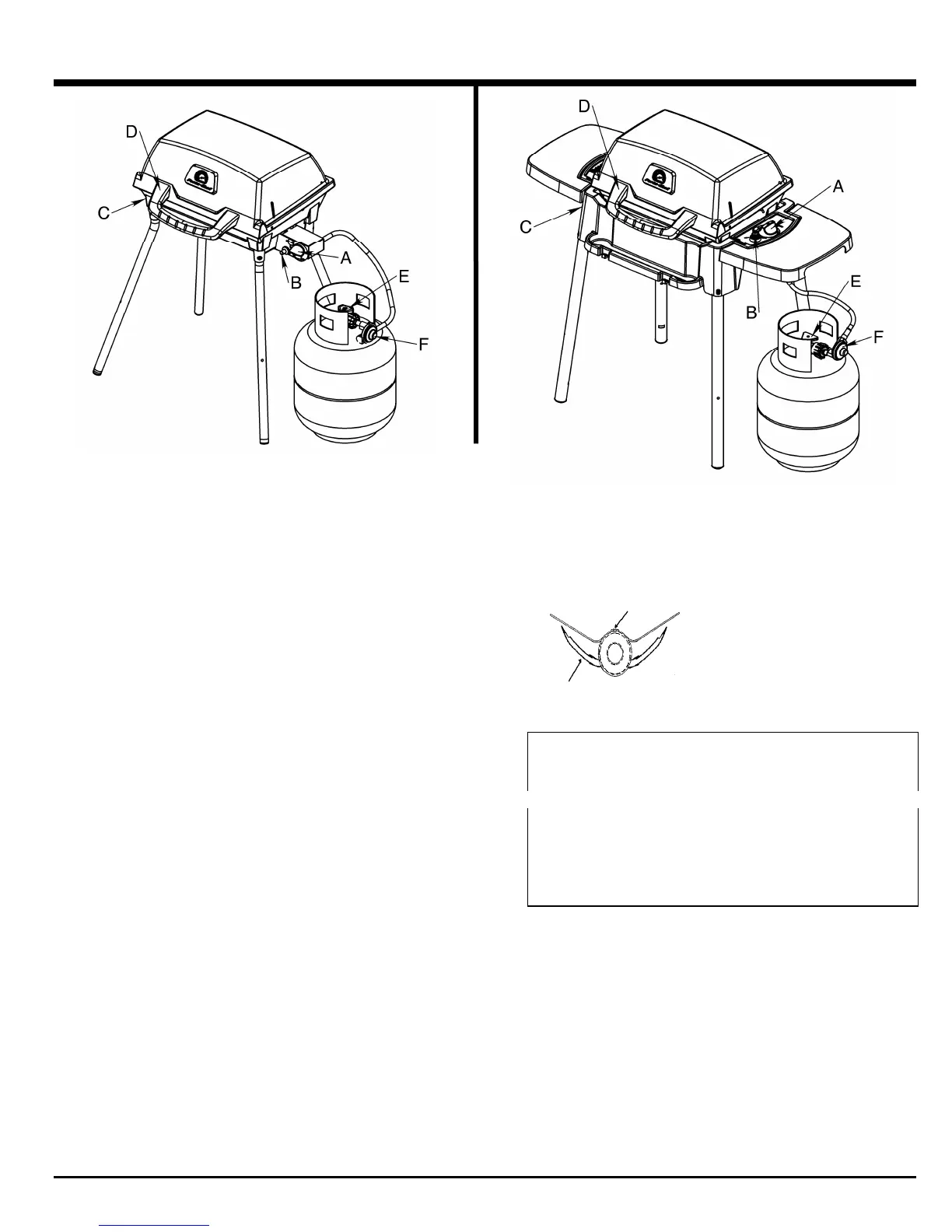

A. BURNER CONTROL D. HANDLE
B. IGNITOR E. CYLINDER VALVE
C. MANUAL LIGHTING HOLE F. REGULATOR
1. The appliance must be assembled as per the assembly
instructions.
2. Check that your gas cylinder is full and properly
connected to the regulator.
3. Check that there are no gas leaks in the gas supply
system. See Leak Testing.
4. Check that the venturi tube is properly located over the
gas valve orifice.
5. Check that Burner ignition wire is connected.
6. Read carefully all instructions contained on the
information plate attached to the barbecue.
7. WARNING: Open lid before lighting.
8. Set control knob to "OFF" and turn on the gas supply.
9. Push and turn control knob to "Hi".
Push the ignitor knob 3 or 4 times or match light.
Burner should ignite within 5 seconds.
Note: To light burner with a match follow steps 1
thru 8 above.
Insert lighted match through lighting hole located at the
bottom of the grill housing, near end of burner.
Push and turn right control knob to "Hi".
Burner should ignite within 5 seconds.
10. Caution - Check your barbecue after lighting.
BURNER
All the ports on the burner
should show a 2.5cm flame
on "Hi" setting.
CHECK FLAME
If any of the following symptoms occur there is
probably a blockage in the venturi tube. Shut off gas at
once and clean the venturi tube. See "Venturi Tube".
1. You smell gas.
2. If a flashback fire occurs.
3. Your barbecue heats unevenly.
4. The burners make popping noises.
IF BURNER DOES NOT IGNITE
1. Push and turn control knob to "OFF".
Wait 5 minutes, then try again with control knob set at
medium.
2. If burner will not light, consult "Trouble Shooting Guide".
If problem cannot be resolved, do not attempt to
operate the appliance; contact your dealer or approved
service centre.
SHUT DOWN
1. Turn off cylinder valve.
2. Turn control knob to "OFF".
To Next Page
