Onyx DX20 User Manual

5
081320 Rev. 1
______________________________________________________________________________________
MACHINE SPECIFICATIONS
______________________________________________________________________________________
SPECIFICATION
DX20
DX26
DX34
Voltage
24 Volt
24 Volt
24 Volt
Battery Capacity
100 Ah
200 Ah
200 Ah
Cleaning Width
20”
26”
34”
Squeegee Width
30”
42”
44”
Cleaning Efficiency
24,000 sqft/hr
28,000 sqft/hr
34,000 sqft/hr
Brush Motor
650W
2 x 650W
2 x 650W
Vacuum Motor
500W
500W
500W
Solution Capacity
18.5 gallons
25 gallons
25 gallons
Recovery Capacity
20 gallons
28 gallons
28 gallons
Weight
460lbs.
650lbs.
665lbs.
Dimensions (LxWxH)
49”x 20”x 47”
53”x26”x47”
53”x34”x47”
______________________________________________________________________________________

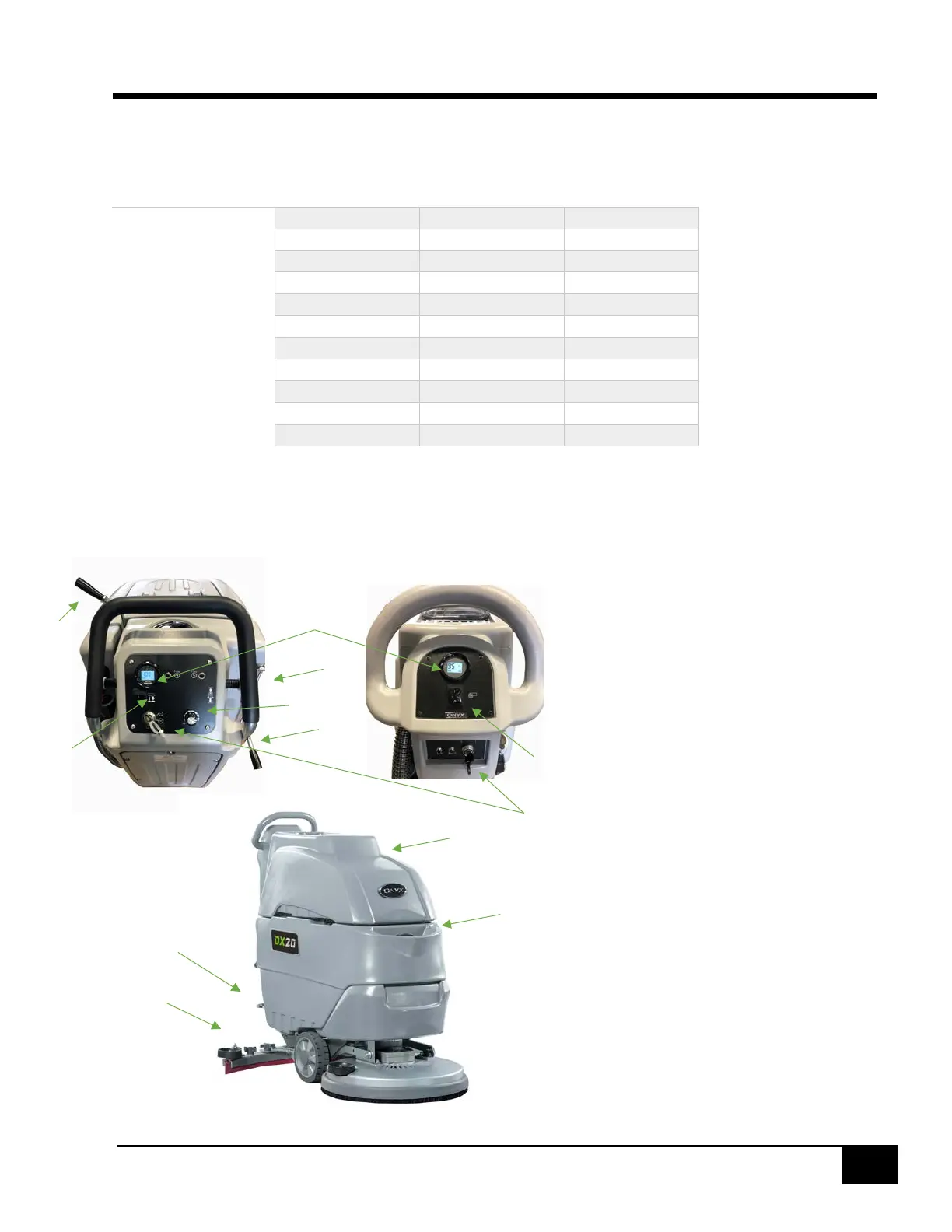

COMPONENTS & CONTROLS
______________________________________________________________________________________
1. KEYSWITCH
2. BATTERY INDICATOR
3. VACUUM SWITCH
4. BRUSH SWITCH
5. WATER CONTROL
6. SPEED CONTROL
7. SQUEEGEE PEDAL
8. FORWARD/REVERSE
9. SQUEEGEE
10. SOLUTION FILL
11. RECOVERY TANK
1.
1.
2.
1.
3.
1.
4.
1.
8.
1.
5.
1.
6.
1.
7.
1.
10.
1.
11.
1.
9.
1.
7.
1.
