WorkBee CNC Limit Switches & Wire Routing 9
2.2.2 Screw Driven - Gantry Wire Routing

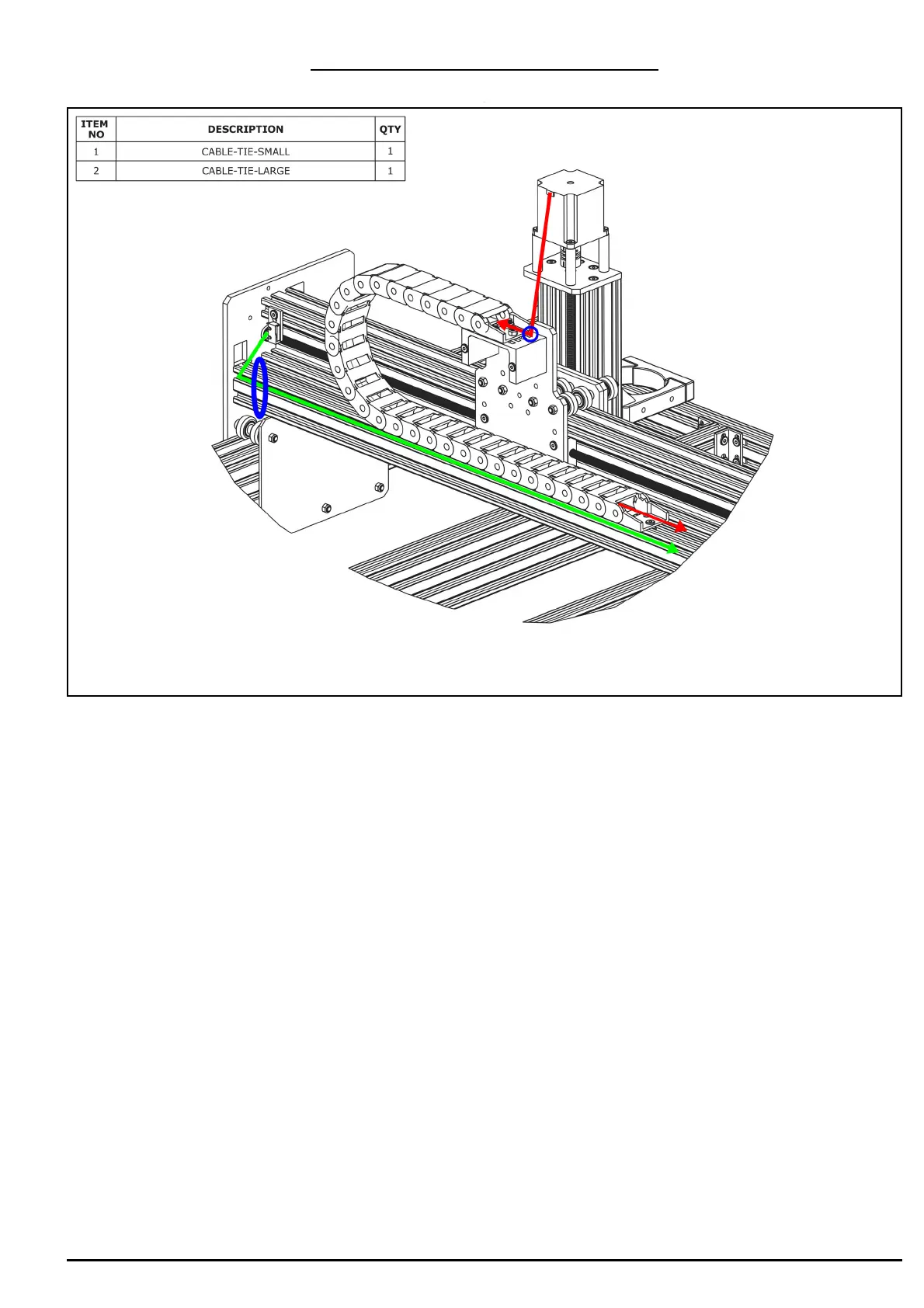

A. For the stepper motor wire that is inside the X-Drag-Chain, connect it to the pigtail on
Z-Axis stepper motor. Making sure there is enough slack for the full travel of the Z-
Axis, secure the wire to the X-Drag-Moving-End-Mount using a Cable-Tie-Small,
shown by the small blue circle above.
B. The lead on the X-Axis limit switch should be secured to the V-Slot-2040-750mm
using a Cable-Tie-Large at the position shown by the blue oval above. Then run the
lead along to the other end of V-Slot-2040-750mm - it can be tucked into one of the
slots.
